Measurement 9

WARNING: Incorrect handling of high-voltage components

Electric shock
Short circuit
Fire
Explosion
→ Only appropriately trained and authorised persons are permitted to work on high-voltage vehicles and components.

→ Required qualification: High voltage technician or high voltage expert.

→ Observe national requirements and legislation for this work.

→ Always use insulated tools, e.g. > VAS 6883 - Insulated Tool Set when working on these components.

→ Observe general warning notes for working on the high-voltage system.

> 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM

Preliminary work for measurement 9

(Check: High-voltage line from high-voltage distributor to voltage converter)

Release, tighten and remove high-voltage line (from high-voltage distributor to voltage converter).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

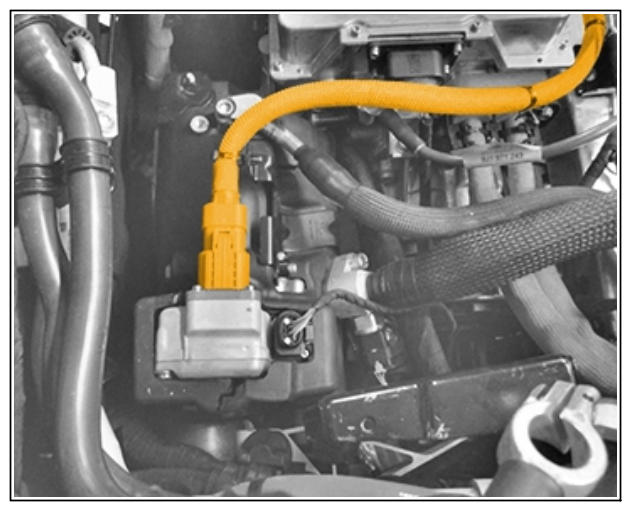

High-voltage line from high-voltage distributor to voltage converter

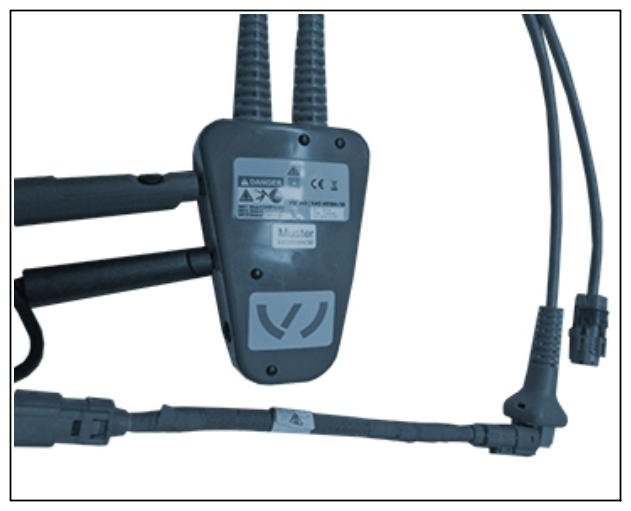

Connect high-voltage test adapter > VAS 6558/9-6A - High-voltage test adapter to high-voltage line (from high-voltage distributor to voltage converter). Leave the second connection open.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Measurement 9
Perform measurement 9.
1. 3.1 Setpoint value ≥ 1 GOhm
Evaluate measured result
1. 4.1 If the measured value is within the setpoint value range, continue with measurement 9.1 .
2. 4.2 If the measured value is outside of the setpoint value range, replace high-voltage line (from high-voltage distributor to voltage converter).
After replacing the high-voltage line, repeat measurement 3.

Preliminary work for measurement 9.1

(Check: Air-conditioning compressor, high-voltage line from voltage converter to air-conditioning compressor)
Remove bulkhead.
Release and disconnect high-voltage line (from voltage converter to air-conditioning compressor) at the voltage converter.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

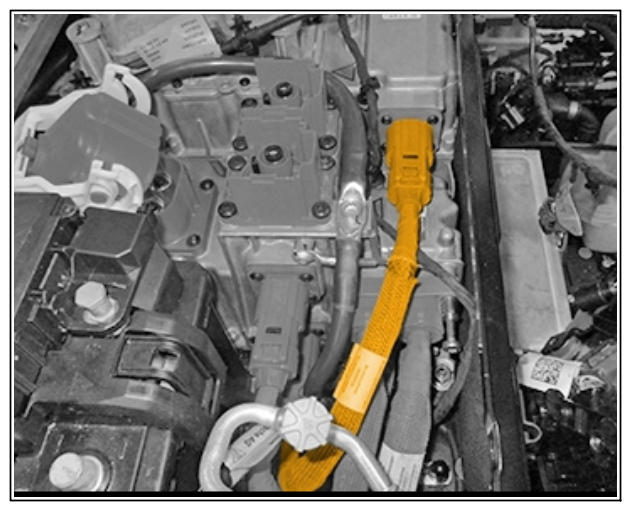

High-voltage line from voltage converter to air-conditioning compressor

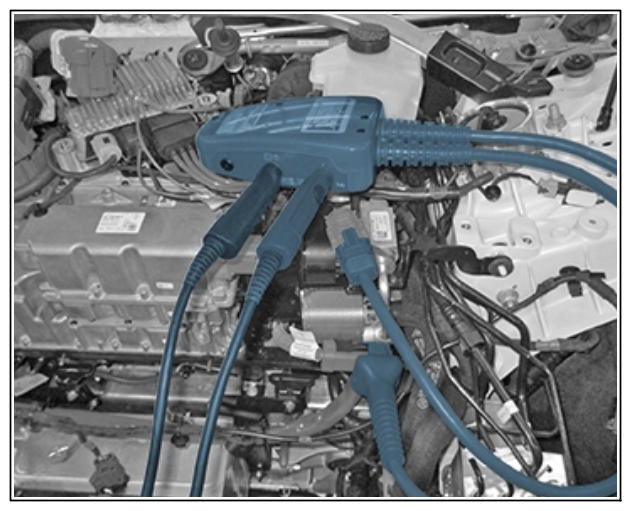

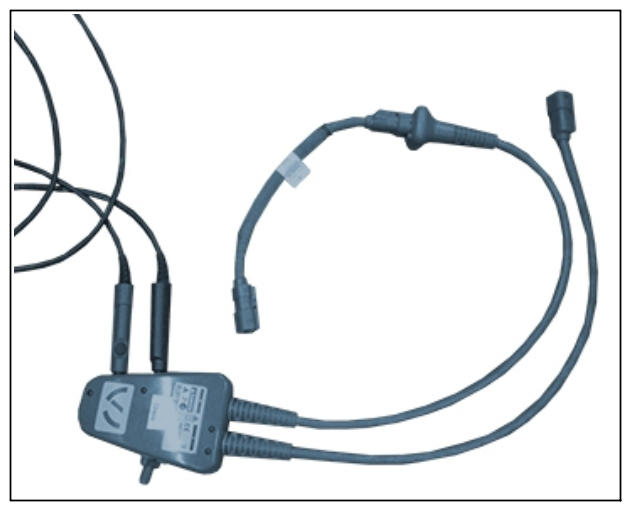

Connect > VAS 6558A/30 - high-voltage test adapter to high-voltage line (from voltage converter to air-conditioning compressor). Leave the second connection open.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Measurement 9.1
Perform measurement 9.1.
1. 8.1 Setpoint value ≥ 10 MOhm
The measurement must be repeated several times until a stable measured value is displayed.
Evaluate measured result
1. 9.1 If the measured value is within the setpoint value range, replace the voltage converter.
  After replacing the voltage converter, repeat measurement 3.
2. 9.2 If the measured value is outside of the setpoint value range, continue with measurement 9.2 .
Preliminary work for measurement 9.2

(Check: High-voltage line from voltage converter to air-conditioning compressor)
Release and disconnect high-voltage line (from voltage converter to air-conditioning compressor) at the air-conditioning compressor.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

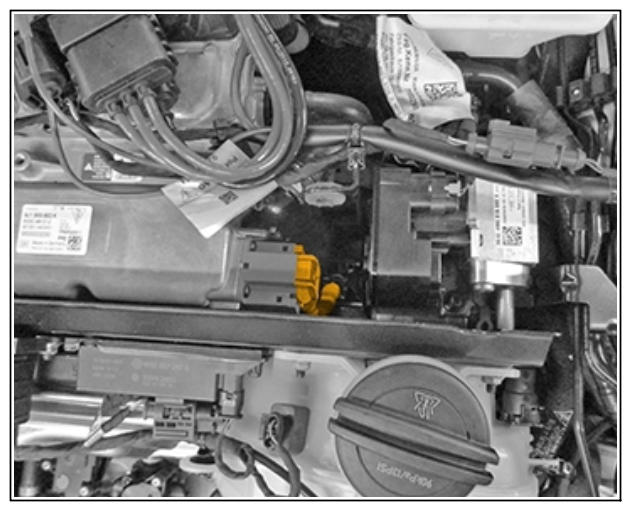

High-voltage line from voltage converter to air-conditioning compressor
Connect > VAS 6558A/30 - high-voltage test adapter to high-voltage line (from voltage converter to air-conditioning compressor). Leave the second connection open.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Measurement 9.2
Perform measurement 9.2.
1. 12.1 Setpoint value ≥ 1 GOhm
Evaluate measured result
1. 13.1 If the measured value is within the setpoint value range, replace the air-conditioning compressor.
  After replacing the air-conditioning compressor, repeat measurement 3.
2. 13.2 If the measured value is outside of the setpoint value range, replace high-voltage line (from voltage converter to air-conditioning compressor).

After replacing the high-voltage line, repeat measurement 3.
