Measurement 10

WARNING: Incorrect handling of high-voltage components

Electric shock
Short circuit
Fire
Explosion
→ Only appropriately trained and authorised persons are permitted to work on high-voltage vehicles and components.

→ Required qualification: High voltage technician or high voltage expert.

→ Observe national requirements and legislation for this work.

→ Always use insulated tools, e.g. > VAS 6883 - Insulated Tool Set when working on these components.

→ Observe general warning notes for working on the high-voltage system.

> 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM

Preliminary work for measurement 10

(Check: Right charging socket)

Release and disconnect high-voltage line (from high-voltage charger to right charging socket) at the high-voltage charger.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

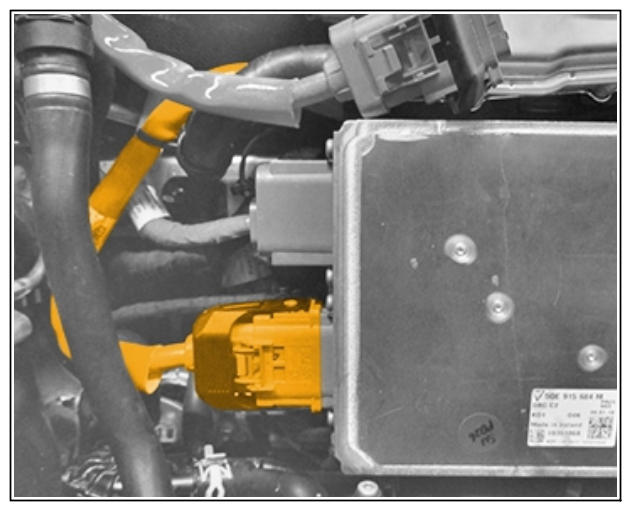

High-voltage line from high-voltage charger to right charging socket

Connect charging socket test adapter VAS 6558/10-2 (DC) to the right charging socket.

The special tool number of the test adapter can differ from country to country. (VAS 6558/10-2, VAS 6558/18A, VAS 6558/13A or VAS 6558/22 )

Country/region	Charging socket test adapter
RDW	VAS 6558/10-2 (DC)
USA	VAS 6558/18A (DC)
Japan	VAS 6558/13A (CHAdeMO)
China	VAS 6558/22

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

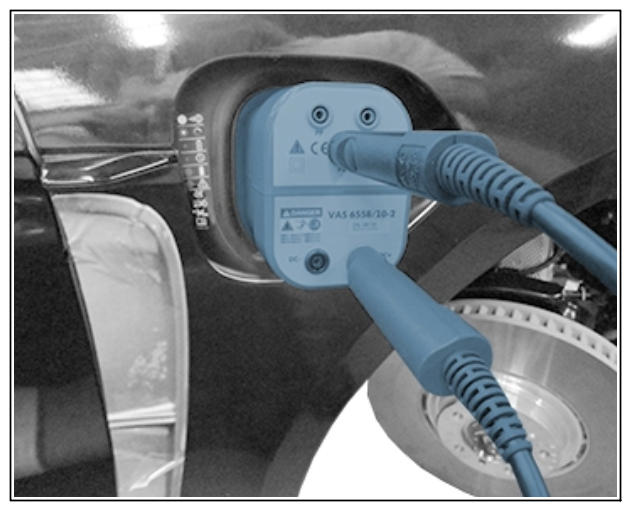

DC charging socket

Perform measurement 10.
1. 3.1 Setpoint value ≥ 1 GOhm
Evaluate measured result
1. 4.1 If the measured value is within the target range, continue with measurement 10.1 .
2. 4.2 If the measured value is outside the target range, replace right charging socket.
After replacing the right charging socket, repeat measurement 3.

Preliminary work for measurement 10.1

(Check: Left charging socket)
Release and disconnect high-voltage line (from high-voltage charger to left charging socket) at the high-voltage charger.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

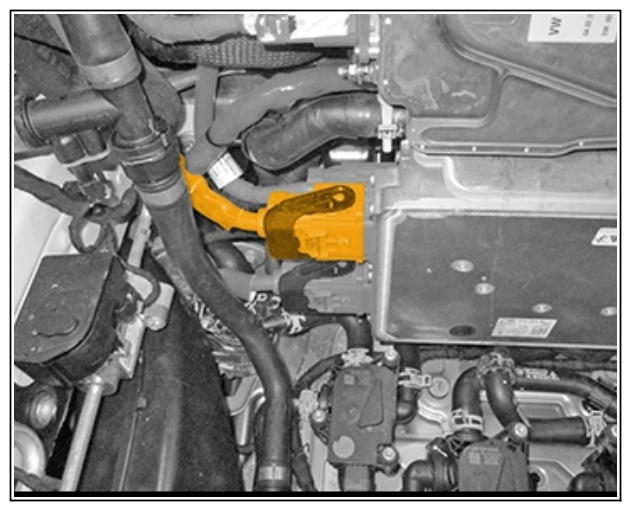

High-voltage line from high-voltage charger to left charging socket

Connect charging socket test adapter VAS 6558/10-1 (AC) to the left charging socket.

The special tool number of the test adapter can differ from country to country. (VAS 6558/10-1, VAS 6558/14A or VAS 6558/17A )

Country/region	Charging socket test adapter
RDW	VAS 6558/10-1 (AC)
USA	VAS 6558/14A (AC)
China	VAS 6558/17A (AC)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

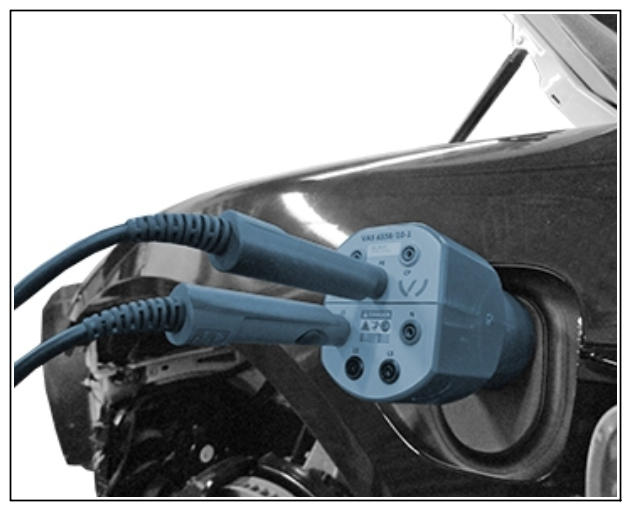

Left charging socket

Perform measurement 10.1.
1. 7.1 Setpoint value ≥ 1 GOhm
Evaluate measured result
1. 8.1 If the measured value is within the target tolerance, continue with measurement 10.2 .
2. 8.2 If the measured value is outside of the tolerance range, replace left charging socket.
After replacing the left charging socket, repeat measurement 3.

Preliminary work for measurement 10.2

(Check: High-voltage charger)
Connect high-voltage distributor line to high-voltage charger and lock.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

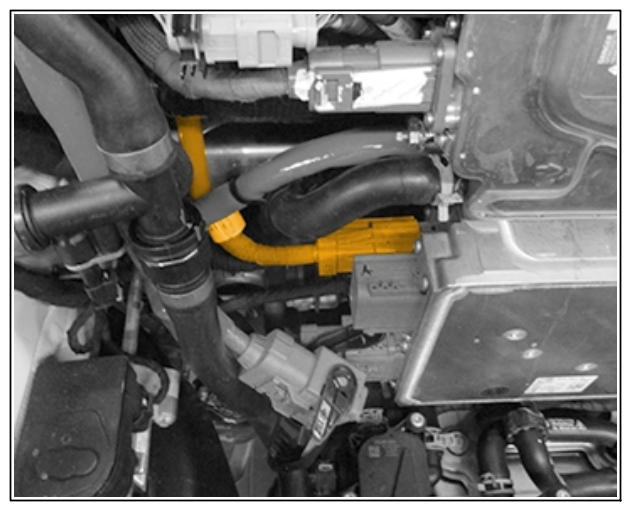

High-voltage distributor line to high-voltage charger

The high-voltage lines to the left and right charging sockets must not be plugged in.
Connect high-voltage distributor line to high-voltage battery and lock.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

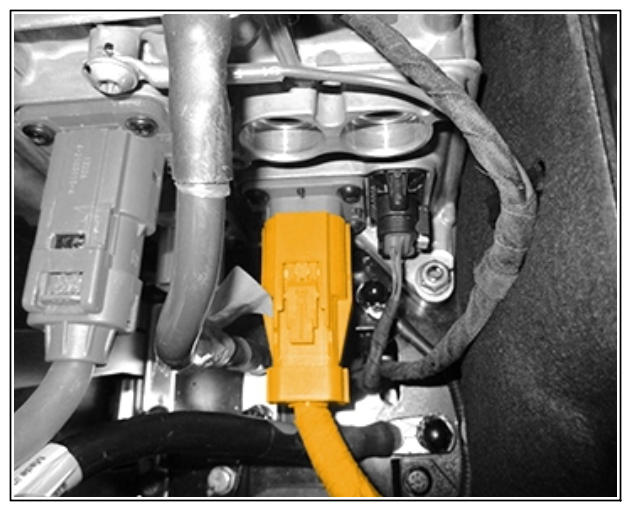

High-voltage distributor line to high-voltage charger
Connect high-voltage test adapter > VAS 6558/9-6A - High-voltage test adapter to high-voltage distributor (passenger compartment heater output). Leave the second connection open.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

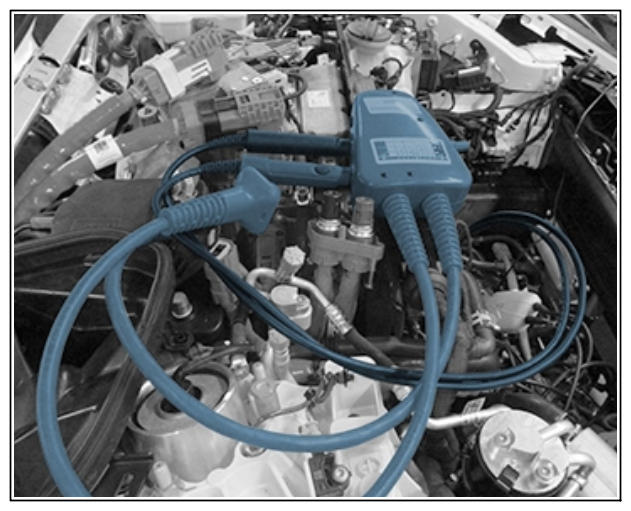

Measurement 10.2

Pay particular attention to:

Only the high-voltage line (from high-voltage distributor to high-voltage charger) and the > VAS 6558/9-6A - high-voltage test adapter may be connected to the high-voltage distributor. All other high-voltage connections on the high-voltage distributor must be disconnected and unoccupied.

The high-voltage lines to the left and right charging sockets must not be plugged in.
Perform measurement 10.2.
Setpoint value ≥ 1.1 MOhm
1. 12.1
Evaluate measured result
1. 13.1 If the measured value is within the tolerance range, contact Technical Support.
2. 13.2 If the measured value is outside of the setpoint value range, replace high-voltage charger.

After replacing the high-voltage charger, repeat measurement 3.
