Installing Pressure Sensor (Pt3)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

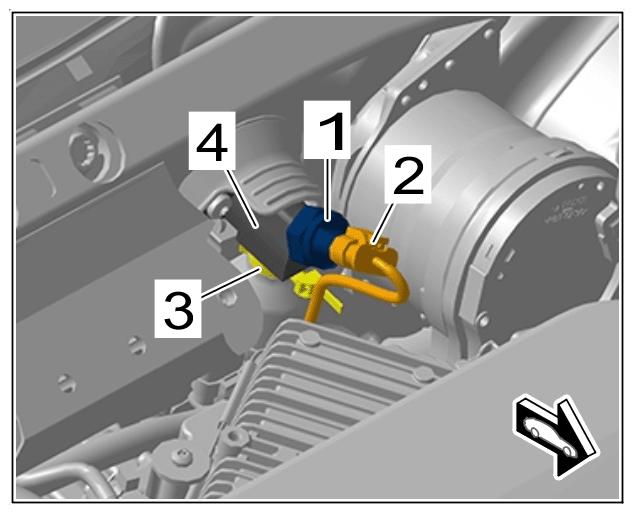

Pressure sensor (PT3)

1. 1.1 Replace O-ring on the pressure sensor -1-  and coat it with refrigerant oil.
2. 1.2 Screw in and tighten pressure sensor -1-  and counter at the connecting piece -4-  at the same time.

   > Tightening torque 10 Nm (7.5 ftlb.)

3. 1.3 Connect and lock electric plug connection -2-  .
4. 1.4 Fasten clip -3-  .
