Technical Values

Location	Description	Type	Basic value
Screws securing automatic transmission to electric motor	Screws, M10 x 45 - Item 1 to 8	Initial tightening	50 Nm (37 ftlb.)

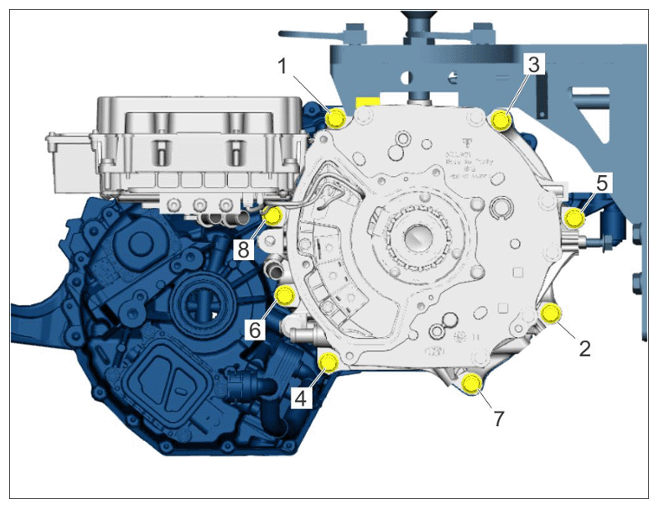

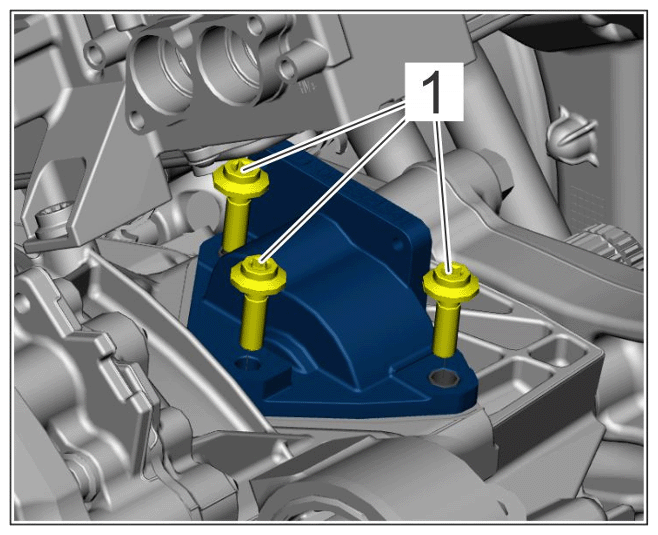

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Flange screws for automatic transmission
Screws securing automatic transmission to electric motor	Screws, M10 x 45 - Item 1 to 8	Torque angle	60 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Flange screws for automatic transmission
Selector support to molding	Screw, M5 x 16 - Item 4	Tightening torque	3 Nm (2 ftlb.)

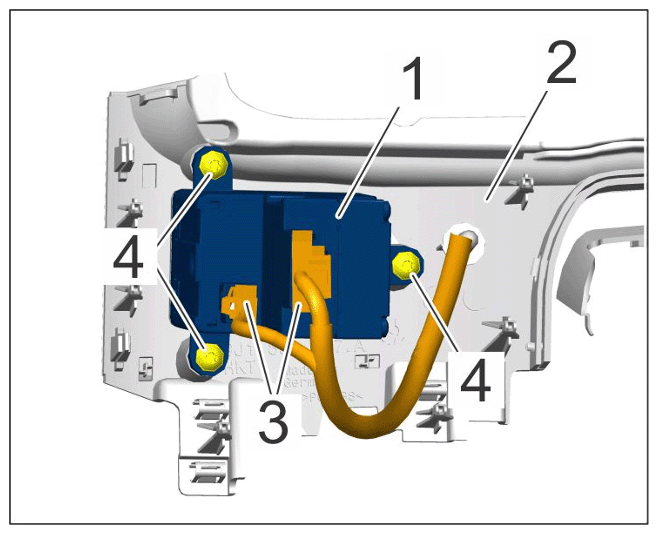

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Selector support mounting (reverse side of molding)
position sensor on transmission	Screws M5 - Item 2	Tightening torque	6 Nm (1.5 ftlb.)
speed sensor on transmission	Screws M6 - Item 4	Tightening torque	8 Nm (3 ftlb.)
Temperature sensor (Gear sump) at the transmission	Screws M6 - Item 6	Tightening torque	8 Nm (4.5 ftlb.)
Position sensor (bottom) on transmission	Screws M5 - Item 8	Tightening torque	6 Nm (4.5 ftlb.)
Transmission slide/cable to housing	Screws M6 - Item 2	Tightening torque	8 Nm (6 ftlb.)

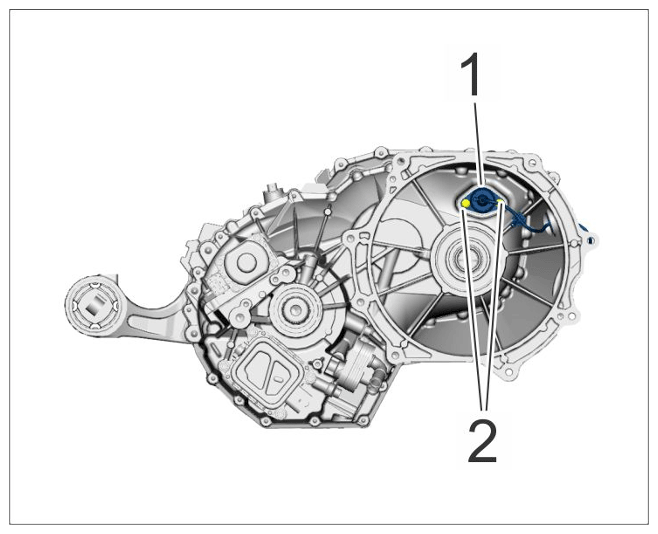

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Solenoid for transmission
Servo motor to automatic transmission	Screw, M8 x 20 - Item 2	Tightening torque	20 Nm (15 ftlb.)

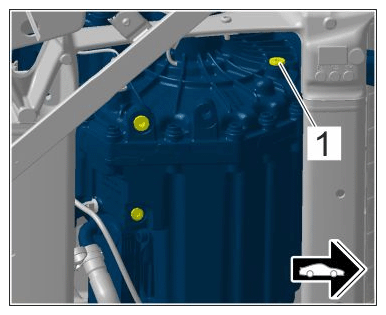

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on servo motor
Oil cooler to rear-axle final drive	Item 2: Screw, M8	Tightening torque	20 Nm (15 ftlb.)
Oil pump to rear-axle final drive	Item 2: Screw, M6	Tightening torque	8 Nm (6 ftlb.)
Rear bracket to rear-axle final drive	Item 2: Screw, M10 x 55 - replace screw	Initial tightening	50 Nm (37 ftlb.)
Rear bracket to rear-axle final drive	Item 2: Screw, M10 x 55 - replace screw	Final tightening torque angle	60 °
Front bracket to rear-axle final drive	Item 4: Screw, M12 x 100 - replace screw	Initial tightening	70 Nm (52 ftlb.)
Front bracket to rear-axle final drive	Item 4: Screw, M12 x 100 - replace screw	Final tightening torque angle	90 °
Rear bracket to electric motor on rear axle	Item 2: Screw, M10 x 55 - replace screw	Initial tightening	50 Nm (37 ftlb.)
Rear bracket to electric motor on rear axle	Item 2: Screw, M10 x 55 - replace screw	Final tightening torque angle	60 °
Rear axle damper	Item 1: Screw, M6 x 52 - Replace screw	Initial tightening	8 Nm (6 ftlb.)
Rear-axle damper	Item 1: Screw, M5 x 52 - replace screw	Final tightening torque angle	90 °
Front left bracket to rear final drive	Item 2: Screw, M12 x 75 - replace	Initial tightening	70 Nm (52 ftlb.)
Front left bracket to rear final drive	Item 2: Screw, M12 x 75 - replace	Final tightening torque angle	90 °
Front left bracket to rear final drive	Item 3: Screw, M10 x 80 - replace	Initial tightening	60 Nm (44 ftlb.)
Front left bracket to rear final drive	Item 3: Screw, M10 x 80 - replace	Final tightening torque angle	90 °
Front mounting saddle to bracket on body	Item 1: Screw, M10 x 40 - replace screw	Initial tightening	50 Nm (37 ftlb.)
Front mounting saddle to bracket on body	Item 1: Screw, M10 x 40 - replace screw	Final tightening torque angle	60 °
Rear mounting saddle to rear final drive bracket	Item 3: Screw, M10 x 40 - replace screw	Initial tightening	50 Nm (37 ftlb.)
Rear mounting saddle to rear final drive bracket	Item 3: Screw, M10 x 40 - replace screw	Final tightening torque angle	60 °
Rear mounting saddle to rear final drive bracket	Item 4: Screw, M10 x 50 - replace screw	Initial tightening	50 Nm (37 ftlb.)
Rear mounting saddle to rear final drive bracket	Item 4: Screw, M10 x 50 - replace screw	Final tightening torque angle	60 °
Front unit mount to subframe	Item 4: M12 nut - replace	Initial tightening	70 Nm (52 ftlb.)
Front unit mount to subframe	Item 4: M12 nut - replace	Final tightening torque angle	90 °
Rear unit mount to subframe	Item 5: Screw, M14 x 90 - replace	Tightening torque	160 Nm (118 ftlb.)
Cable holder to unit mounting saddle	Tapping screw, 5 x 30 - Item 7	Tightening torque	2 Nm (1.5 ftlb.)
Front axle damper	Item 1: Screw, M6 x 32 - replace	Initial tightening:	8 Nm (6 ftlb.)
Front axle damper	Item 1: Screw, M6 x 32 - replace	Final tightening torque angle	40 °
Rear drivetrain mount to side section	Item 2: Screw, M8 - replace	Initial tightening	20 Nm (15 ftlb.)
Rear drivetrain mount to side section	Item 2: Screw, M8 - replace	Final tightening torque angle	45 °
Rear bracket to front-axle final drive	Item 3: Screw, M10 x 44	Tightening torque	55 Nm (41 ftlb.)
Right bracket to front-axle final drive	Item 2: Screw, M10 x 44	Tightening torque	55 Nm (41 ftlb.)
Left bracket on electric motor for front axle	Item 2: Screw, M10 x 95	Tightening torque	55 Nm (41 ftlb.)
Oil filler screw on rear axle differential	Replace	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Oil filler screw on rear axle differential
Oil drain plug on rear axle differential	Replace	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Oil drain plug on rear axle differential
Oil change quantity for rear axle differential		Filling capacity	2.55 Liter
Oil change quantity for front-axle gear	Part number of front-axle gear with index A	Filling capacity	800 ml
Oil change quantity for front-axle gear	Part number of front-axle gear from index B	Filling capacity	730 ml
Oil filler screw and oil drain plug on front-axle gear	replace	Initial tightening	9 Nm (6.5 ftlb.)

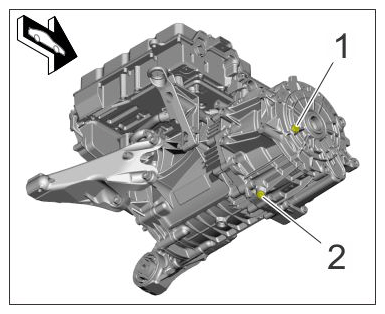

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Oil filler screw and oil drain plug on front-axle gear
Oil filler screw and oil drain plug on front-axle gear	replace	Torque angle	45 Degree
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Oil filler screw and oil drain plug on front-axle gear
Servo motor for rear-differential lock on automatic transmission	Screw, M6 - Item 1	Tightening torque	8 Nm (6 ftlb.)

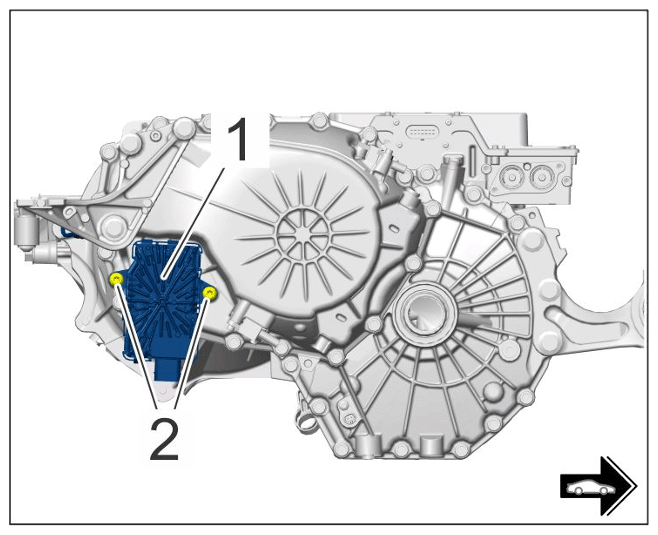

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Servo motor for rear-differential lock
Adapter to housing	Screw, M6 x 35 Item 1	Tightening torque	8 Nm (6 ftlb.)

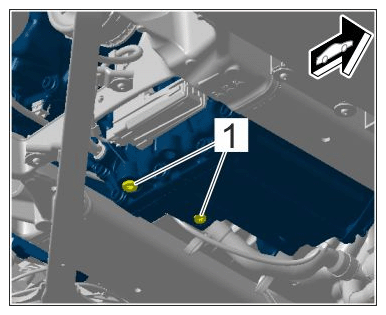

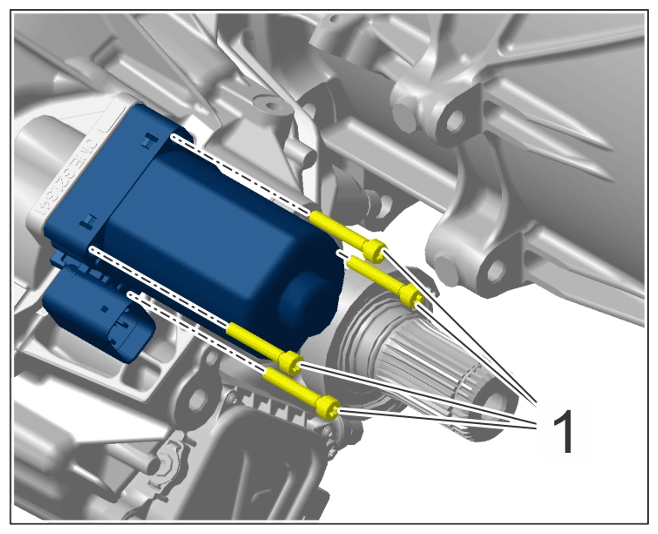

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adapter for servo motor
Adapter to housing	Screw, M6 x 35 Item 1	Torque angle	65 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adapter for servo motor
