Unit Mounts

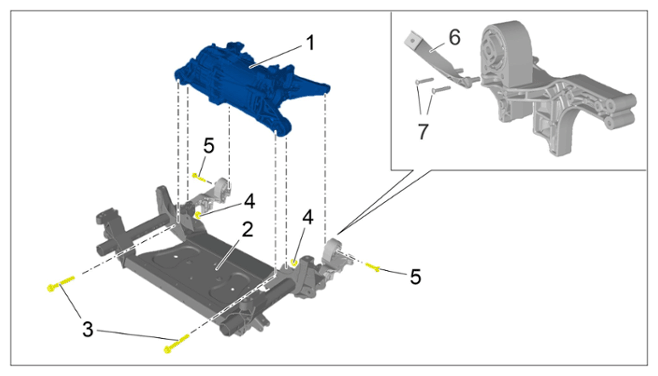

Fig 1: Front Axle Unit Mounts Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unit mounts for front axle

1	Front final drive
2	Subframe
3	Screws, M12 x 100 - front unit mount
4	M12 nut - front unit mount > Initial tightening 70 Nm (52 ftlb.) -4- > Final tightening torque angle 90 ° -4-
5	Screw, M14 x 90 - rear unit mount > Tightening torque 160 Nm (118 ftlb.) -5-
6	Cable holder
7	Tapping screw, 5 x 30 > Tightening torque 2 Nm (1.5 ftlb.) -7-
