Rear Bracket On Front-Axle Final Drive

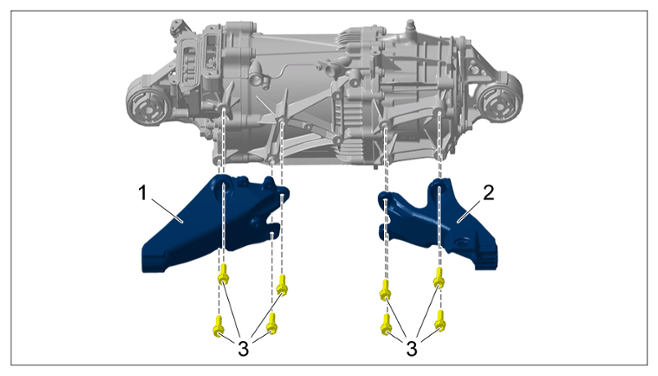

Fig 1: Front Final Drive Bracket Components Location With Torque Specification (Left And Right)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket for front final drive, left and right

1	Rear left bracket for front-axle final drive
2	Rear right bracket for front-axle final drive
3	Screws, M10 x 44 - rear bracket > Tightening torque 55 Nm (41 ftlb.)
