3X Power Transmission - General 2.0L -- Y1A - TAYCAN (Y1A)
>>
WM, 3X00IN Technical Values - Group 3
>>
Technical Values - Group 39
>>
Unit Mounts, Front Final Drive Bracket
>>
Front Right Bracket
Front Right Bracket

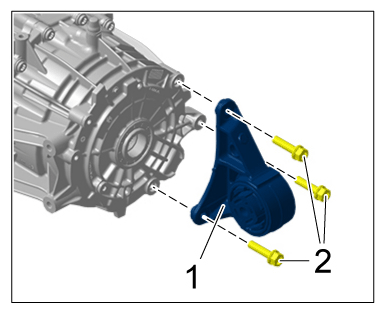

Fig 1: Front-Axle Final Drive Bracket Components Location With Torque Specification (Right)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Bracket for front-axle final drive, right
1
Bracket for front-axle final drive, right
2
Screws, M10 x 44 - right bracket >
Tightening torque 55 Nm (41 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
