3X Power Transmission - General 2.0L -- Y1A - TAYCAN (Y1A)
>>
WM, 3X00IN Technical Values - Group 3
>>
Technical Values - Group 39
>>
Unit Mounts, Front Final Drive Bracket
>>
Front Left Bracket
Front Left Bracket

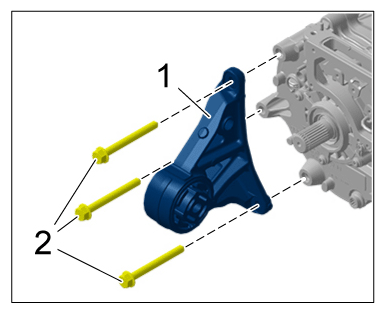

Fig 1: Front Axle Electric Motor Bracket Components Location With Torque Specification (Left)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Bracket for electric motor for front axle, left
1
Bracket for electric motor for front axle, left
2
Screws, M10 x 95 - left bracket >
Tightening torque 55 Nm (41 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
