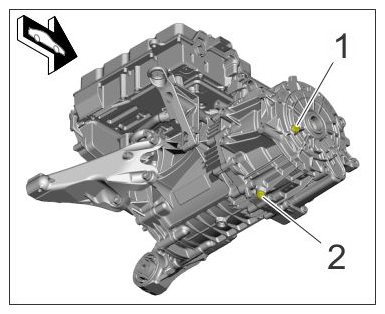

Oil Filler Screw And Oil Drain Plug On Front-Axle Differential
Information
A different procedure must be used for filling oil depending on the spare part number index.

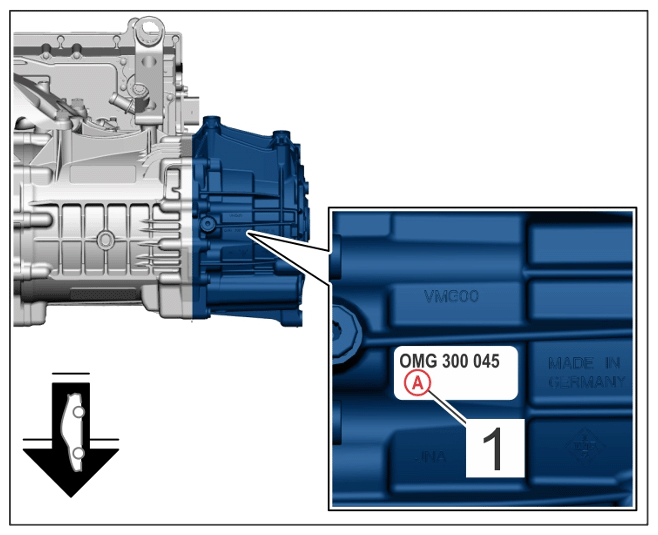

Part number on final drive
- If the part number index -1- is A, the prescribed quantity of oil must be filled .
- If the part number index -1- is B or newer, fill in oil until oil emerges at the lower edge of the oil filler bore .
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Oil change quantity for front-axle gear | Part number of front-axle gear with index A | Filling capacity | 800 ml | |
| Oil change quantity for front-axle gear | Part number of front-axle gear from index B | Filling capacity | 730 ml | |
| Oil filler screw and oil drain plug on front-axle gear | replace | Initial tightening | 9 Nm (6.5 ftlb.) | |
|
Oil filler screw and oil drain plug on front-axle gear |
||||
| Oil filler screw and oil drain plug on front-axle gear | replace | Torque angle | 45 Degree | |
|
Oil filler screw and oil drain plug on front-axle gear |
||||
