Unit Mounts On Rear Axle

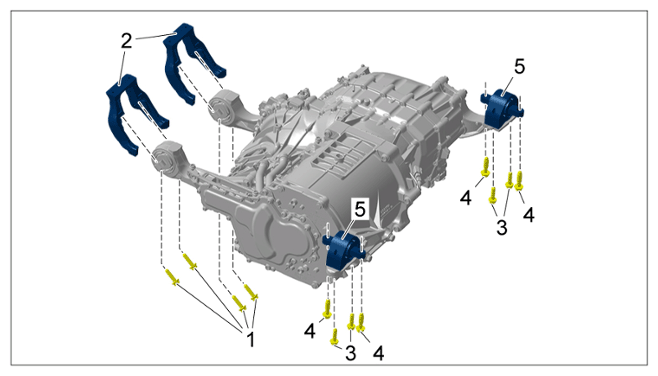

Fig 1: Rear Axle Unit Mounts Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unit mounts on rear axle

1	Screw, M10 x 40 for front bracket > Initial tightening 50 Nm (37 ftlb.) > Final tightening torque angle 60 °
2	Bracket on body
3	Screws, M10 x 40 for mounting saddle on rear bracket > Initial tightening 50 Nm (37 ftlb.) > Final tightening torque angle 60 °
4	Screw, M10 x 50 for rear mounting saddle to body > Initial tightening 50 Nm (37 ftlb.) > Final tightening torque angle 60 °
5	Rear mounting saddle
