Front Bracket With Transmission Shaft

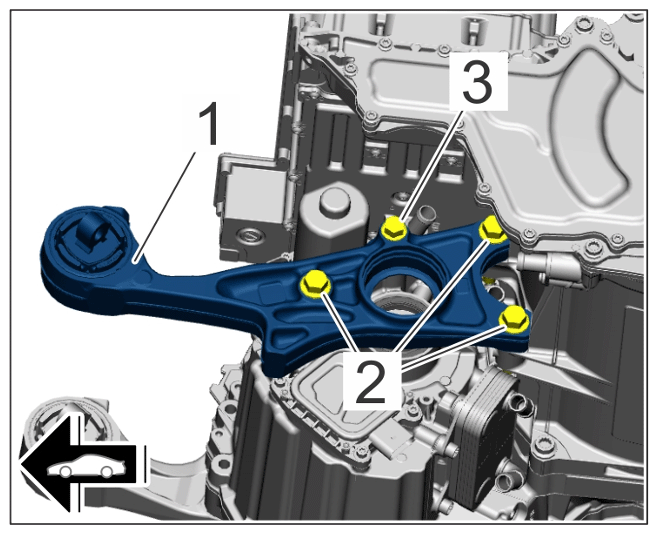

Fig 1: Front Left Bracket For Rear-Axle Final Drive Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front left bracket for rear-axle final drive

1	Bracket with front left shaft on rear-axle final drive
2	Screw, M12 x 75 > Initial tightening 70 Nm (52 ftlb.) -2- > Final tightening torque angle 90 ° -2-
3	Screw, M10 x 80 > Initial tightening 60 Nm (44 ftlb.) -3- > Final tightening torque angle 90 ° -3-
