Automatic Transmission, Actuator, Housing
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

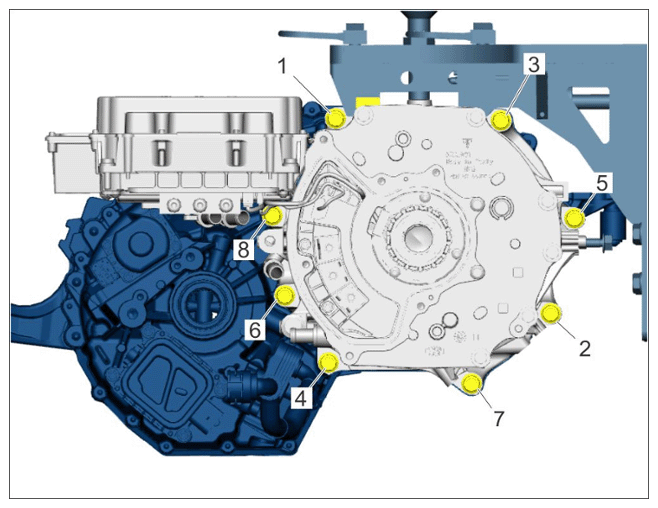

| Screws securing automatic transmission to electric motor | Screws, M10 x 45 - Item 1 to 8 | Initial tightening | 50 Nm (37 ftlb.) | |
|
Flange screws for automatic transmission |
||||
| Screws securing automatic transmission to electric motor | Screws, M10 x 45 - Item 1 to 8 | Torque angle | 60 ° | |
|
Flange screws for automatic transmission |
||||
