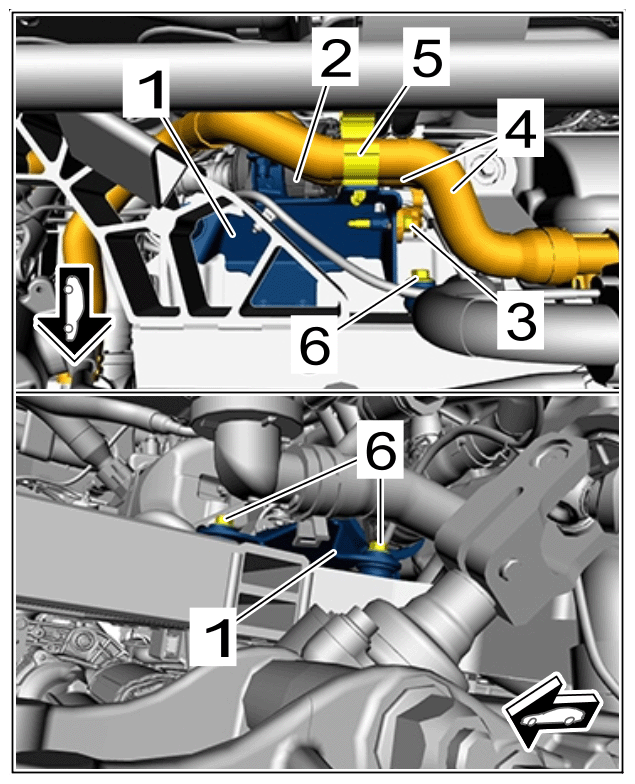

| Coolant pump holder |
Item 6/Screw, M6 x 40 |
Tightening torque |
8 Nm (6 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Holder with coolant pump (P2) |
|
|
|
|
| Holder for coolant hose to coolant pump holder |
Item 3/M6 screw |
Tightening torque |
8 Nm (6 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Holder with coolant pump (P2) |
|
|
|
|
