Loosening Friction Element Welded Joints (Countersunk Head Friction Element)

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The following description is intended only as a guide. A description of the steps involved and the various areas of application can be found in the operating instructions provided with the respective device.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

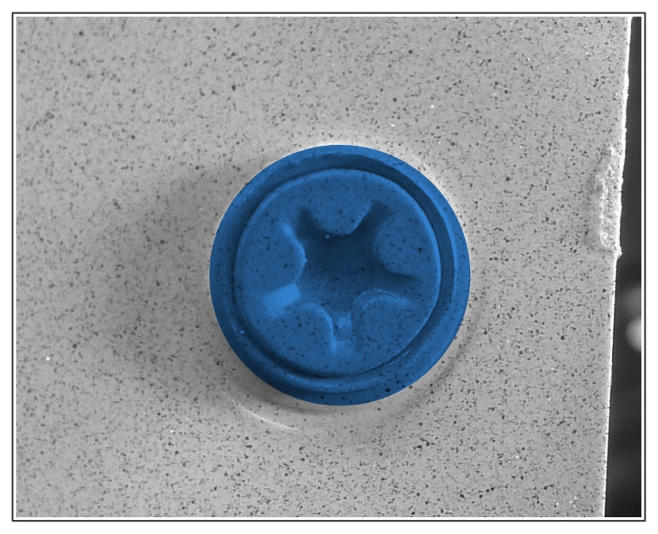

Countersunk head friction element

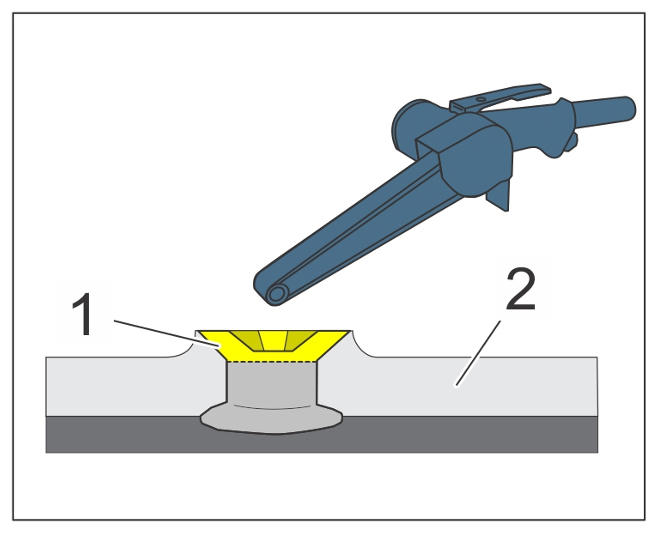

Grind off friction element at the top -1- until the cover plate -2- can be lifted off.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Grinding off friction element

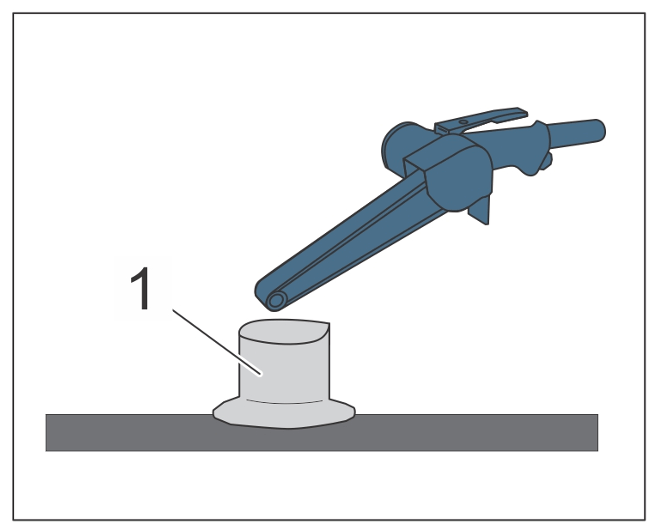

Grind off the remaining element foot -1- of the friction element.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Grinding off element foot
