Making Ground Connection Using A Rivet Nut

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

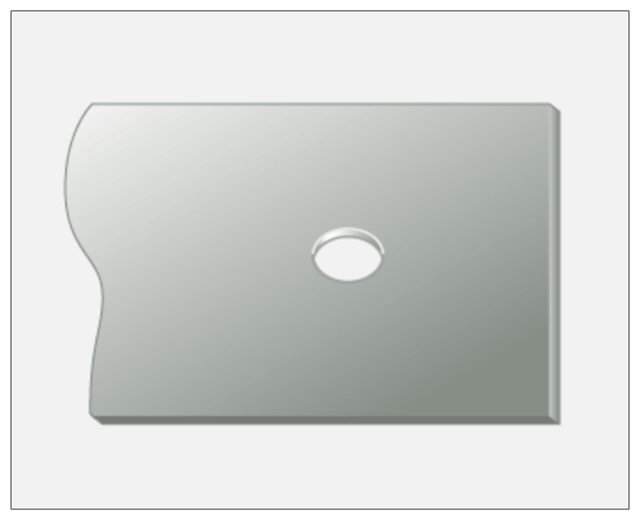

  1. Drill a hole. > Diameter 4 mm
    G15563693Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drilling hole

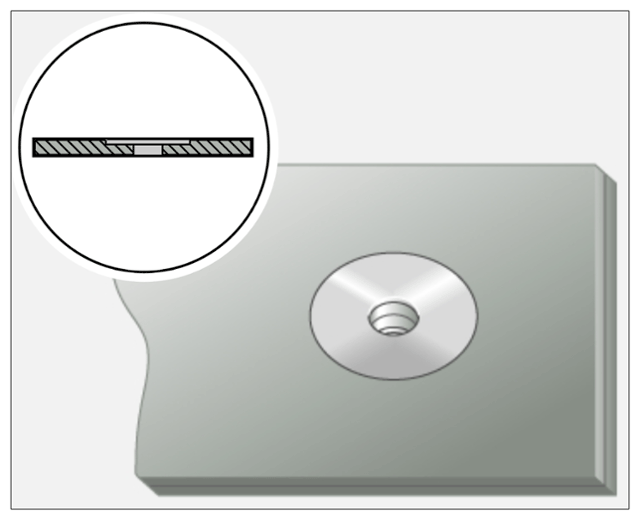

  2. Remove dirt and primer using an end brush > 9399/3 - end brush  .
    G15563694Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing primer

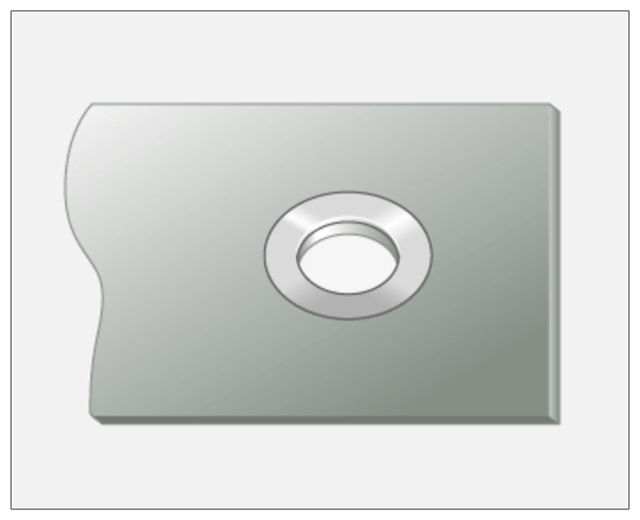

  3. Drill out the bore. > Diameter 11 mm
    G15563695Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drilling out bore

  4. De-burr the bore on both sides.

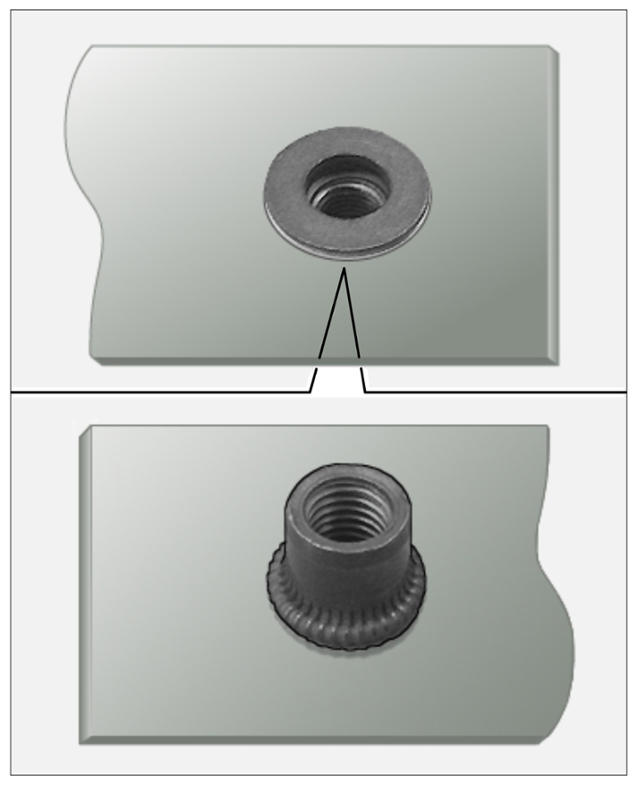

  5. Fit and tighten blind rivet nut. > BLIND RIVET NUT 999.500.196.01  > V.A.G 1765C - Pop Rivet Nut Pliers
    G15563696Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tightening blind rivets

  6. Screw on components using a countersunk screw. > COUNTERSUNK SCREW 999.073.549.01
  7. Tighten threaded joint to the specified torque. > Tightening torque 15 Nm (11 ftlb.)
