Technical Values

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Location	Des...	Type	Basic val...	Toleranc...
Screw,		torque	6 Nm (4.5 ftlb.)	+/- 1 Nm (0.5 ftlb.)
pre-drilled bore	dimension X	diameter	4.0 mm

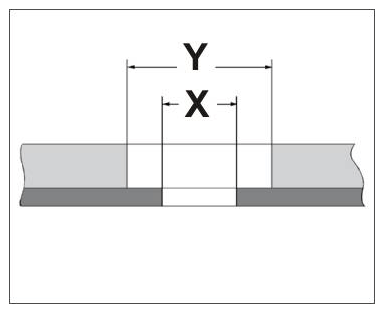

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hole geometry in pre-drilled bore
Through-bore	dimension Y	diameter	7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hole geometry through-bore
Threaded joint for		torque	9.5 Nm (7 ftlb.)	+/- 1 Nm (0.5 ftlb.)
pre-drilled bore	dimension X	diameter	4.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hole geometry in pre-drilled bore
Through-bore	dimension Y	diameter	8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hole geometry through-bore
Screwing	in screws to head plate	torque angle	+ 90 °
pre-drilled bore	dimension X	diameter	4.0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hole geometry in pre-drilled bore
Through-bore	dimension Y	diameter	7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hole geometry through-bore
Screwing	in screws to head contact surface	of torque angle	+ 90 °
pre-drilled bore	dimension X	diameter	4 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hole geometry in pre-drilled bore
Through-bore	dimension Y	diameter	7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hole geometry through-bore
