Preparing For Stud Welding
WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
Information
The following description is intended only as a guide. A description of the steps involved and the various areas of application can be found in the operating instructions provided with the respective device.
- Remove paint and oxide coating on clamping points for earth clamps.

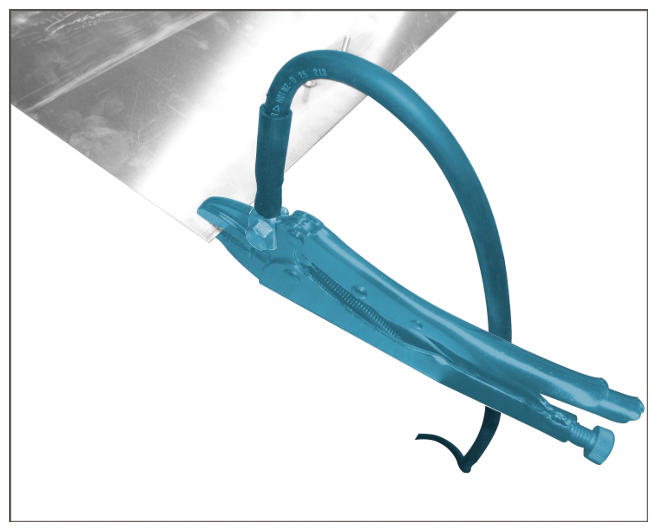

- Attach earth clamps of welder > VAS 852 001 - body dent removal unit
close to the rivet point using the highest possible clamping force. The welding point should be centred between the two earth clamps.
Attaching earth clamps
- Remove paint and oxide coating at the welding point.
- If necessary, connect inert gas and set the minimum flow rate according to the welding parameters in the table below.
Information
The support fixture to be used and the required gas pipe will vary depending on the type of bolt to be welded. See operating instructions provided with the device for details of the correct pairing.

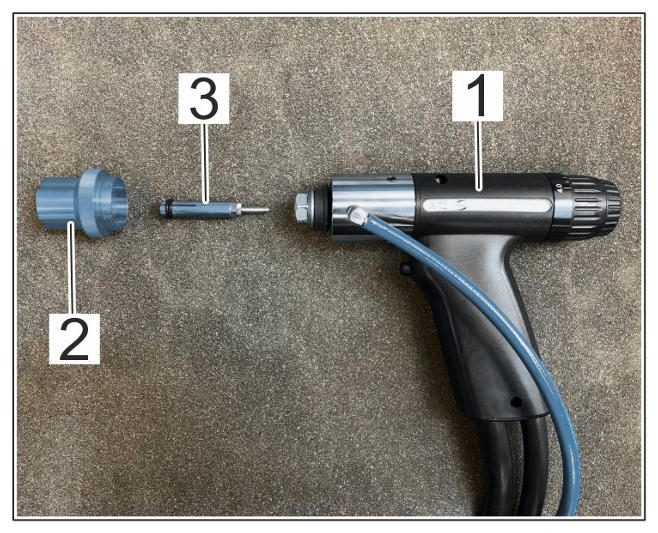

- Fit welding gun -1-
with the gas nozzle -2-
required for the stud and a suitable stud holder -3-
.
Fitting welding gun
- Set welding parameters on the stud welder in accordance with the table below.
