Technical Values

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
Location Des... Type Basic val... Toleranc... Toleranc...

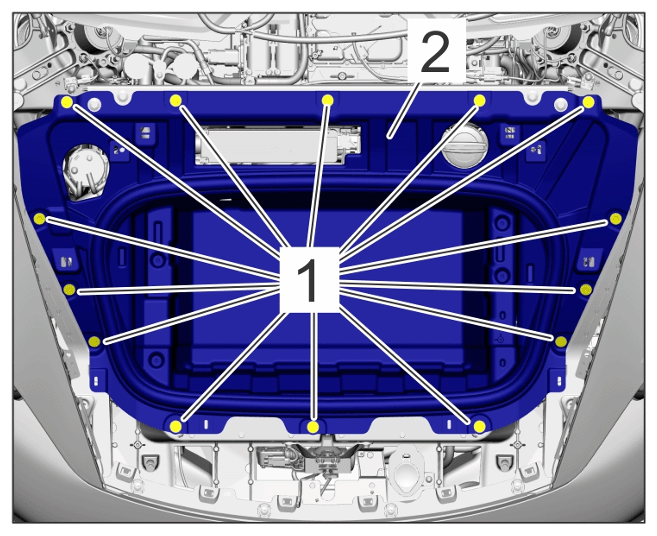

Screws securing luggage compartment liner to body Item 1 Tightening torque 8 Nm (5.9 ftlb.)
G15563768Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pan

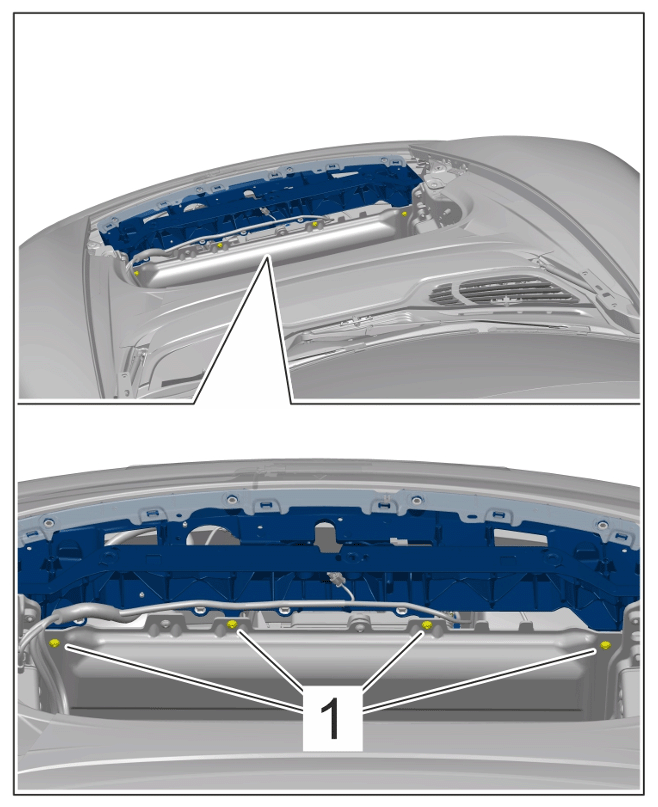

Screws securing pull strap to lock carrier Item 1 Tightening torque 8 Nm (6 ftlb.)
G15563769Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screws securing lock carrier to impact absorber Item 1 Tightening torque 20 Nm (15 ftlb.)
G15563770Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

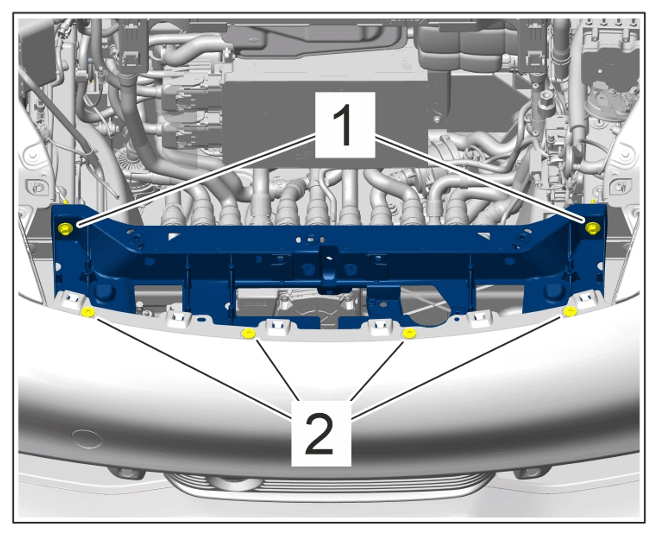

Screws securing front apron to lock carrier Item 2 Tightening torque 5.5 Nm (4 ftlb.)
G15563771Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

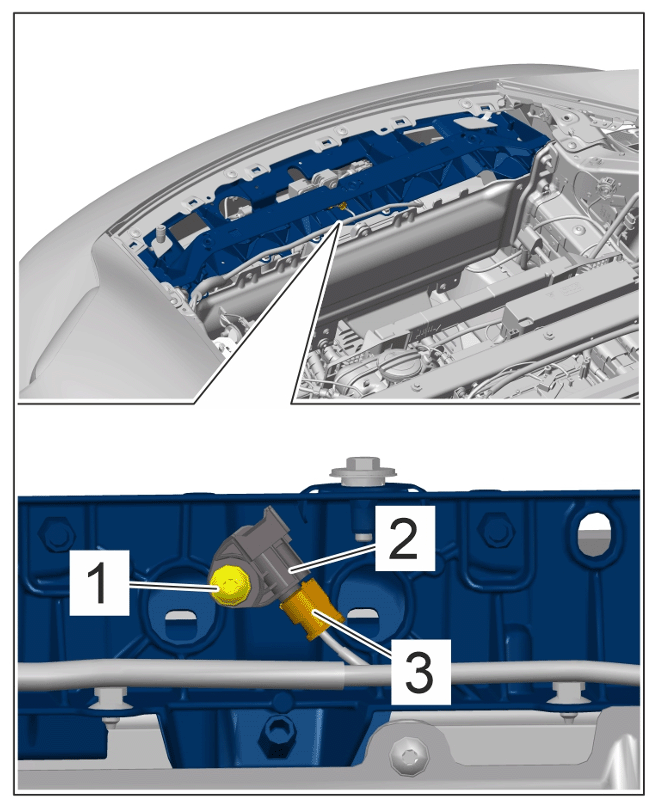

Screw securing sensor to lock carrier Item 1 Tightening torque 9 Nm (6.5 ftlb.)
G15563772Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front sensor

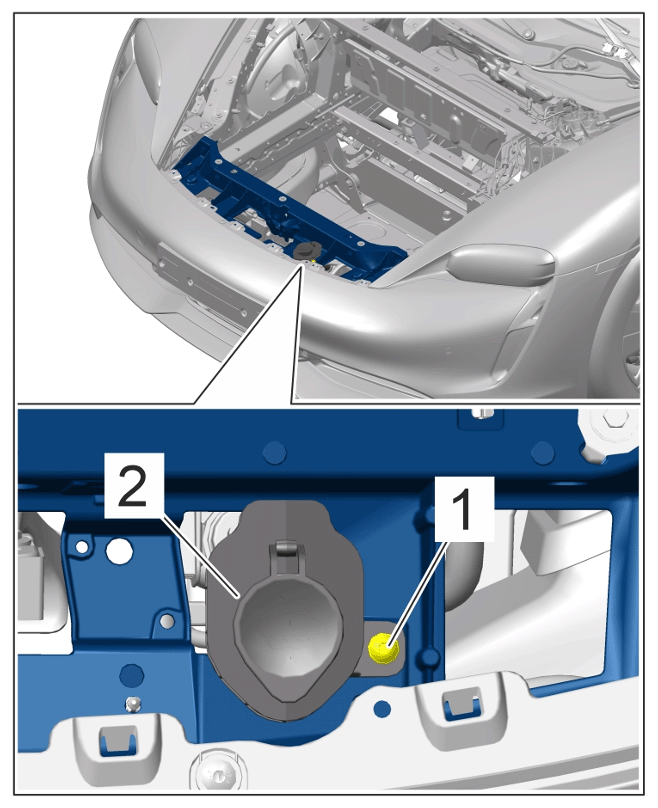

Screw securing washer-fluid reservoir to lock carrier Item 1 Tightening torque 9 Nm (6.5 ftlb.)
G15563773Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Washer-fluid reservoir

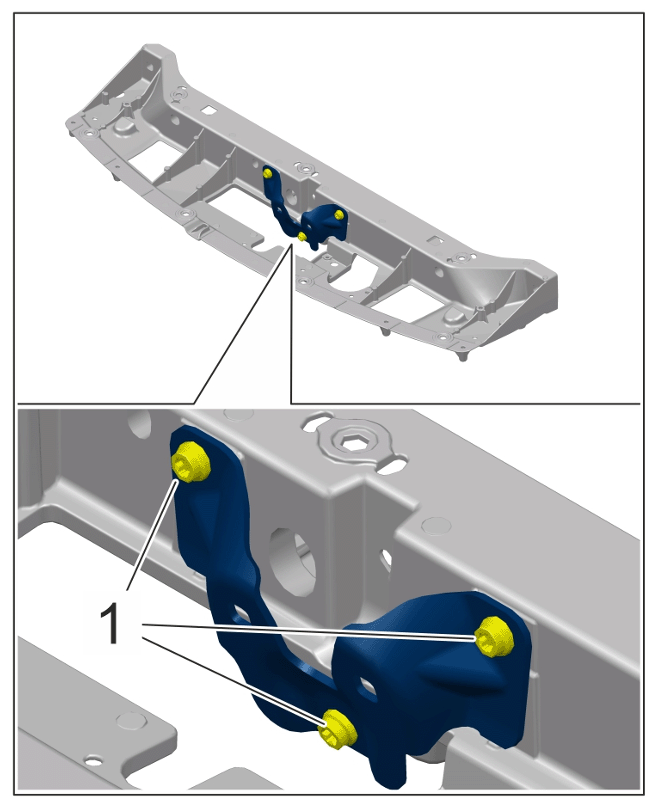

Screw securing bracket reinforcement to lock carrier Item 1 Tightening torque 13 Nm (9.5 ftlb.)
G15563774Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

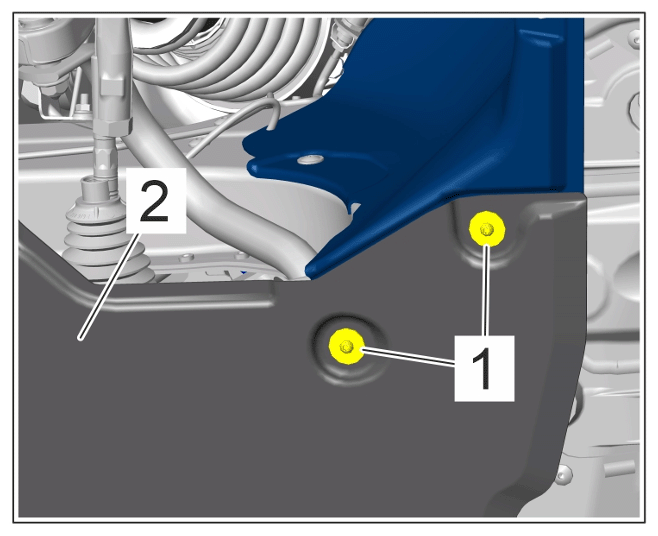

Bottom screws securing front wheel housing liner to underbody cover Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15563775Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

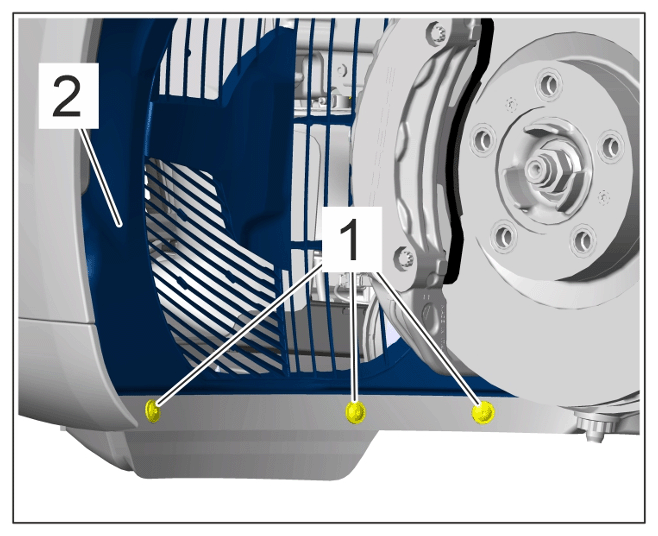

Bottom screws securing front wheel housing liner to front apron Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15563776Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bottom screws

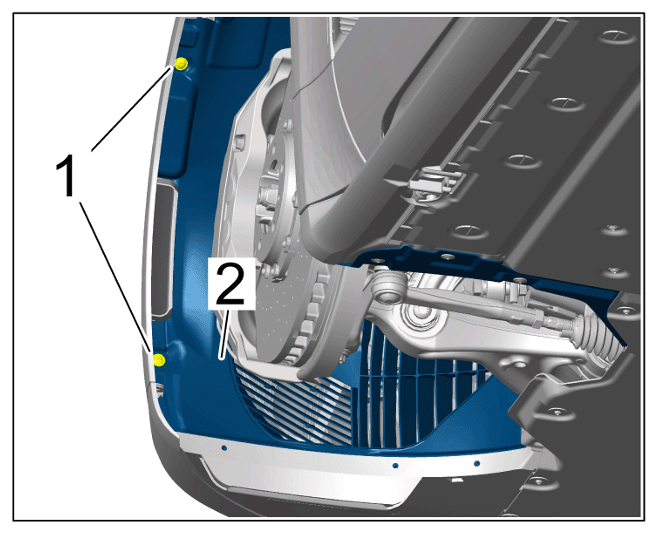

Side screws securing front wheel housing liner to body Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15563777Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

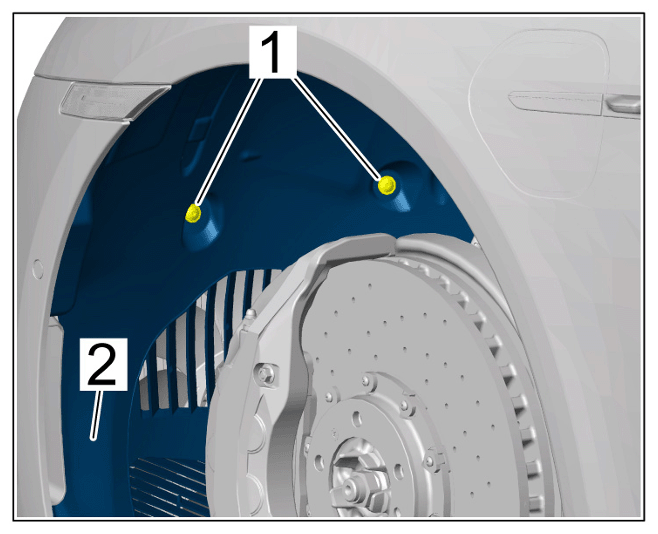

Top screws securing front wheel housing liner to body Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15563778Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Bottom screws securing front wheel housing liner to body Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)

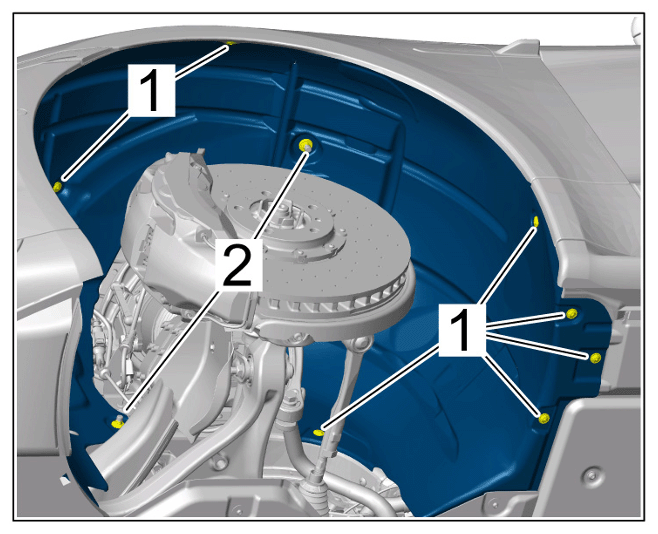

G15563779Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Bottom nuts securing front wheel housing liner to body Item 2 Tightening torque 2.5 Nm (1.75 ftlb.)
G15563780Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screws securing front wheel housing liner (front section) to front apron and front underbody panelling Item 2 Tightening torque 2.5 Nm (1.8 ftlb.)

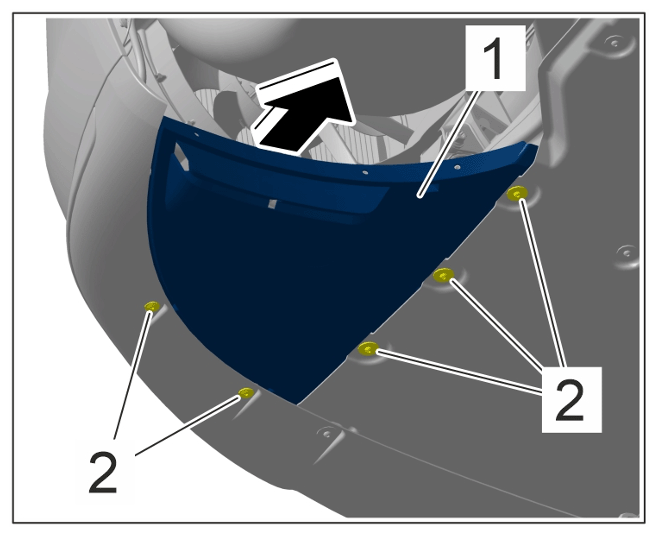

G15563781Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front wheel housing liner (front section)

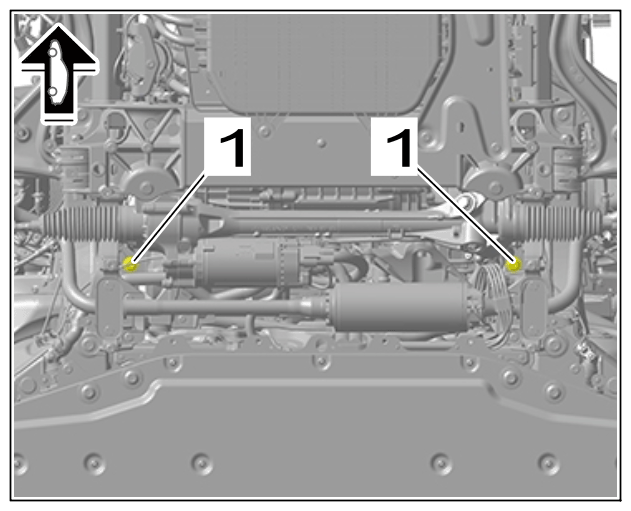

Bolt securing cross member to body (front) Initial tightening/Item 1/Always replace bolts following removal Tightening torque 40 Nm (30 ftlb.)
G15563782Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bolts near steering gear
Bolt securing cross member to body (front) Final tightening/Item 1/Always replace bolts following removal Torque angle + 90 °
G15563783Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bolts near steering gear
Bolt securing cross member to body (bottom) Initial tightening/Item 1/Always replace bolts following removal Tightening torque 50 Nm (37 ftlb.)
G15563784Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cross member bolts

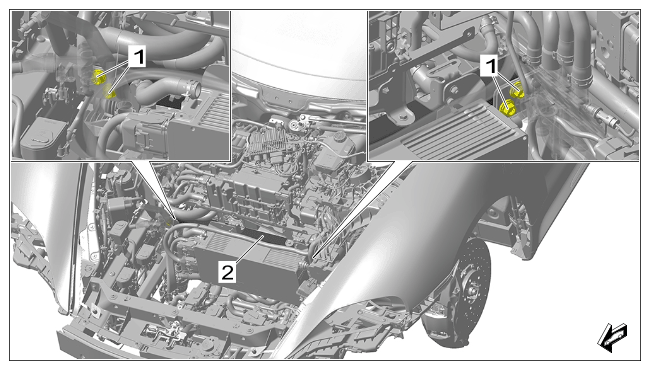

Bolt securing cross member to body (bottom) Final tightening/Item 1/Always replace bolts following removal Torque angle + 180 °
G15563785Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cross member bolts
Nut securing cross panel to body Item 3 Tightening torque 8 Nm (6 ftlb.)
G15563786Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cross panel

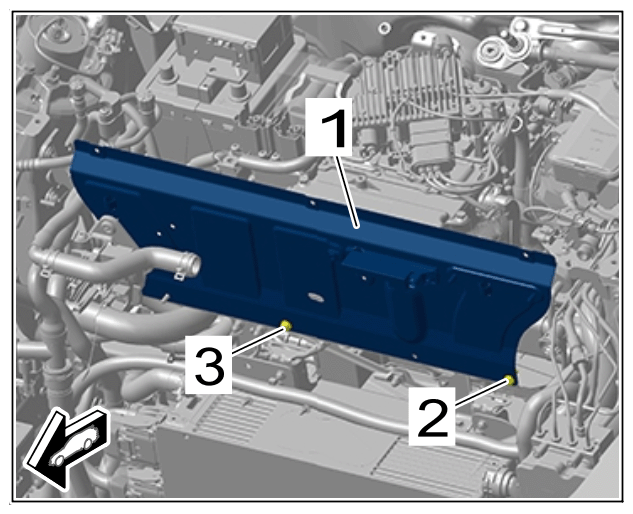

Screw securing cross panel to body Item 2 Tightening torque 5 Nm (3.5 ftlb.)
G15563787Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cross panel
Nut securing ground lines to floor plate Item 3 Tightening torque 8 Nm (6 ftlb.)
G15563788Courtesy of PORSCHE CARS NORTH AMERICA, INC.

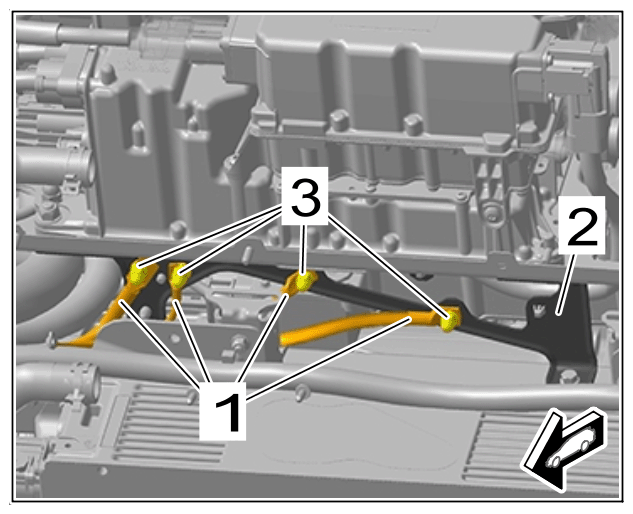

Ground lines to floor plate

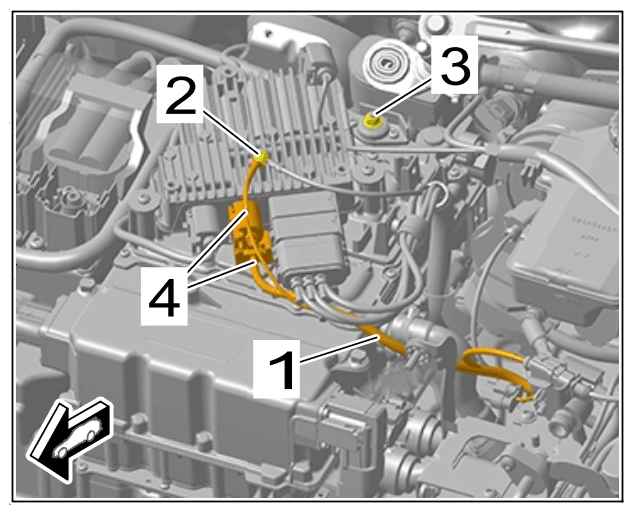

Nut on front PDCC ground line Item 3 Tightening torque 5 Nm (3.5 ftlb.)
G15563789Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness near brake fluid reservoir

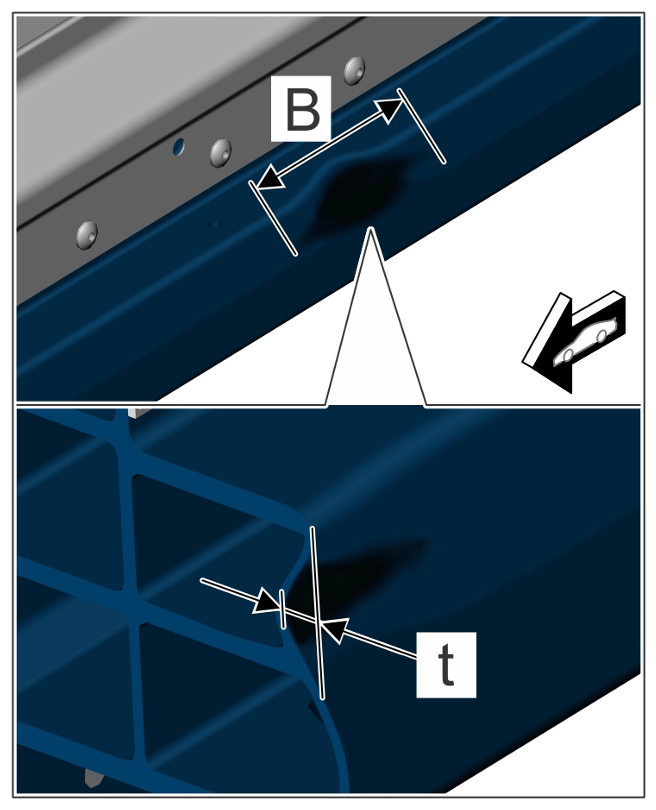

Maximum damage width - deformation Item B Length 90 mm
G15563790Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Damage width
Maximum damage depth Item t Length 10 mm
G15563791Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Damage depth

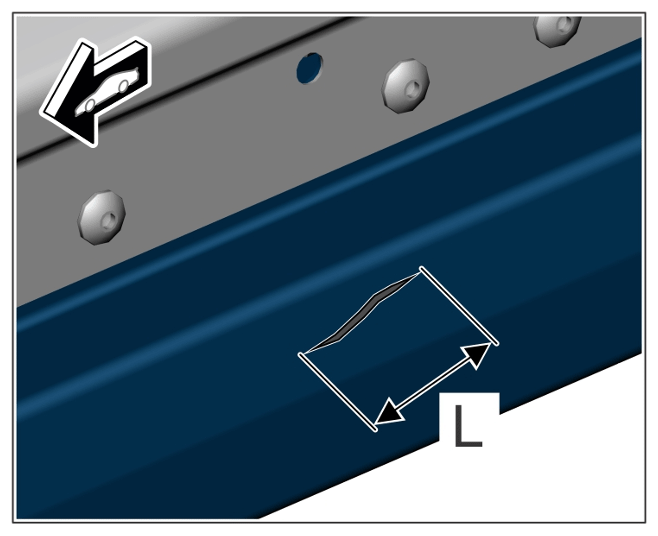

Maximum crack length Item L Length 20 mm
G15563792Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Crack length

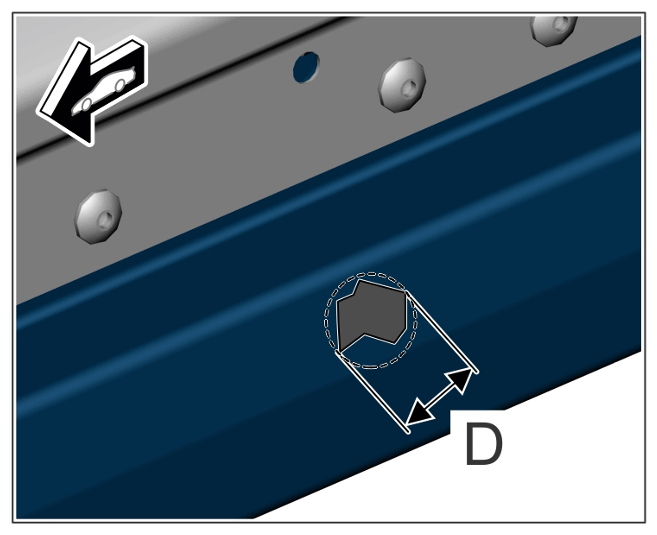

Maximum hole diameter Item D Diameter 10 mm
G15563793Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hole diameter
Nuts securing dashboard bracket to body Item 2 Tightening torque 20 Nm (15 ftlb.)

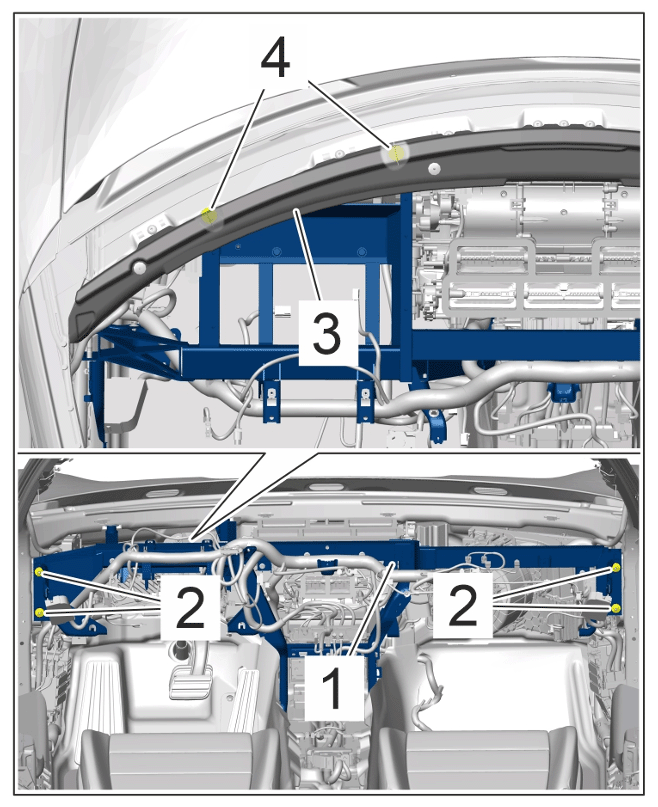

G15563794Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts at the sides
Screws securing dashboard bracket at the top to body Item 4 Tightening torque 20 Nm (15 ftlb.)
G15563795Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Top screws

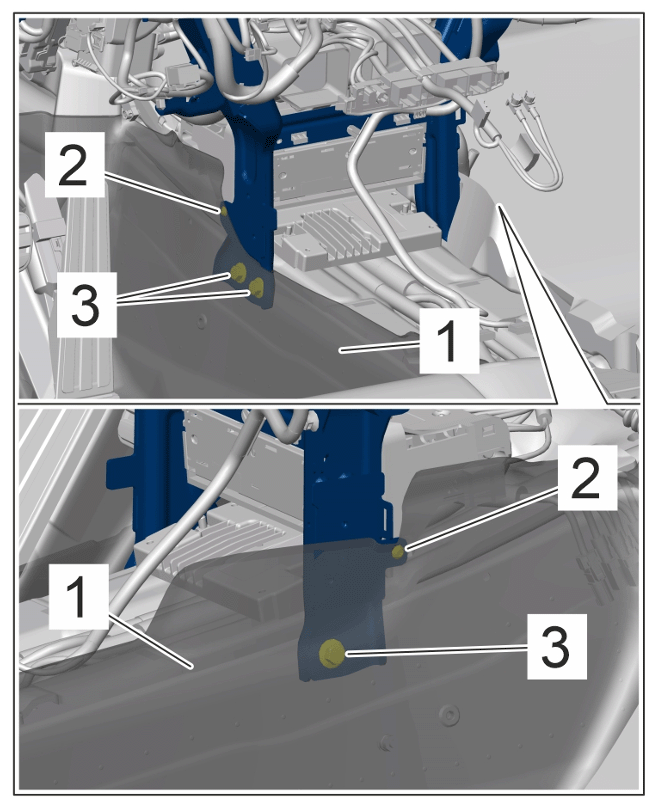

Screws securing dashboard bracket at the bottom to body Item 3 Tightening torque 20 Nm (15 ftlb.)
G15563796Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bottom screws

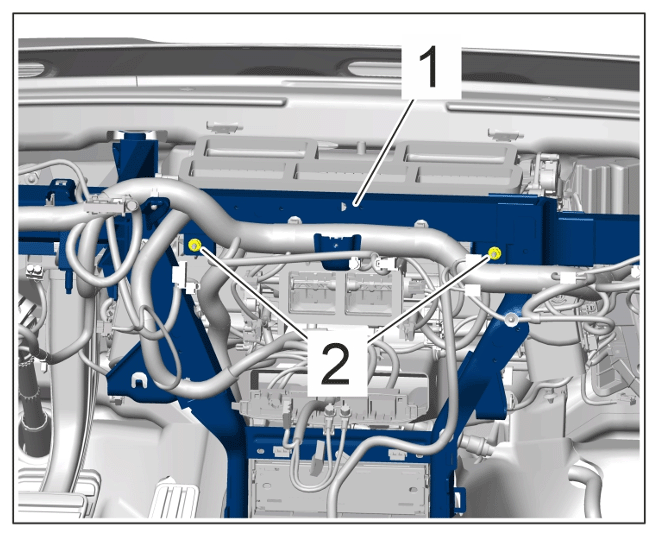

Nuts securing dashboard bracket to heater/air-conditioning unit Item 2 Tightening torque 8 Nm (6 ftlb.)
G15563797Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts
Screws securing centre console holder to dashboard bracket Item 2 Tightening torque 4 Nm (3 ftlb.)

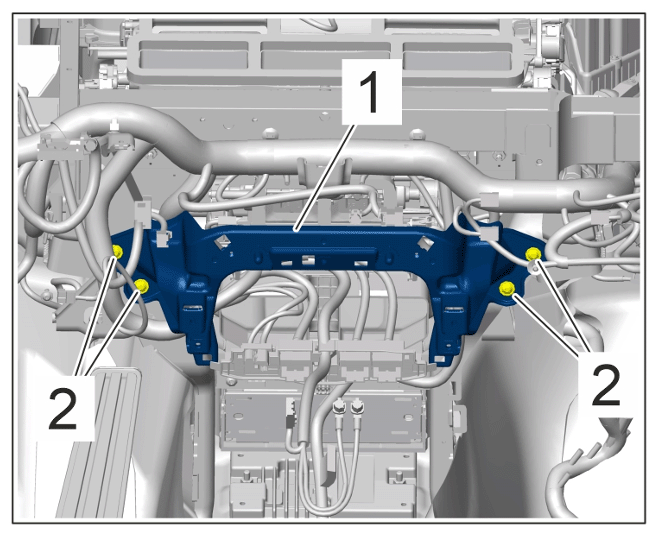

G15563798Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Centre console holder

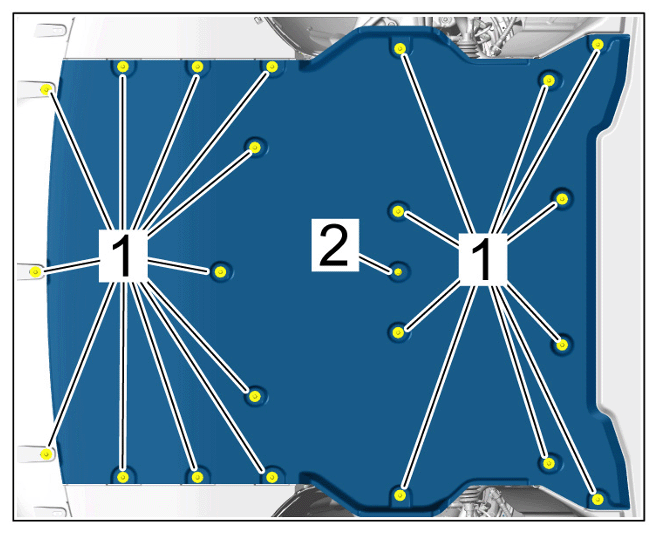

Screws securing underbody cover to body Item 1 Tightening torque 2.5 Nm (1.8 ftlb.)
G15563799Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

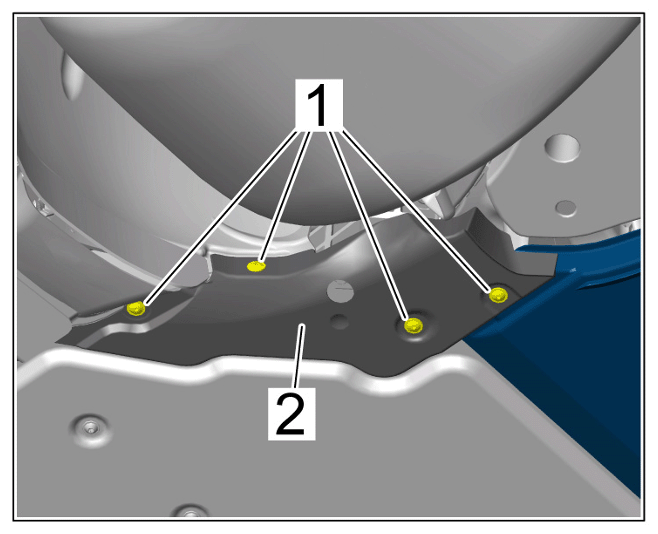

Screws securing left and right cover to body Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15563800Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

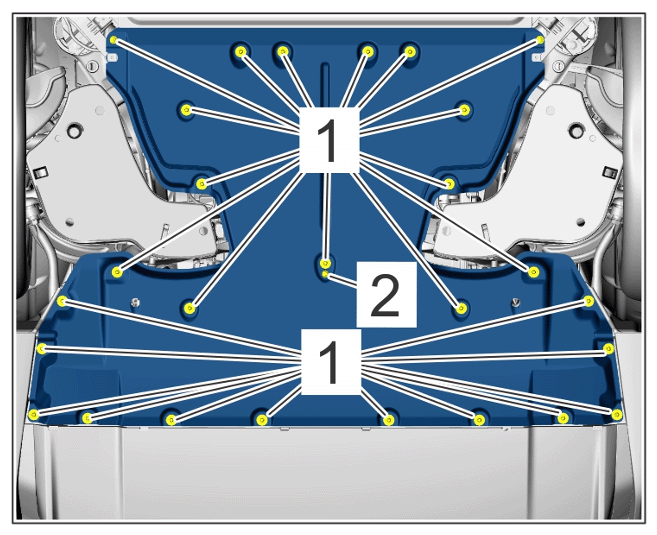

Screws securing rear underbody cover to body Item 1 Tightening torque 2.5 Nm (1.8 ftlb.)
G15563801Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening elements

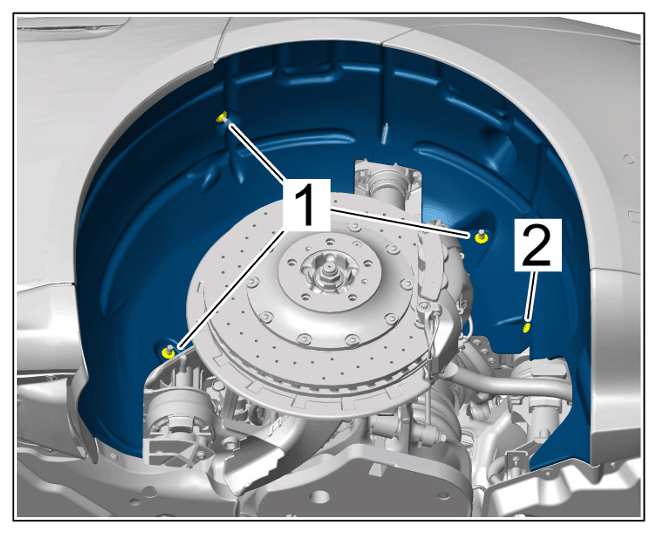

Inner screw securing rear wheel housing liner to body Item 2 Tightening torque 2.5 Nm (1.75 ftlb.)
G15563802Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Inner nuts securing rear wheel housing liner to body Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15563803Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

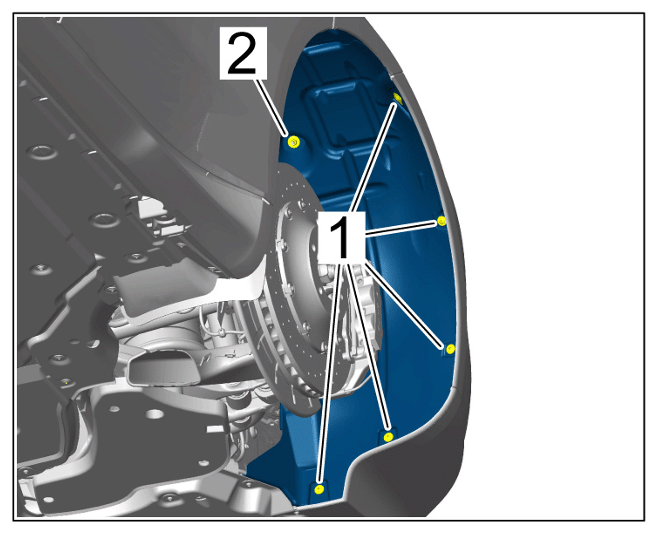

Outer screws securing rear wheel housing liner to body Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15563804Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Outer nut securing rear wheel housing liner to body Item 2 Tightening torque 2.5 Nm (1.75 ftlb.)
G15563805Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

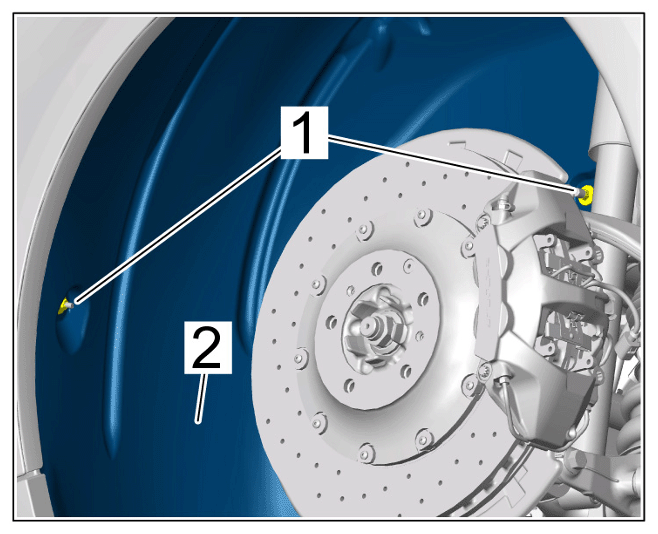

Side nut securing rear wheel housing liner to body Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15563806Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut

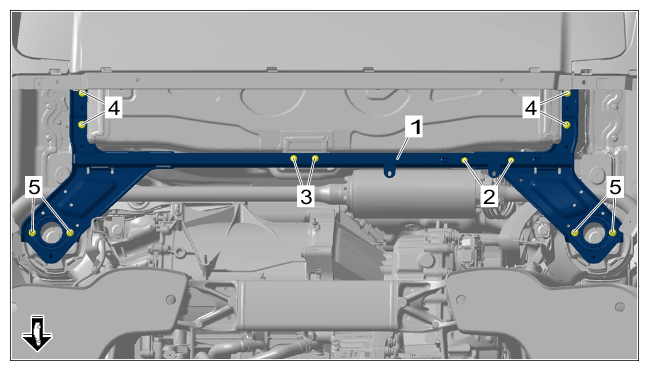

Screw securing strut to body Item 5 Tightening torque 30 Nm (22 ftlb.)
G15563807Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Strut
Nut securing strut to body Item 4 Tightening torque 10 Nm (7.5 ftlb.)
G15563808Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Strut
Screw securing strut to body Item 3 Tightening torque 10 Nm (7.5 ftlb.)
G15563809Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Strut
Screw securing strut to body Item 2 Tightening torque 8 Nm (6 ftlb.)
G15563810Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Strut

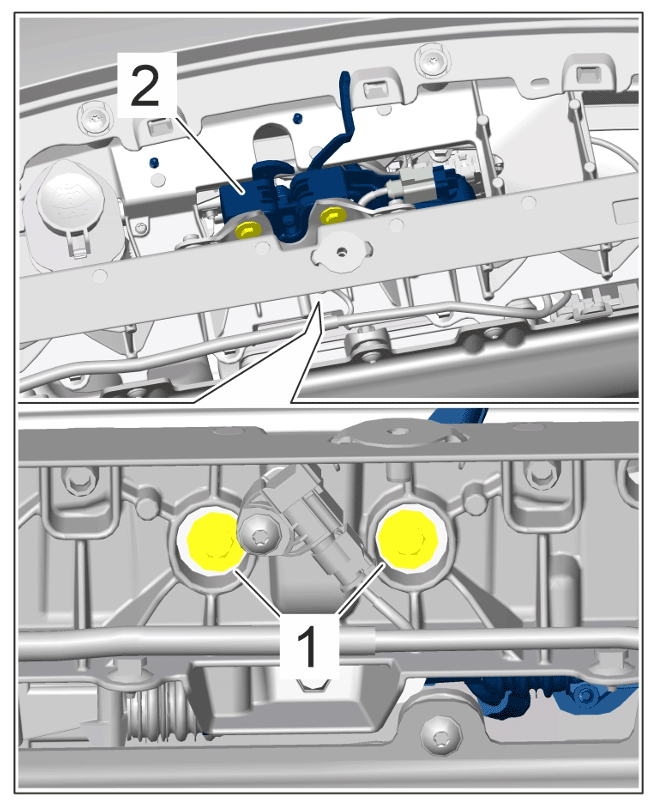

Screws securing lower part of front lock to lock carrier Item 1 Tightening torque 8 Nm (6 ftlb.)
G15563811Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

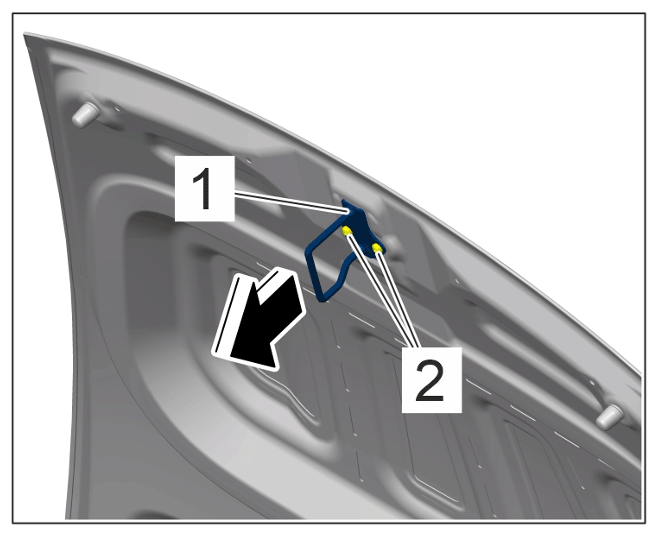

Screws securing upper part of front lock to front lid Item 2 Tightening torque 8 Nm (6 ftlb.)
G15563812Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper part of front lock

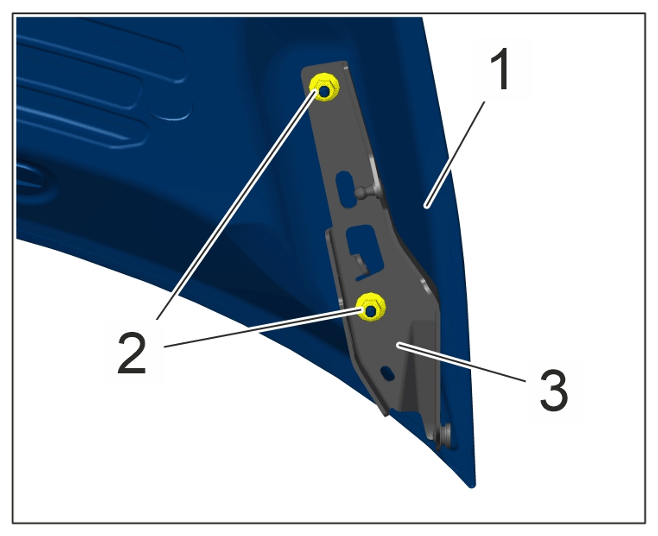

Nuts securing front lid to front lid hinge Item 2 Tightening torque 14 Nm (10.5 ftlb.)
G15563813Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front lid

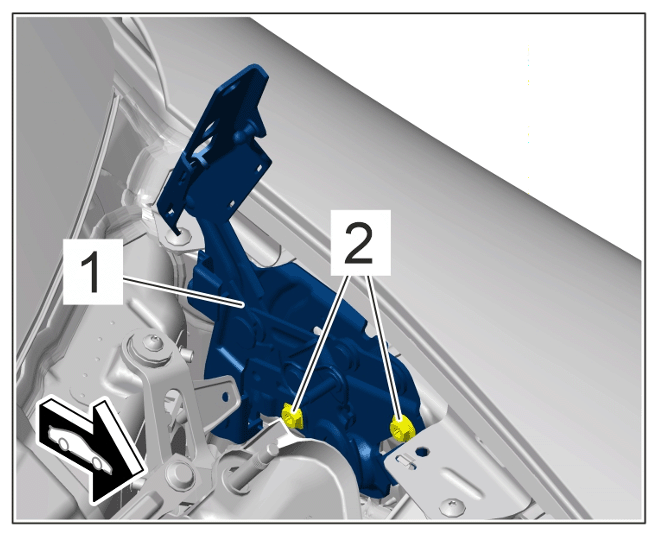

Screws securing front lid hinge to body Item 2 Tightening torque 20 Nm (15 ftlb.)
G15563814Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front lid hinge
Mechanical holder on mechanical power supply flap (module) Item 1 Tightening torque 2.5 Nm (1.844 ftlb.)

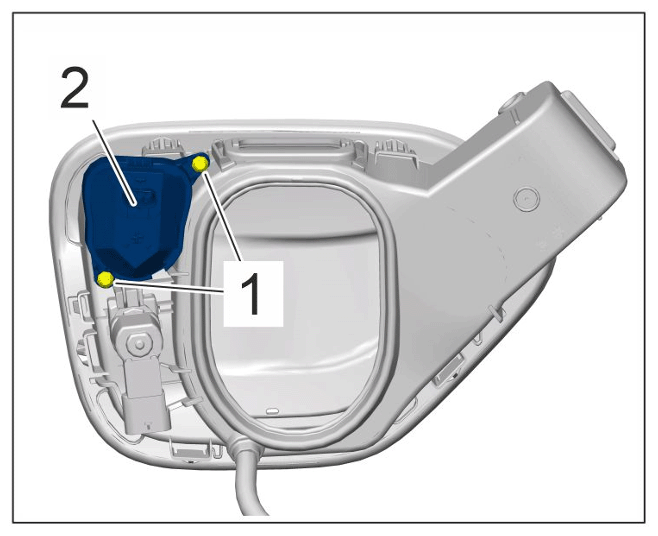

G15563815Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mechanical holder for mechanical power supply flap (module)

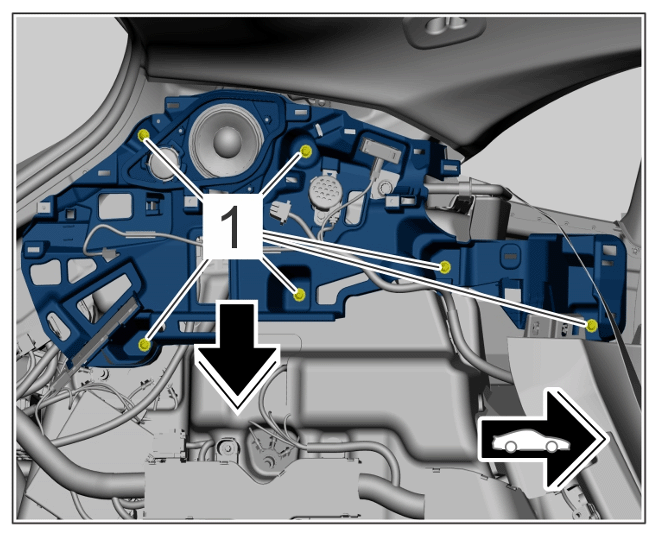

Screws securing retaining frame Item 1 Torque 6 Nm (4.5 ftlb.)
G15563816Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trim panel

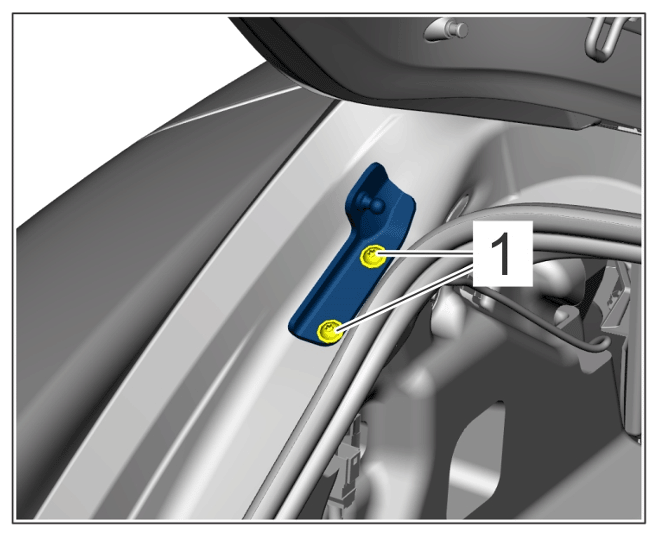

Screws securing bearing block Item 1 Tightening torque 10 Nm (7.5 ftlb.)
G15563817Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bearing block

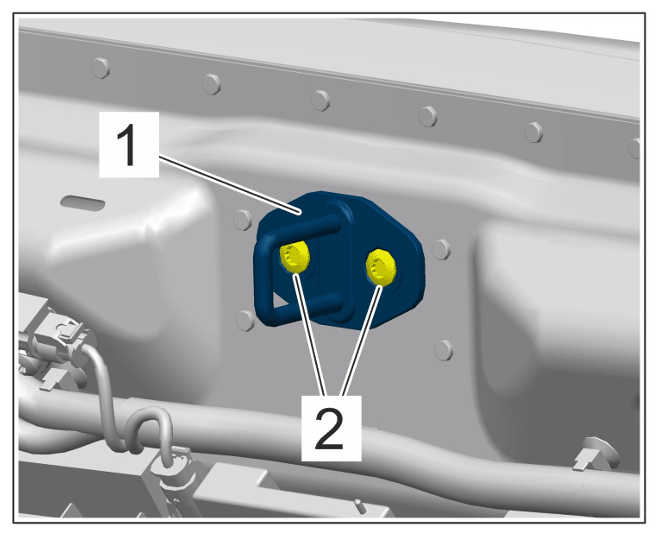

Screws securing lower part of rear lock to lock carrier on Coupe Item 2 Tightening torque 20 Nm (15 ftlb.)
G15563818Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for lower part of lock

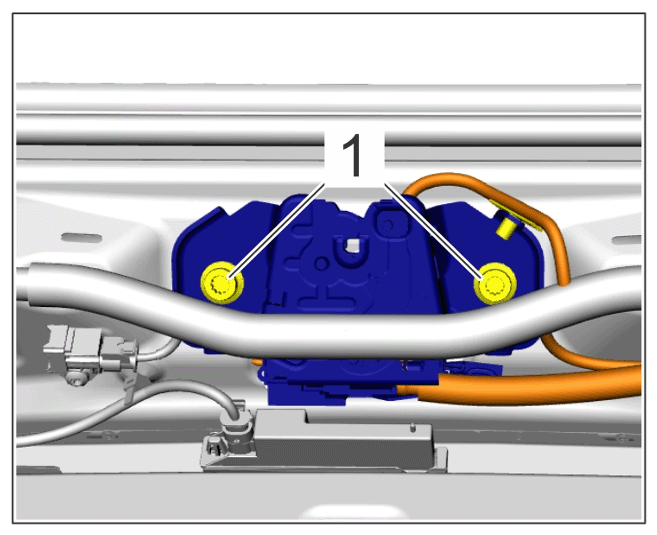

Screws securing lower part of lock to lock carrier on Cross Turismo Item 1 Tightening torque 20 Nm (15 ftlb.)
G15563819Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

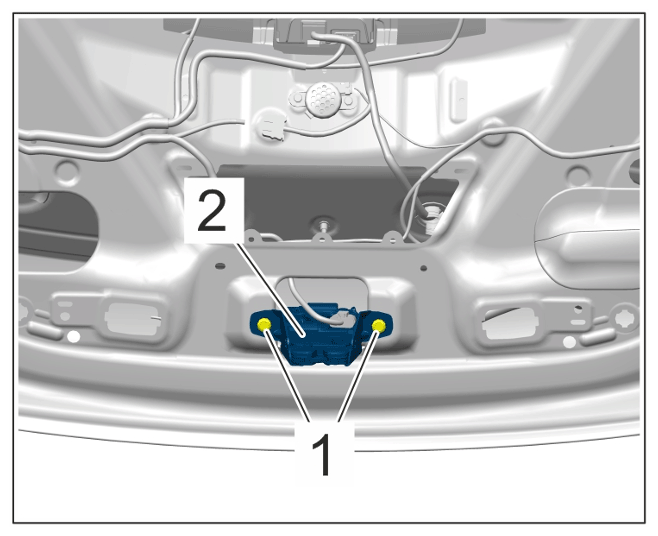

Screws securing upper part of lock, saloon Item 1 Tightening torque 20 Nm (15 ftlb.)
G15563820Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on upper part of lock

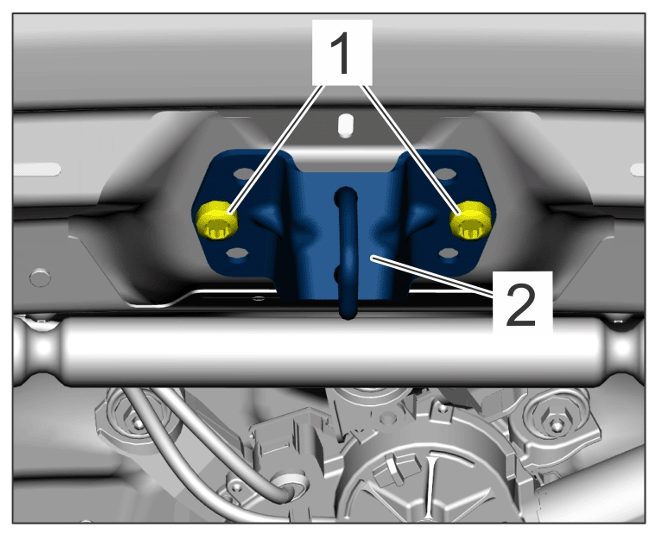

Screws securing upper part of lock, Cross Turismo Item 1 Torque 20 Nm (15 ftlb.)
G15563821Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

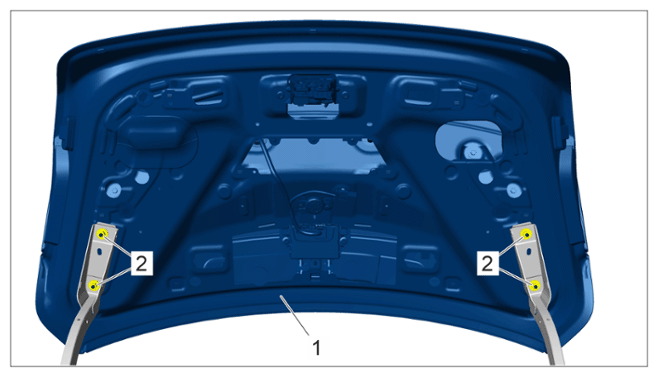

Nuts securing rear lid to hinge Item 2 Tightening torque 20 Nm (15 ftlb.)
G15563822Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear lid
Screws securing guide wedge to inner part of lid Item 1 Tightening torque 6 Nm (4.5 ftlb.)

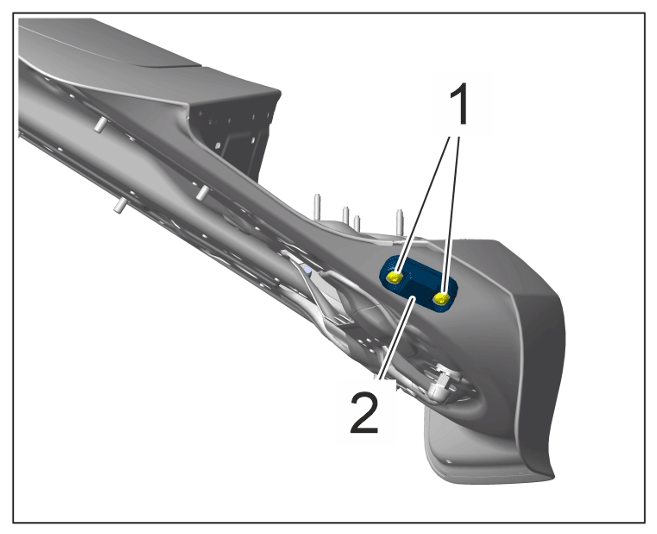

G15563823Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide wedge

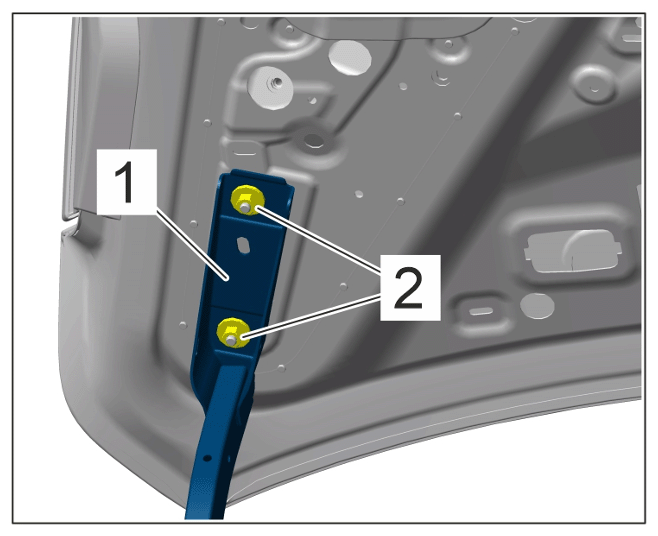

Nuts securing rear lid hinge to rear lid Item 2 Tightening torque 20 Nm (15 ftlb.)
G15563824Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear lid hinge

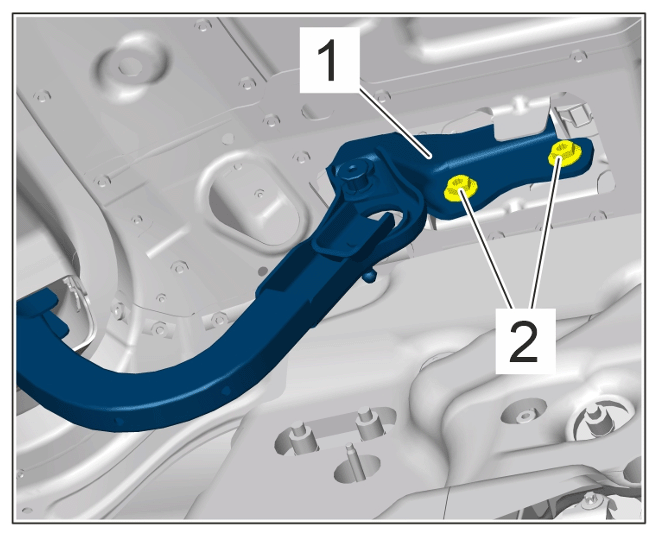

Nuts securing rear lid hinge to rear frame Item 2 Tightening torque 20 Nm (15 ftlb.)
G15563825Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts on rear lid hinge

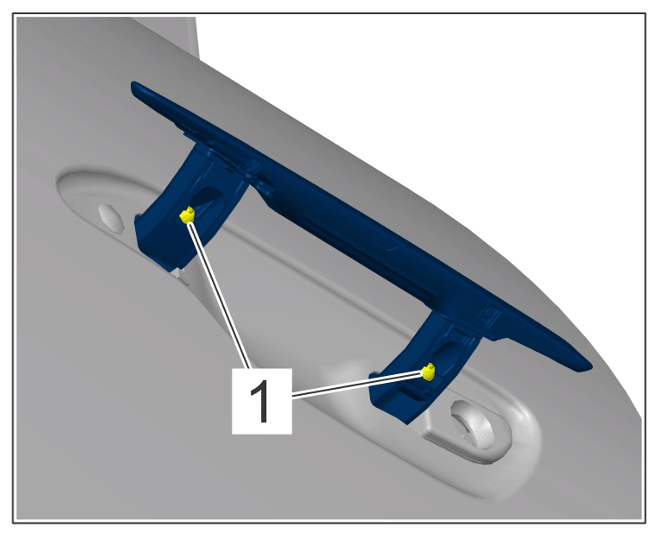

Door handle to supporting bow Item 1 Tightening torque 2 Nm (1.5 ftlb.)
G15563826Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

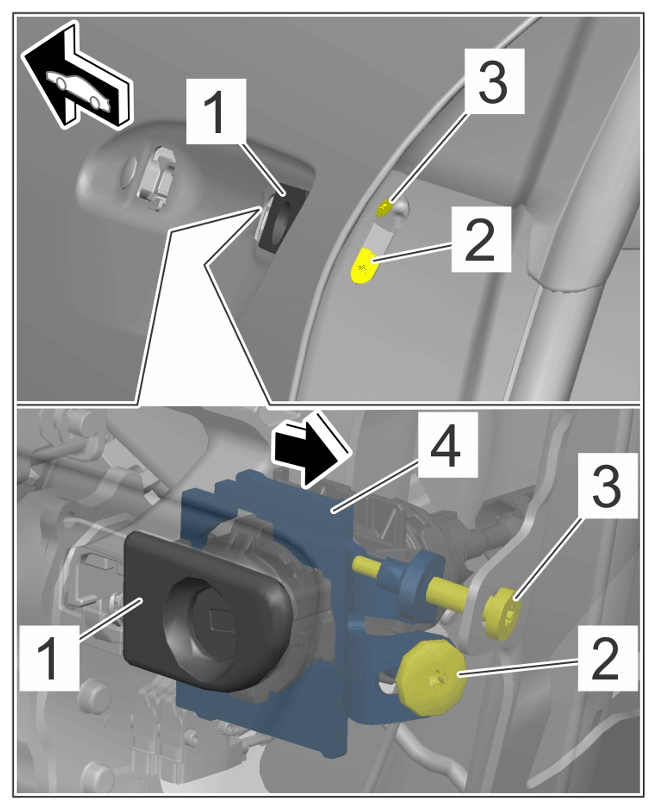

Locking mechanism Item 2 Tightening torque 4 Nm (3 ftlb.)
G15563827Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking mechanism
Locking mechanism Item 3 Tightening torque 2 Nm (1.5 ftlb.)
G15563828Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking mechanism

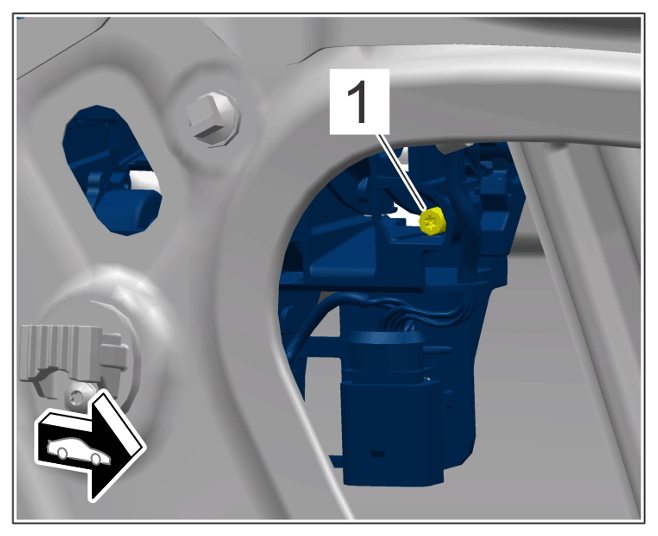

Screw, inner Item 1 Tightening torque 4 Nm (3 ftlb.)
G15563829Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

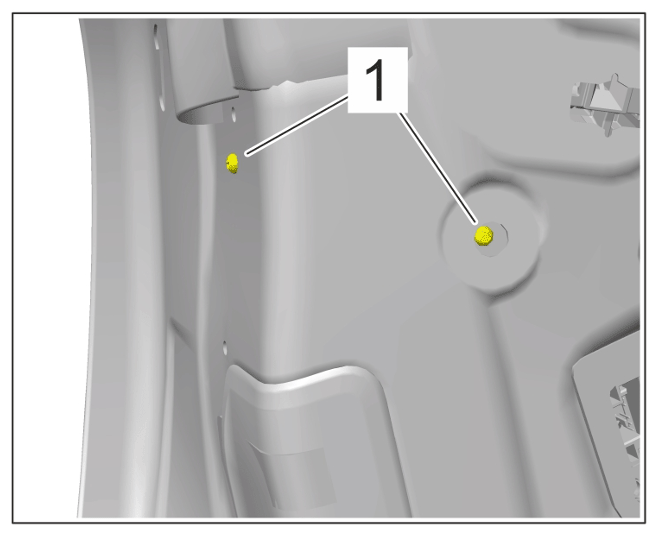

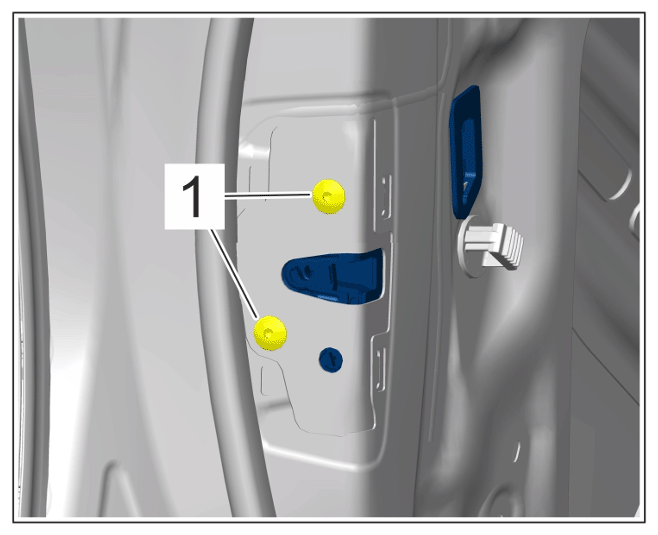

Screw securing cover for door lock to door bodyshell Item 1 Tightening torque 1.6 Nm (1 ftlb.)
G15563830Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

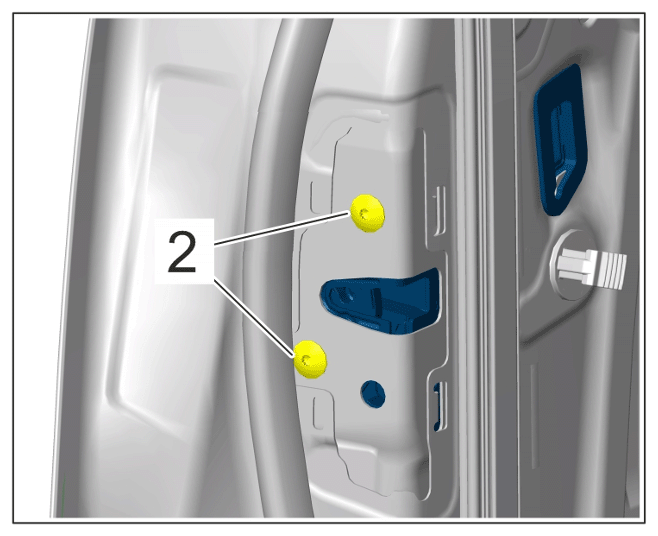

Screw securing door lock to door bodyshell Item 2 Tightening torque 20 Nm (15 ftlb.)
G15563831Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

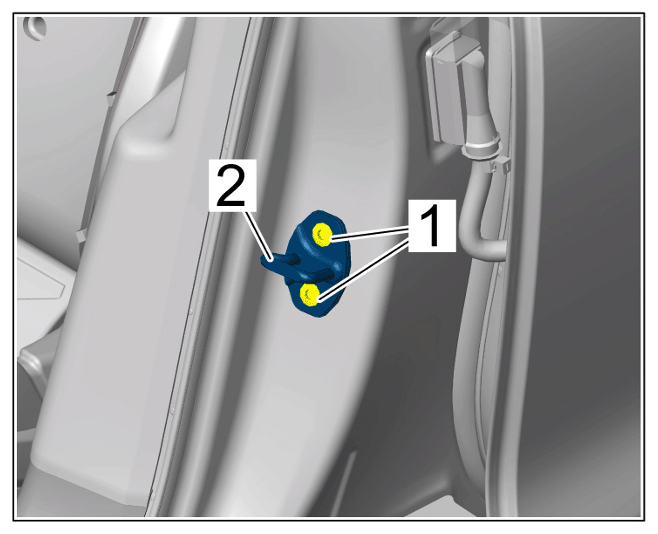

Screws securing lock peg to body Item 1 Tightening torque 25 Nm (19 ftlb.)
G15563832Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lock peg

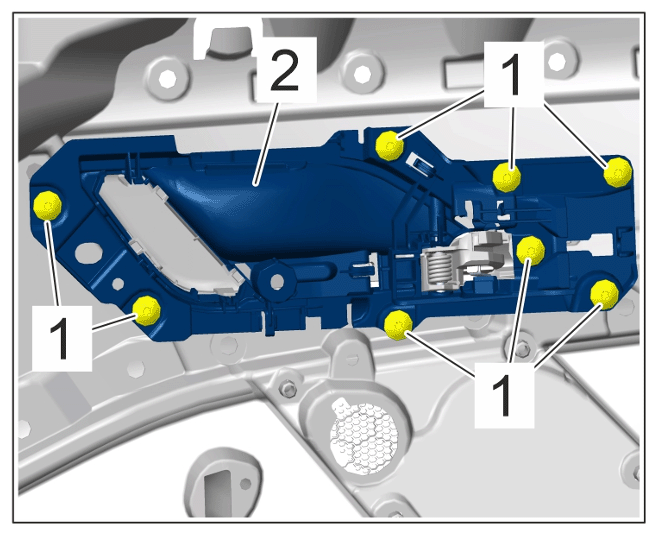

Screws securing door opener to door panel Item 1 Tightening torque 3 Nm (2 ftlb.)
G15563833Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screw securing door hinge to door Item 1 Tightening torque 50 Nm (37 ftlb.)

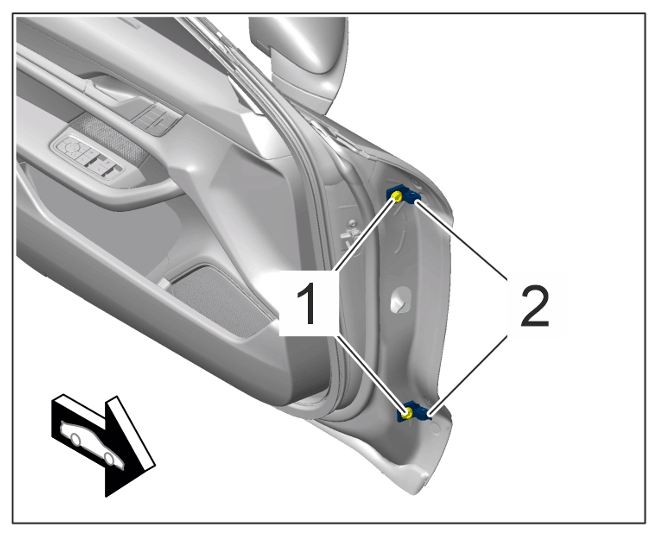

G15563834Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screw securing door hinge to body Item 2 Initial tightening 20 Nm (15 ftlb.)
G15563835Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screw securing door hinge to body Item 2 Final tightening 45 Grad
G15563836Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

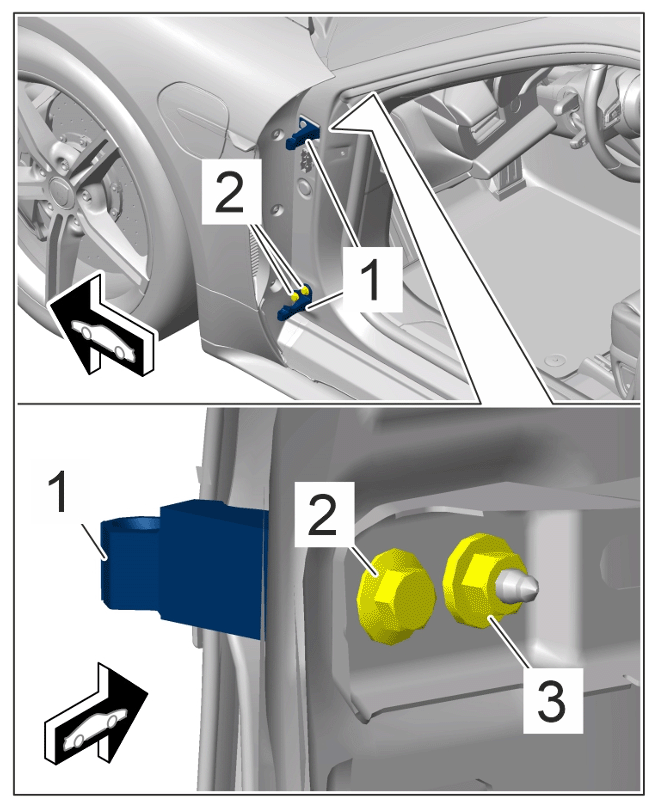

Nut securing door hinge to body Item 3 Initial tightening 20 Nm (15 ftlb.)
G15563837Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut
Nut securing door hinge to body Item 3 Final tightening 45 Grad
G15563838Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut

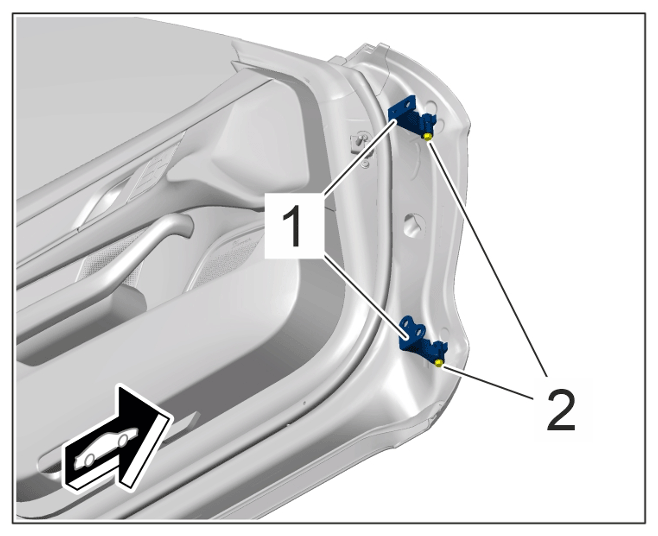

Screw for door hinge   Tightening torque 8 Nm (6 ftlb.)
G15563839Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for door hinge

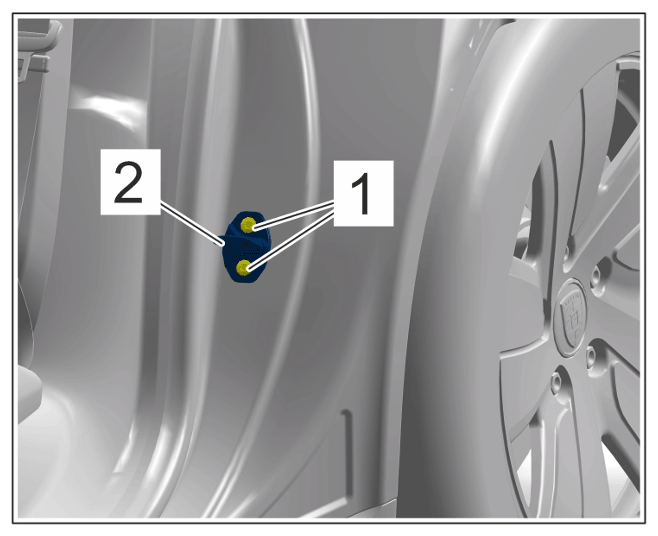

Screw securing door arrester to B-pillar Item 2 Tightening torque 33 Nm (24 ftlb.)
G15563840Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on door arrester

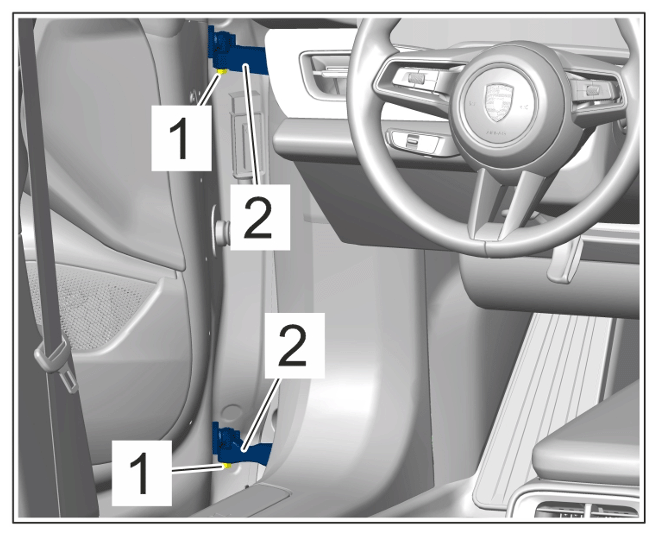

Screw securing hinge half on bodyshell to hinge half on door Item 1 Tightening torque 13 Nm (9.5 ftlb.)
G15563841Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinges
Screw securing door hinge to door Item 1 Tightening torque 50 Nm (37 ftlb.)
G15563842Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

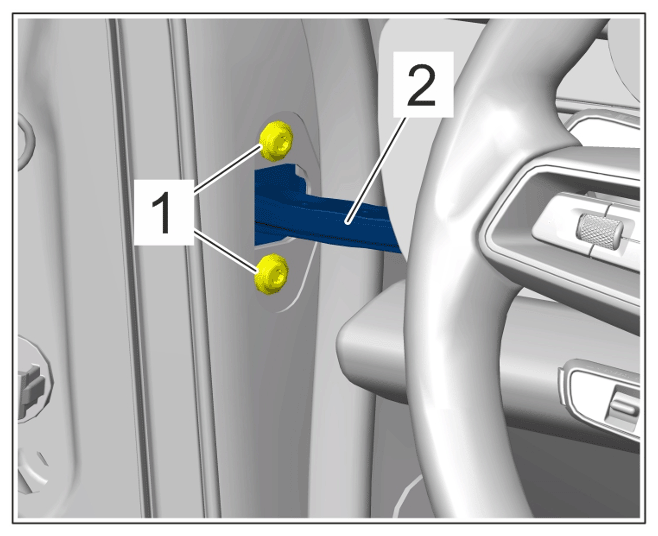

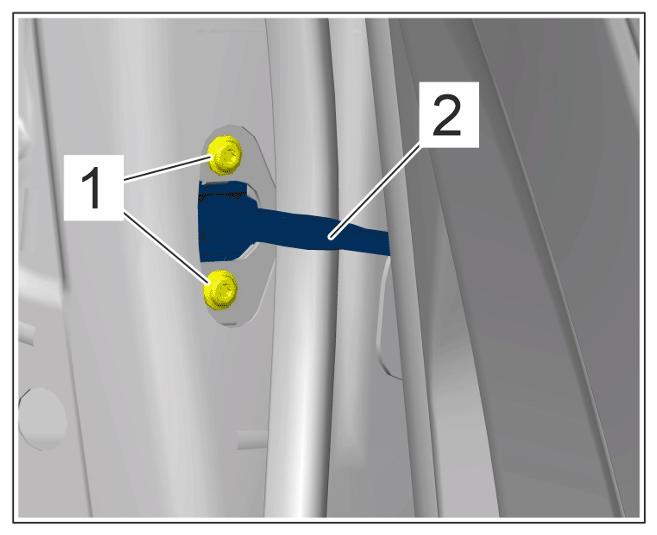

Screws securing door arrester to door bodyshell Item 1 Tightening torque 8 Nm (6 ftlb.)
G15563843Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

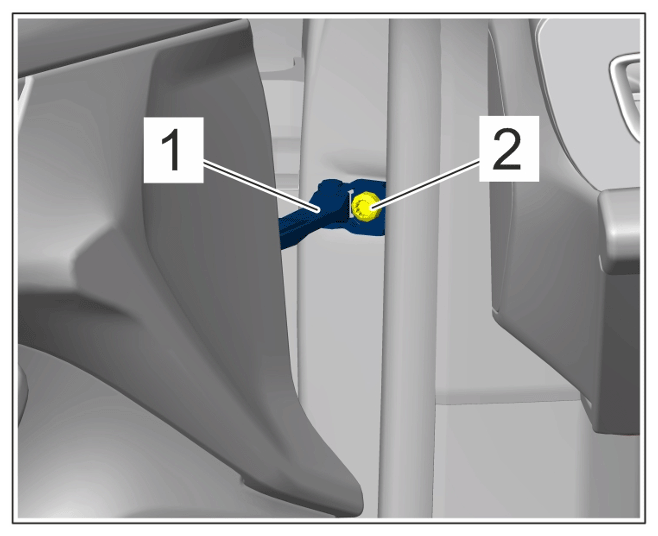

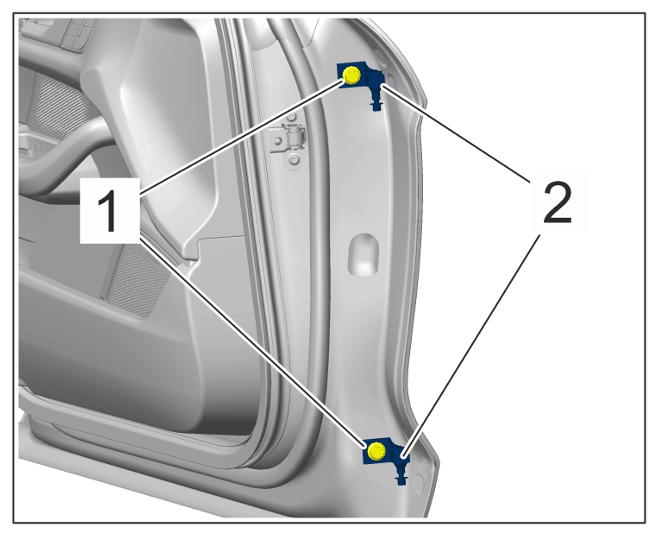

Screw securing door arrester to A-pillar Item 2 Tightening torque 33 Nm (24 ftlb.)
G15563844Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on door arrester

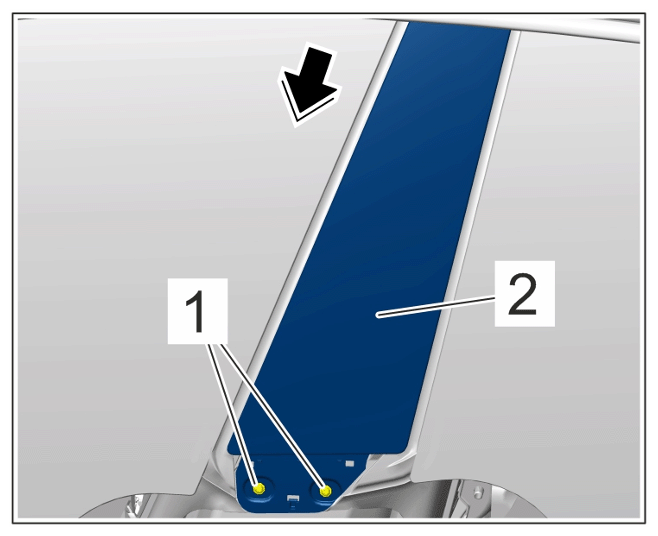

Screws securing side window (centre) to B-pillar Item 1 Tightening torque 4 Nm (3 ftlb.)
G15563845Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side window (centre)

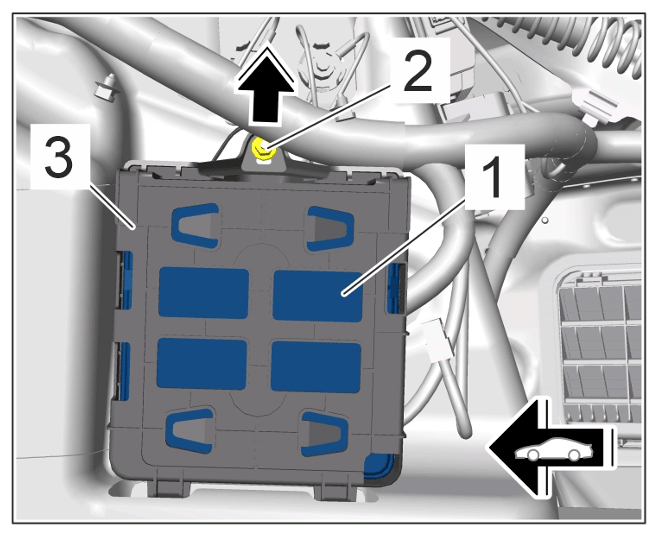

Nut securing control unit for rear-end electronics to body Item 2 Tightening torque 2.5 Nm (1.75 ftlb.)
G15563846Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

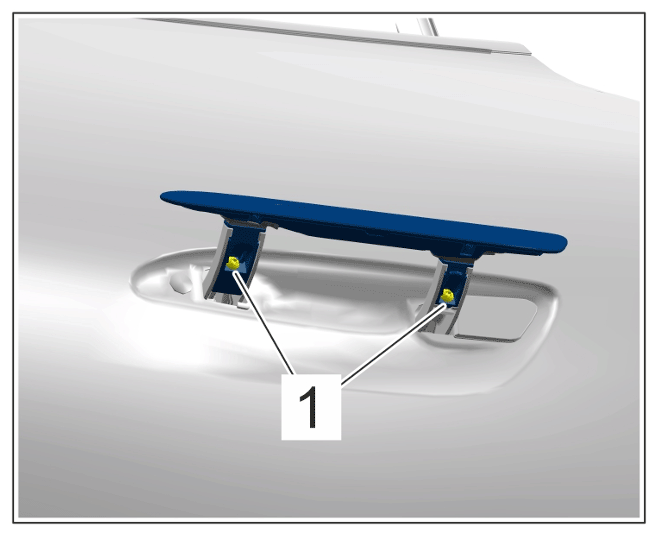

Door handle to supporting bow Item 1 Tightening torque 2 Nm (1.5 ftlb.)
G15563847Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screw, inner Item 1 Tightening torque 4 Nm (3 ftlb.)
G15563848Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
Screw securing door lock to door bodyshell Item 1 Tightening torque 20 Nm (15 ftlb.)
G15563849Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screws securing lock peg to body Item 1 Tightening torque 25 Nm (19 ftlb.)
G15563850Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lock peg
Screw securing door hinge to body Item 1 Initial tightening 20 Nm (15 ftlb.)
G15563851Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinge (on body side)
Screw securing door hinge to body Item 1 Final tightening + 45 °
G15563852Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinge (on body side)
Nut securing door hinge to body Item 2 Initial tightening 20 Nm (15 ftlb.)
G15563853Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinge (on body side)

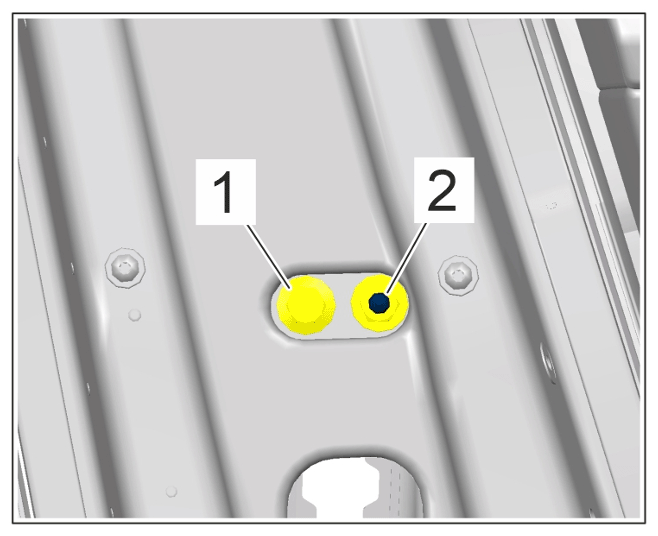

Nut securing door hinge to body Item 2 Final tightening + 45 °
G15563854Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinge (on body side)

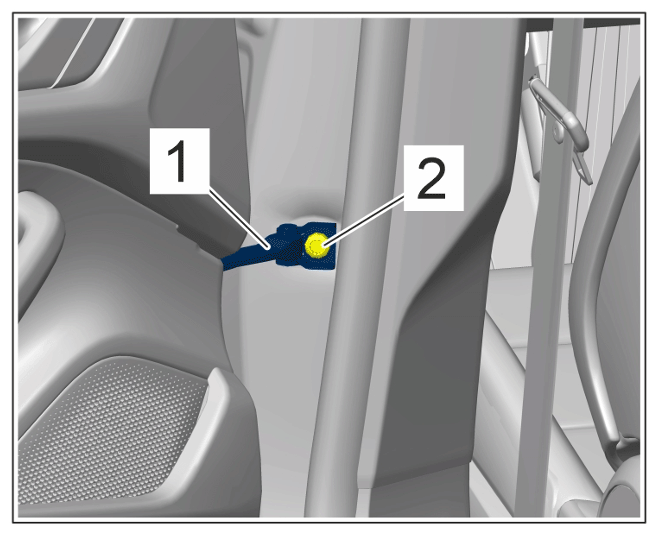

Screw securing door arrester to B-pillar Item 2 Tightening torque 33 Nm (24 ftlb.)
G15563855Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door arrester
Screws securing door arrester to door bodyshell Item 1 Tightening torque 8 Nm (6 ftlb.)
G15563856Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
scientia non olet · About LEMON Manuals
