Lower Part Of Front Lock

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance

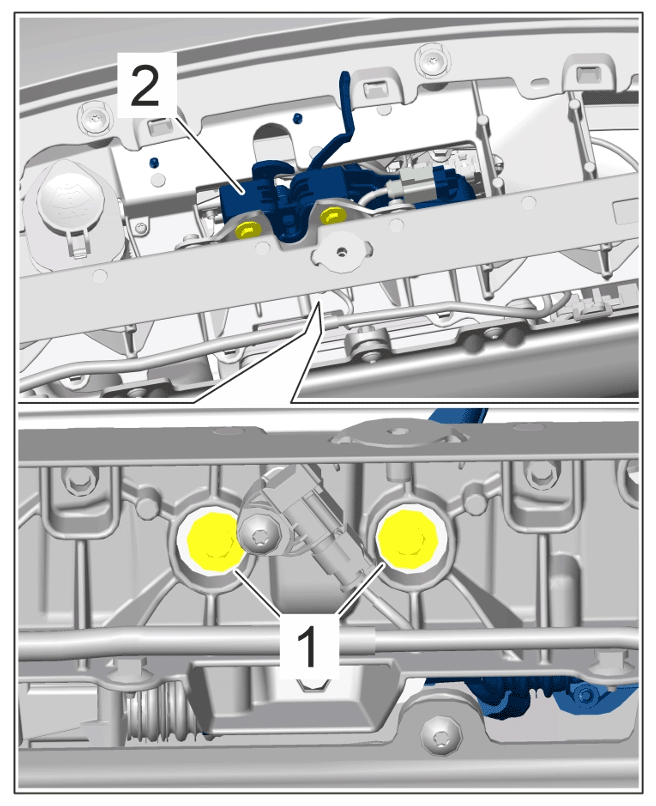

Screws securing lower part of front lock to lock carrier Item 1 Tightening torque 8 Nm (6 ftlb.)
G15563900Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
