Front Lid

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance
Nuts securing front lid to front lid hinge Item 2 Tightening torque 14 Nm (10.5 ftlb.)

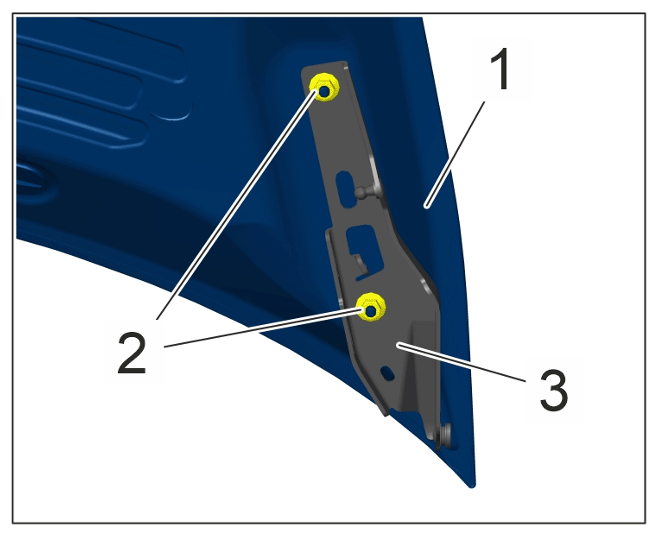

G15563902Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front lid
