Front Lid Hinge

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance
Screws securing front lid hinge to body Item 2 Tightening torque 20 Nm (15 ftlb.)

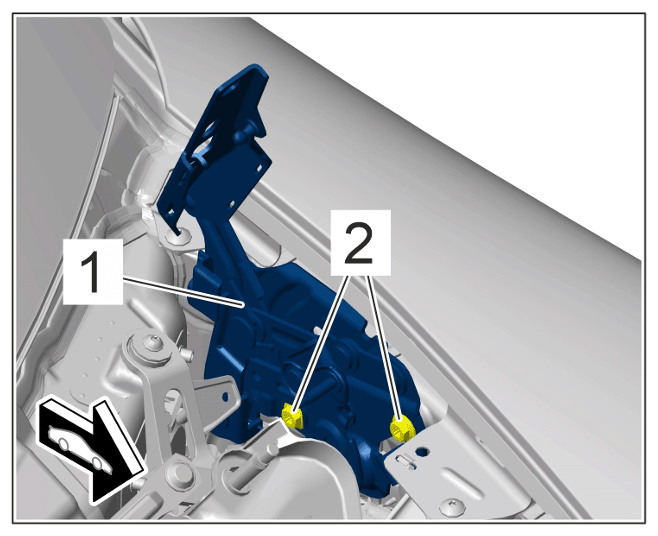

G15563903Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front lid hinge
