Anti-Roll Bar

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

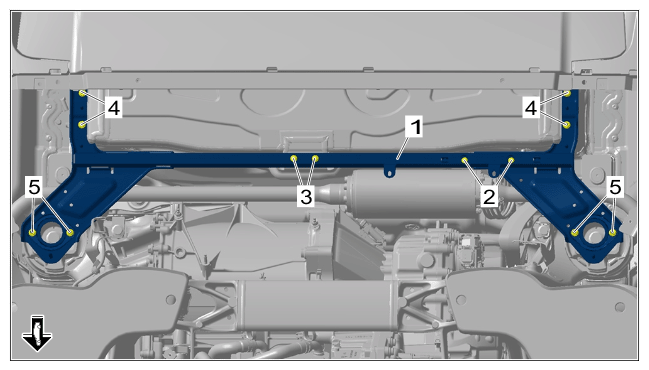

Location	Description	Type	Basic value
Screw securing strut to body	Item 5	Tightening torque	30 Nm (22 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Strut
Nut securing strut to body	Item 4	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Strut
Screw securing strut to body	Item 3	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Strut
Screw securing strut to body	Item 2	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Strut
