Front Underbody Cover

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance
Screws securing underbody cover to body Item 1 Tightening torque 2.5 Nm (1.8 ftlb.)

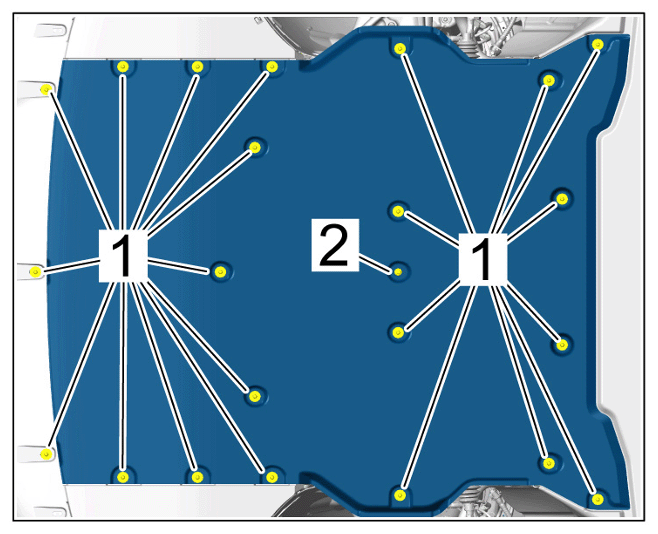

G15563888Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
