Dashboard Bracket

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Nuts securing dashboard bracket to body	Item 2	Tightening torque	20 Nm (15 ftlb.)

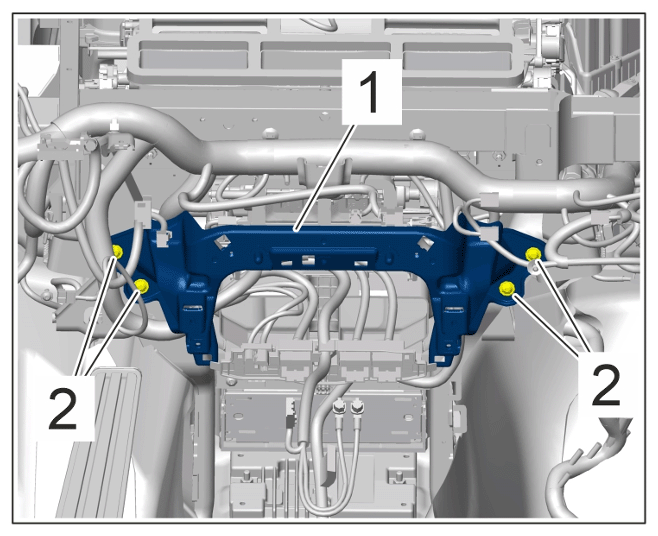

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts at the sides
Screws securing dashboard bracket at the top to body	Item 4	Tightening torque	20 Nm (15 ftlb.)

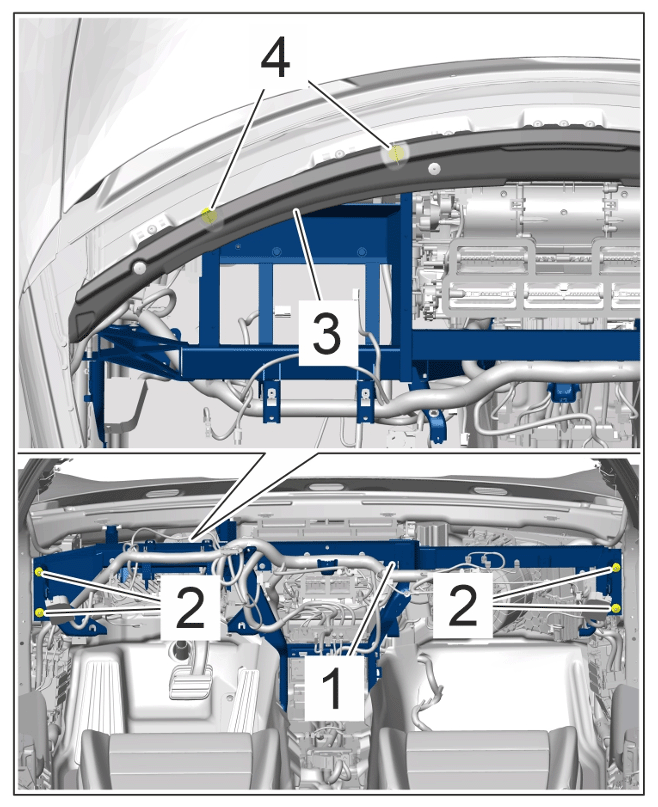

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Top screws
Screws securing dashboard bracket at the bottom to body	Item 3	Tightening torque	20 Nm (15 ftlb.)

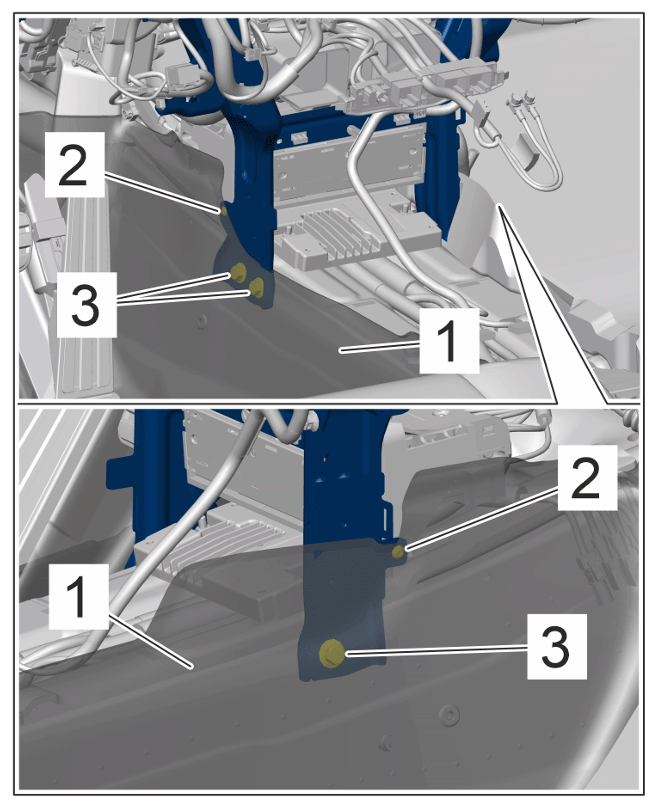

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bottom screws
Nuts securing dashboard bracket to heater/air-conditioning unit	Item 2	Tightening torque	8 Nm (6 ftlb.)

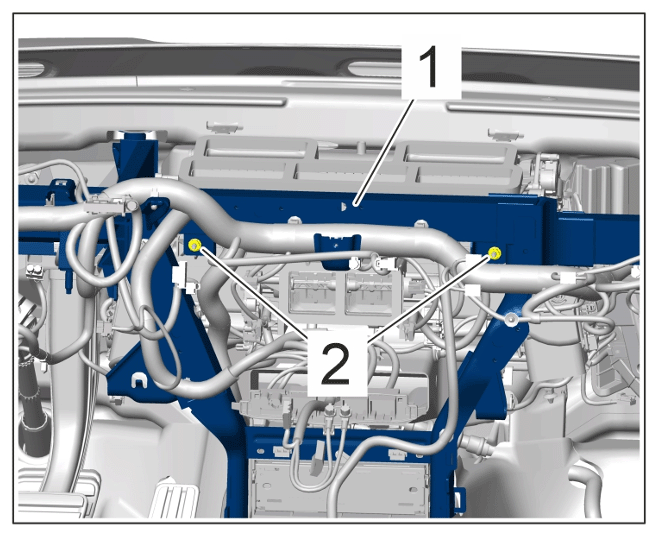

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts
Screws securing centre console holder to dashboard bracket	Item 2	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Centre console holder
