Luggage Compartment Liner

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance
Screws securing luggage compartment liner to body Item 1 Tightening torque 8 Nm (5.9 ftlb.)

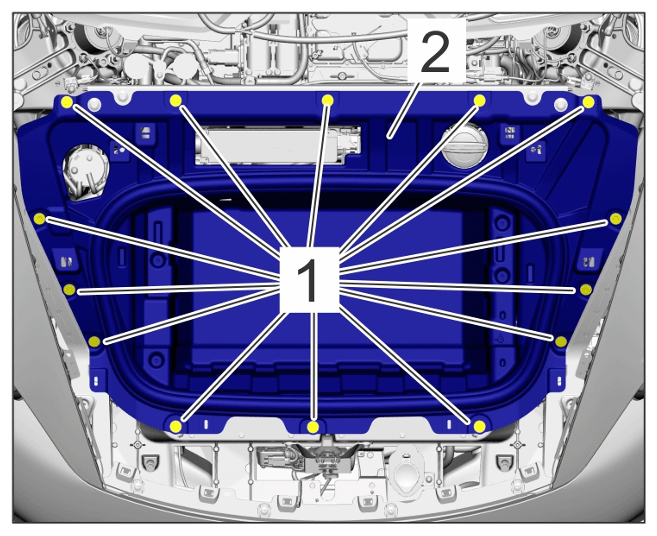

G15563857Courtesy of PORSCHE CARS NORTH AMERICA, INC.
