Lock Carrier

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value

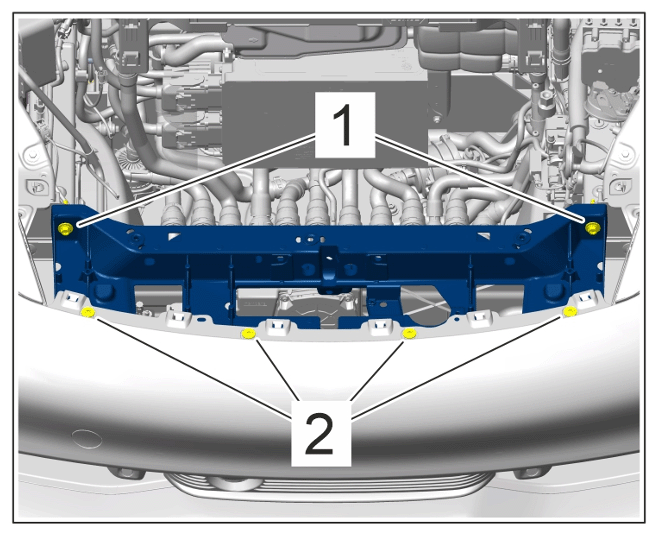

Screws securing pull strap to lock carrier	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Screws securing lock carrier to impact absorber	Item 1	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

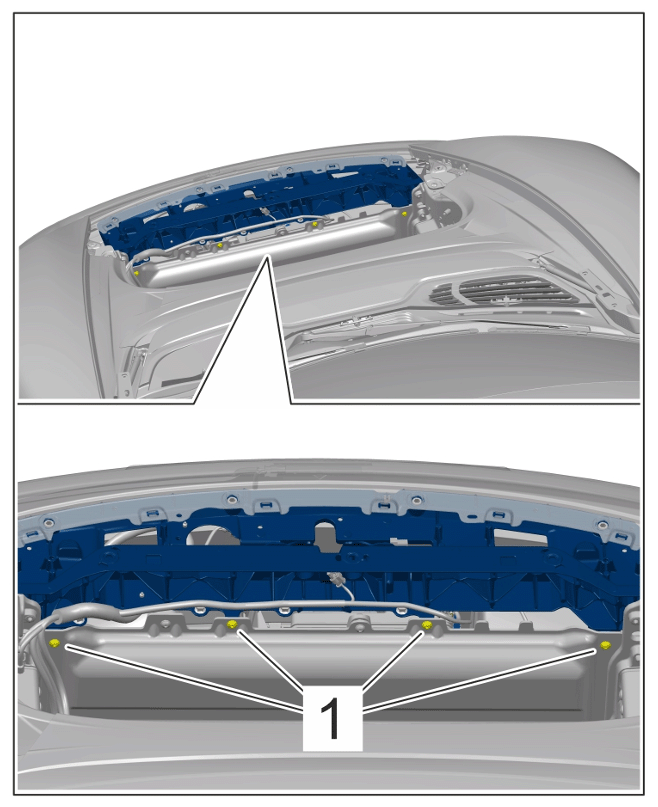

Screws securing front apron to lock carrier	Item 2	Tightening torque 5.5 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

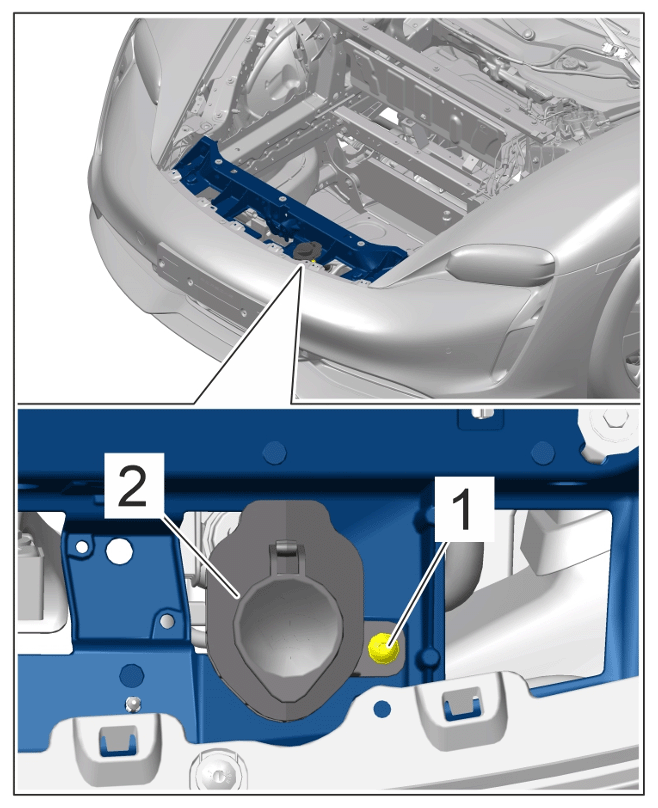

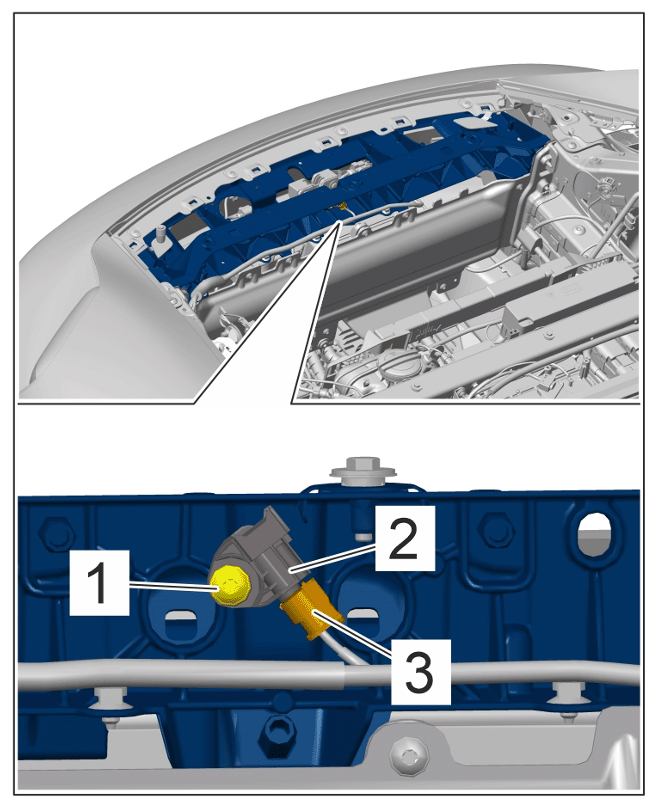

Screw securing sensor to lock carrier	Item 1	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front sensor
Screw securing washer-fluid reservoir to lock carrier	Item 1	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Washer-fluid reservoir

Location	Description	Type	Basic value	Tolerance

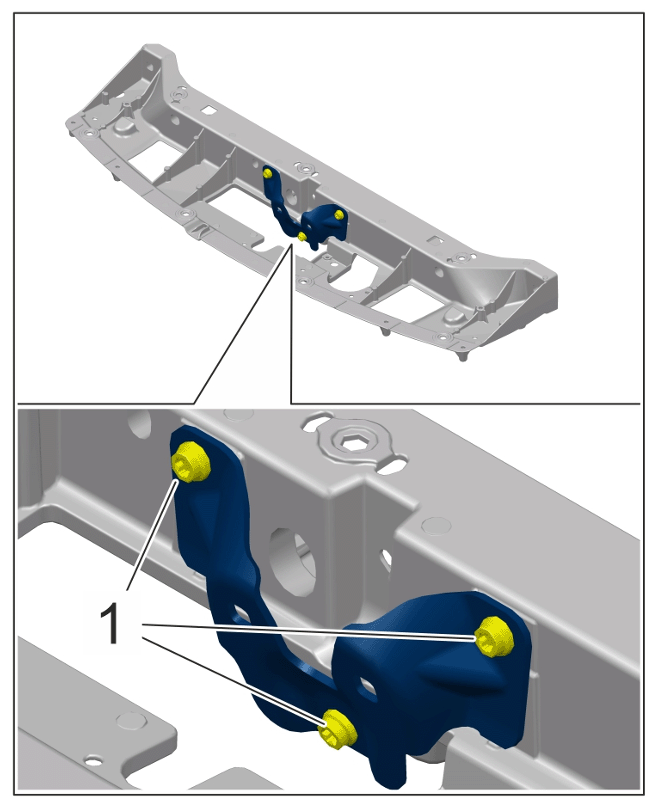

Screw securing bracket reinforcement to lock carrier	Item 1	Tightening torque	13 Nm (9.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
