Front Wheel Housing Liner

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value

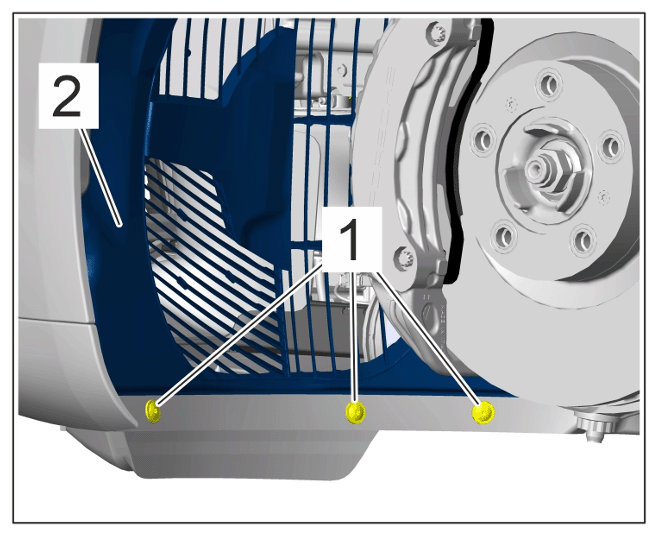

Bottom screws securing front wheel housing liner to underbody cover	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

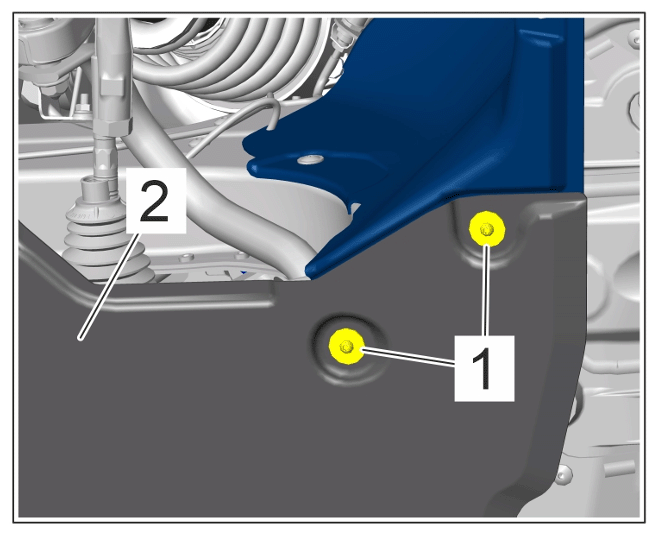

Bottom screws securing front wheel housing liner to front apron	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bottom screws

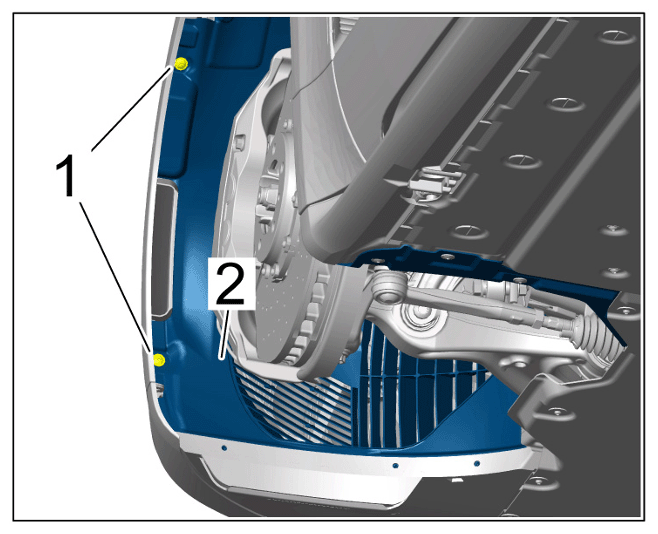

Side screws securing front wheel housing liner to body	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

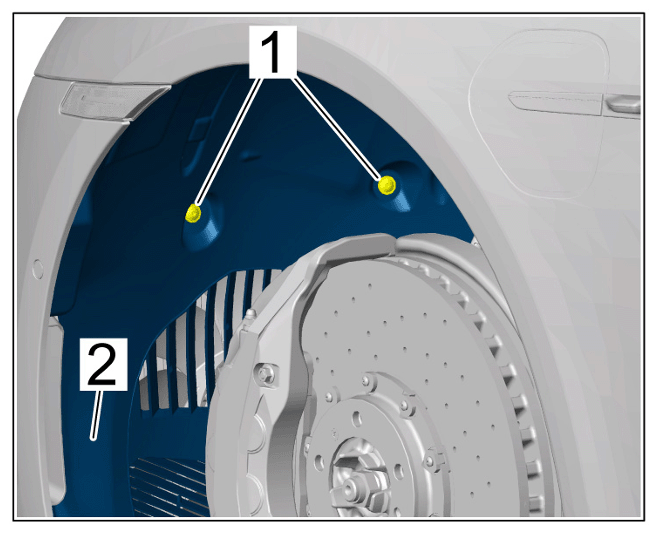

Top screws securing front wheel housing liner to body	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

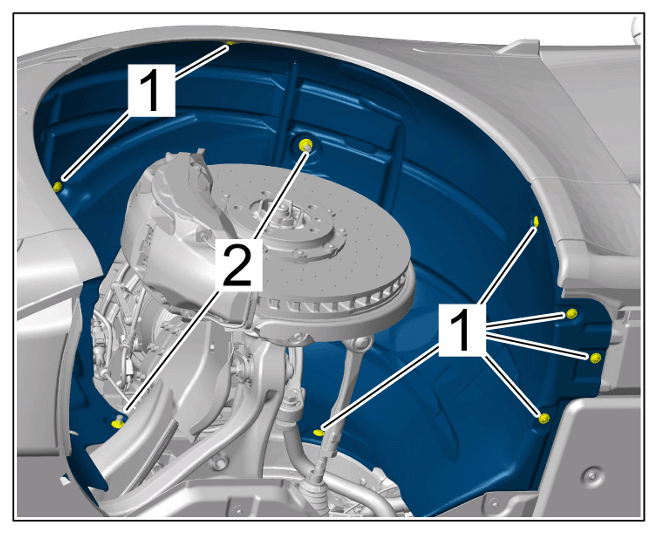

Bottom screws securing front wheel housing liner to body	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Bottom nuts securing front wheel housing liner to body	Item 2	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

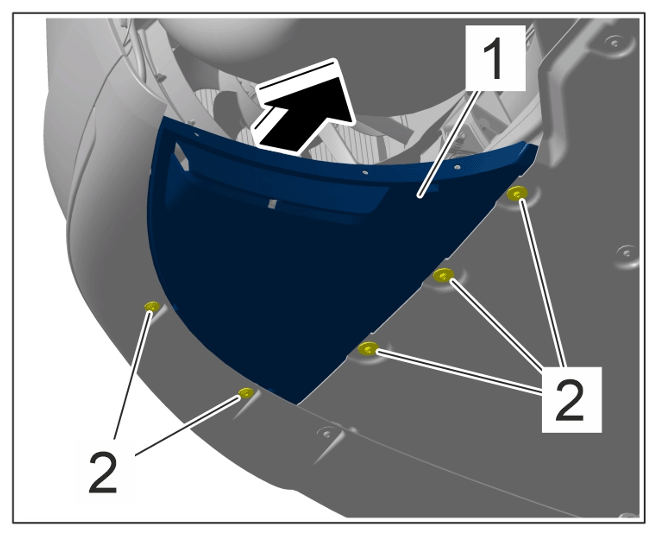

Screws securing front wheel housing liner (front section) to front apron and front underbody panelling	Item 2	Tightening torque	2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wheel housing liner (front section)
