Front Axle

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Bolt securing cross member to body (front)	Initial tightening/Item 1/Always replace bolts following removal	Tightening torque	40 Nm (30 ftlb.)

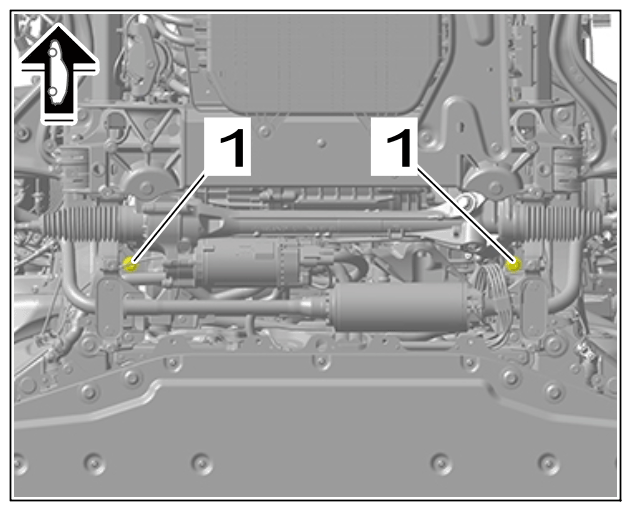

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bolts near steering gear
Bolt securing cross member to body (front)	Final tightening/Item 1/Always replace bolts following removal	Torque angle	+ 90 °

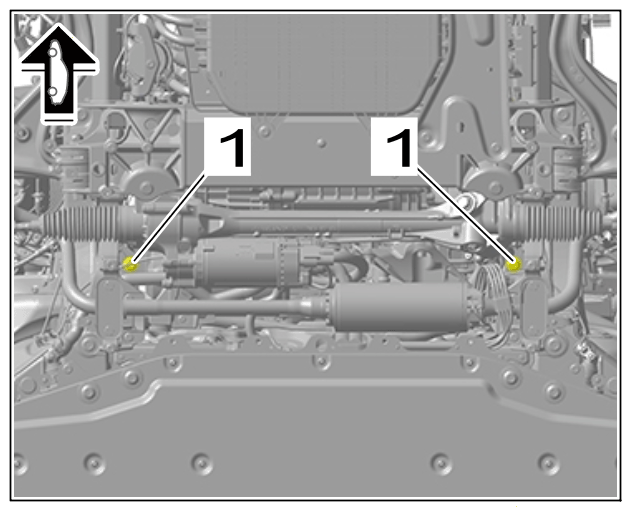

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bolts near steering gear
Bolt securing cross member to body (bottom)	Initial tightening/Item 1/Always replace bolts following removal	Tightening torque	50 Nm (37 ftlb.)

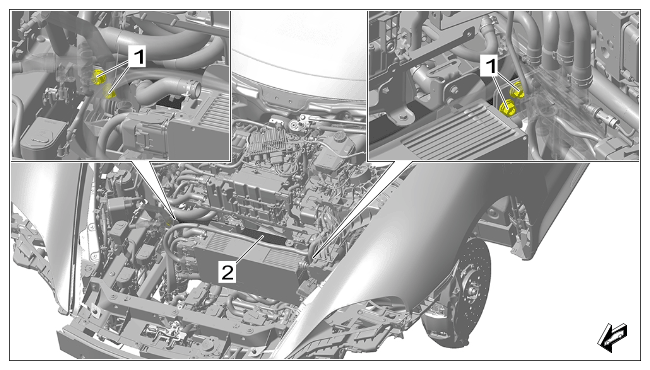

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cross member bolts
Bolt securing cross member to body (bottom)	Final tightening/Item 1/Always replace bolts following removal	Torque angle	+ 180 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cross member bolts
Nut securing cross panel to body	Item 3	Tightening torque	8 Nm (6 ftlb.)

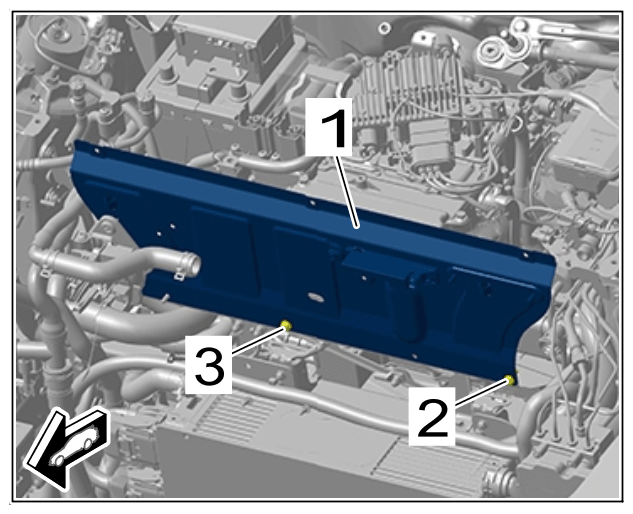

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cross panel
Screw securing cross panel to body	Item 2	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cross panel
Nut securing ground lines to floor plate	Item 3	Tightening torque	8 Nm (6 ftlb.)

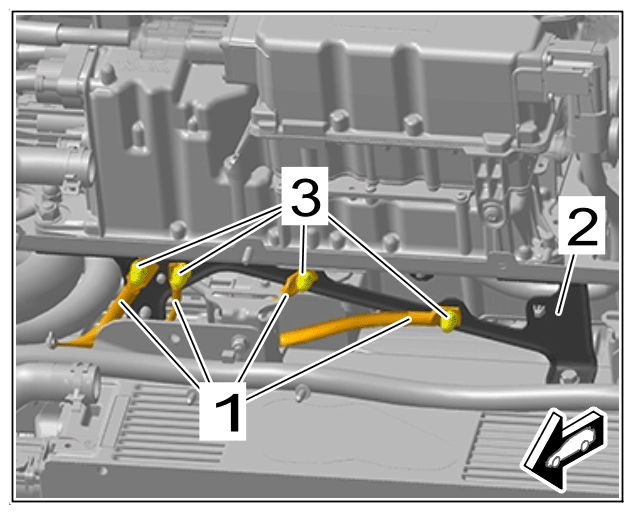

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground lines to floor plate
Nut on front PDCC ground line	Item 3	Tightening torque	5 Nm (3.5 ftlb.)

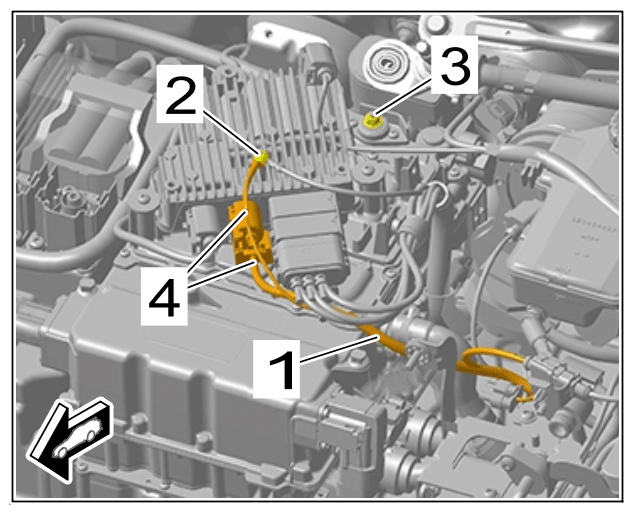

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric wire harness near brake fluid reservoir
