Tail Light

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance

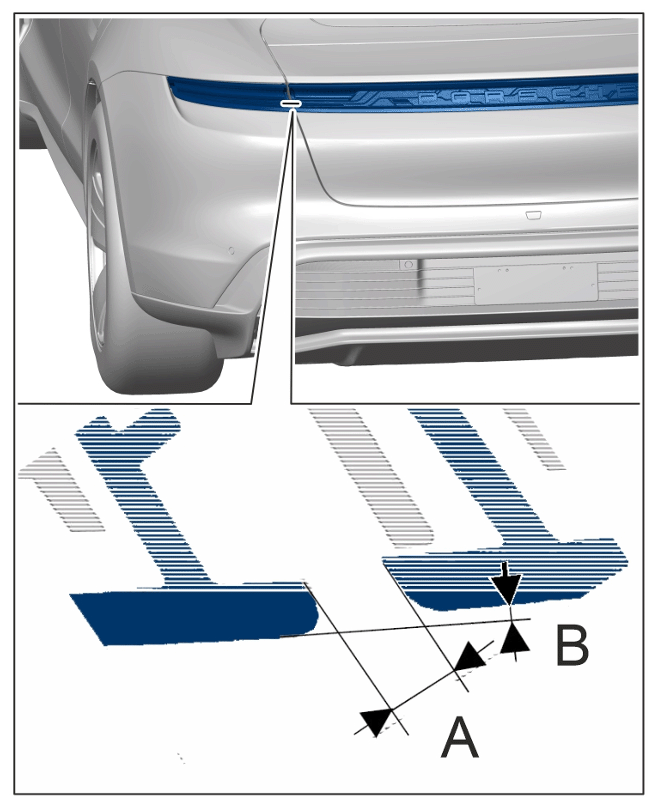

Tail/brake/direction indicator/reversing lights 1 (SBBR1) to Tail/brake/direction indicator/reversing lights 2 (SBBR2) (H13)	Dimension A	Gap dimension	4 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tail/brake/direction indicator/reversing lights 1 (SBBR1) to Tail/brake/direction indicator/reversing lights 2 (SBBR2)
Tail/brake/direction indicator/reversing lights 1 (SBBR1) to Tail/brake/direction indicator/reversing lights 2 (SBBR2) (H13)	Dimension B	Offset	1 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tail/brake/direction indicator/reversing lights 1 (SBBR1) to Tail/brake/direction indicator/reversing lights 2 (SBBR2)

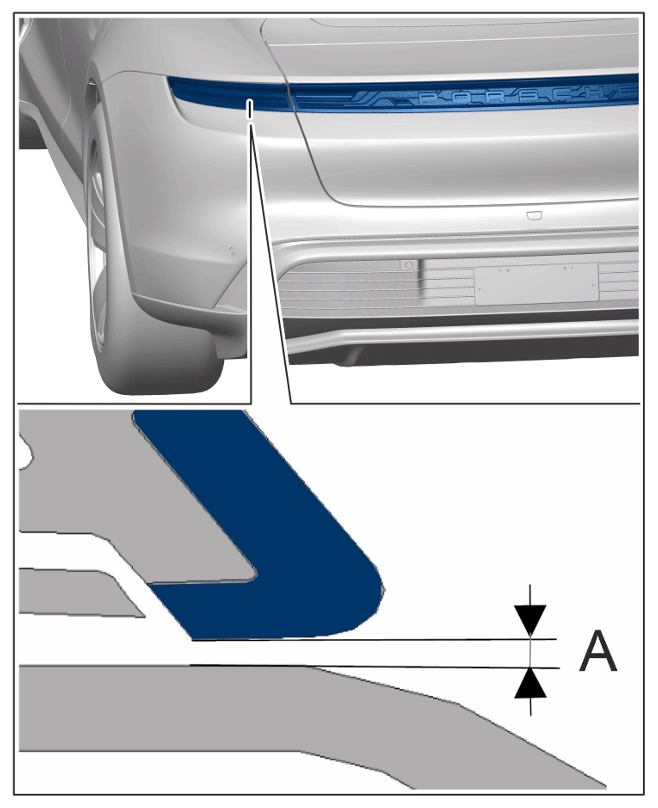

Tail/brake/direction indicator/reversing lights 1 (SBBR1) to rear apron (H14)	Dimension A	Gap dimension	0.8 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tail/brake/direction indicator/reversing lights 1 (SBBR1) to rear apron

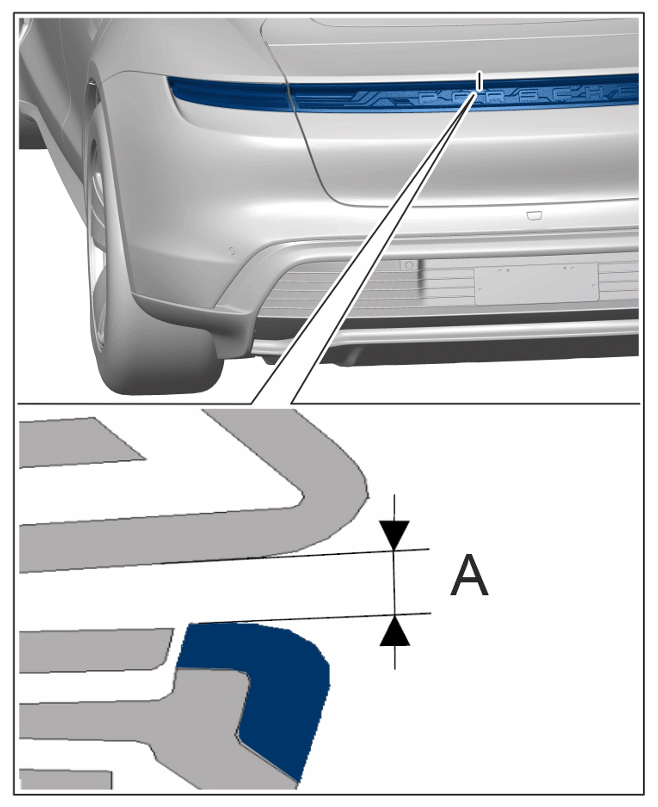

Tail/brake/direction indicator/reversing lights 2 (SBBR2) to tailgate (H20)	Dimension A	Gap dimension	1 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tail/brake/direction indicator/reversing lights 2 (SBBR2) to tailgate
