Rear Lid

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance

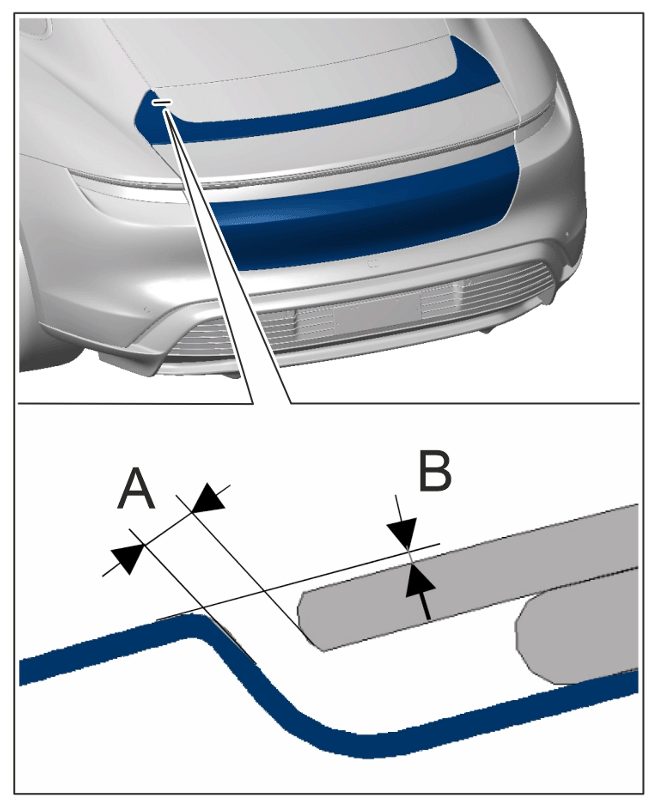

Tailgate to side panel (H42)	Dimension A	Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tailgate to side panel
Tailgate to side panel (H42)	Dimension B	Offset	0 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tailgate to side panel

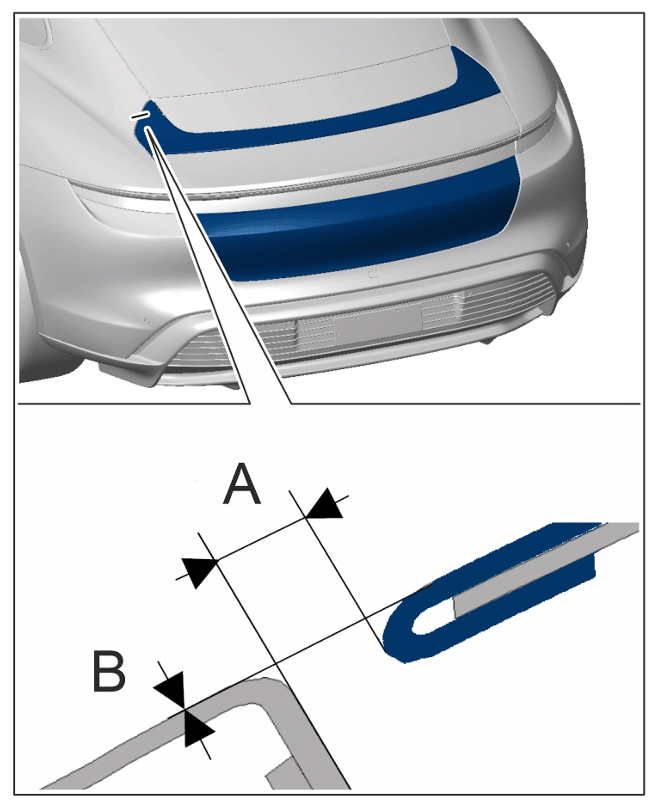

Tailgate to trim (H47_1)	Dimension A	Gap dimension	3 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tailgate to trim
Tailgate to trim (H47_1)	Dimension B	Offset	0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tailgate to trim
