Technical Values: Overview

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Location	Des...	Type	Basic val...	Toleranc...

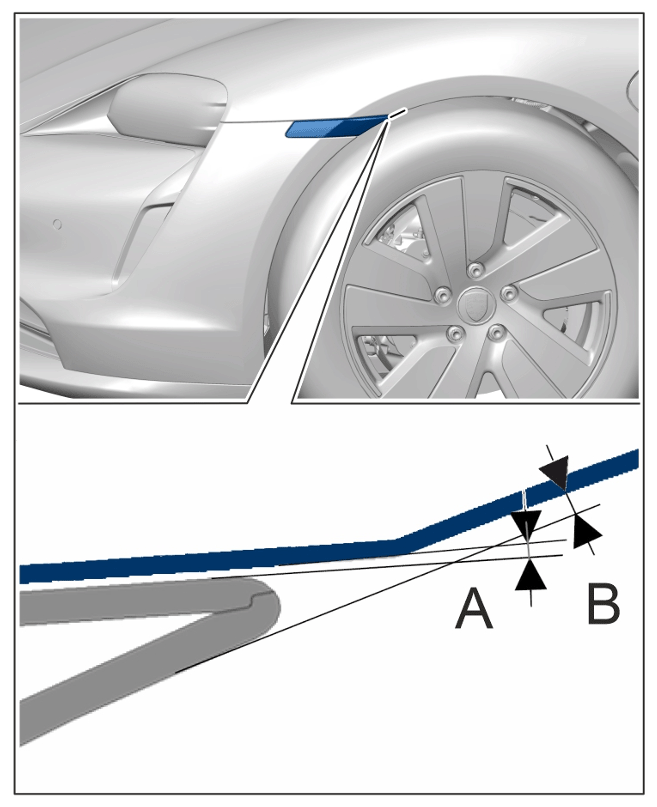

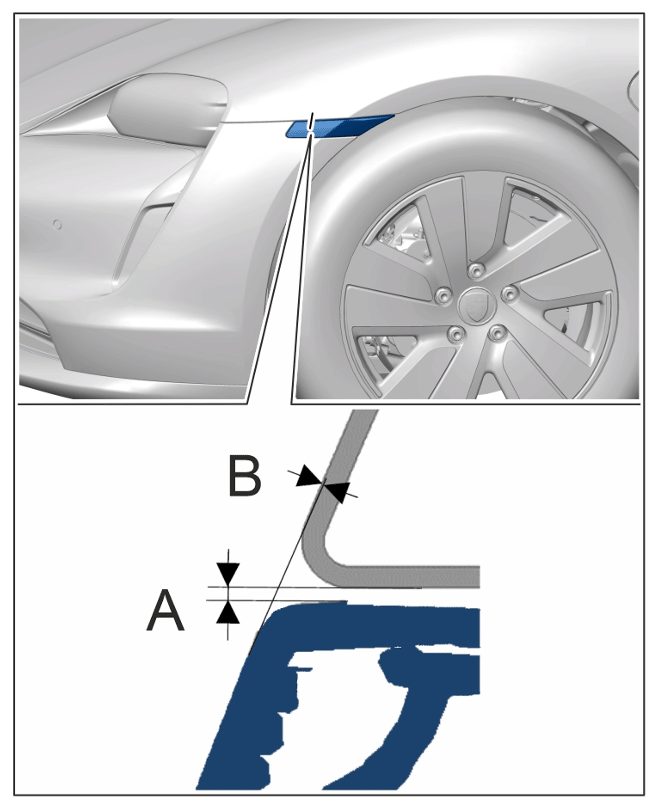

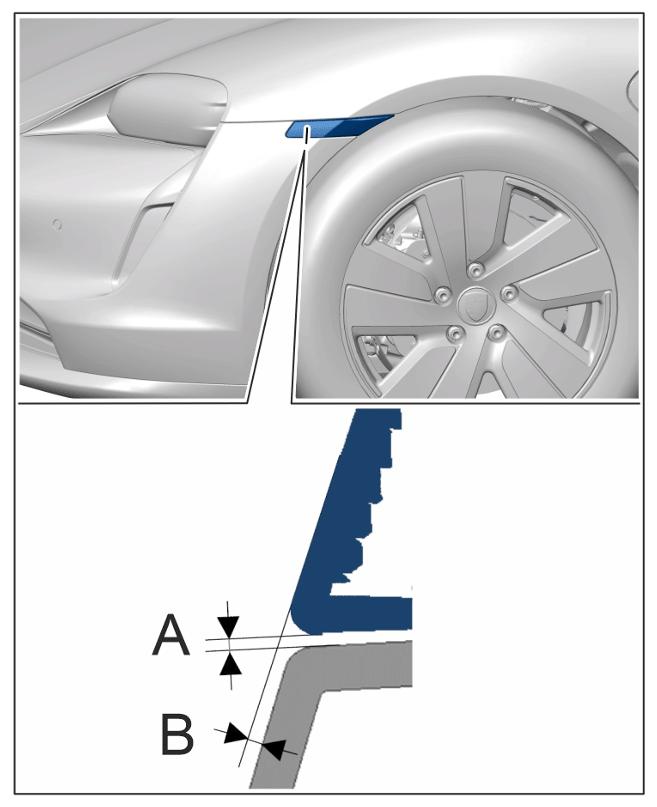

Wing to side marker (S13_1)	Dimension A	Gap dimension	0.75 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to side marker
Wing to side marker (S13_1)	Dimension B	Offset	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to side marker
Wing to side marker (S13_2)	Dimension A	Gap dimension	0.75 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to side marker
Wing to side marker (S13_2)	Dimension B	Offset	- 2 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to side marker

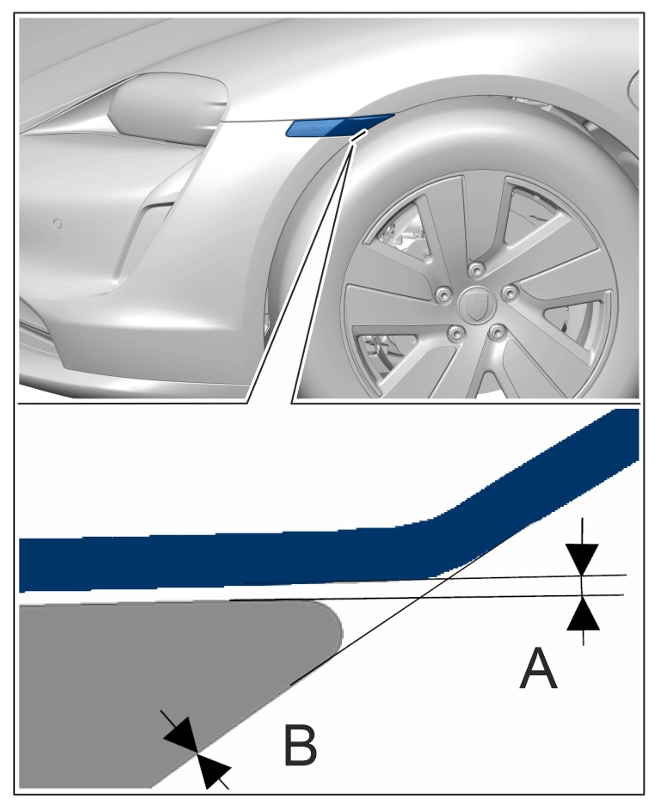

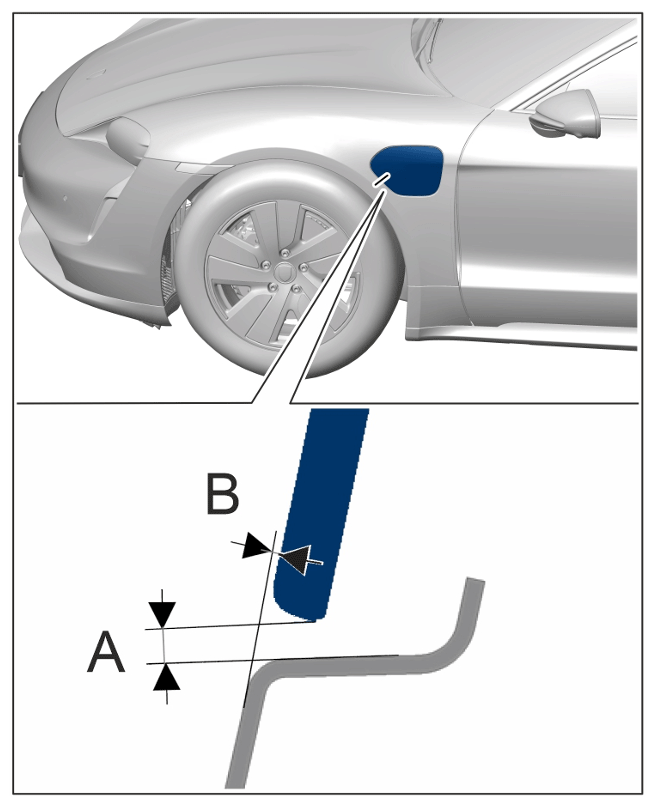

Front apron to side marker (S13a_1)	Dimension A	Gap dimension	0.75 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front apron to side marker
Front apron to side marker (S13a_1)	Dimension B	Offset	- 1 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front apron to side marker
Front apron to side marker (S13a_2)	Dimension A	Gap dimension	0.75 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front apron to side marker
Front apron to side marker (S13a_2)	Dimension B	Offset	0 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front apron to side marker

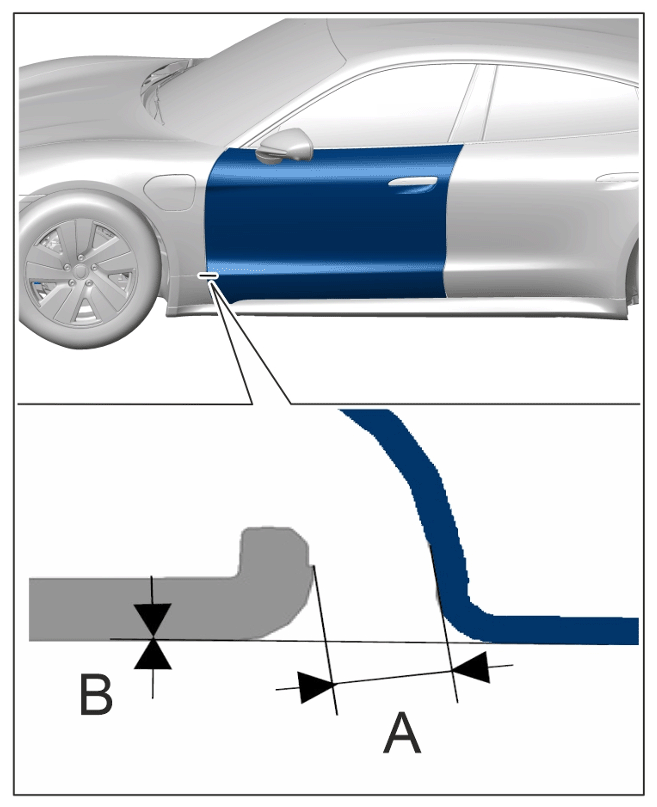

Wing trim to door (S20a)	Dimension A	Gap dimension	3.5 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing trim to door
Wing trim to door (S20a)	Dimension B	Offset	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing trim to door

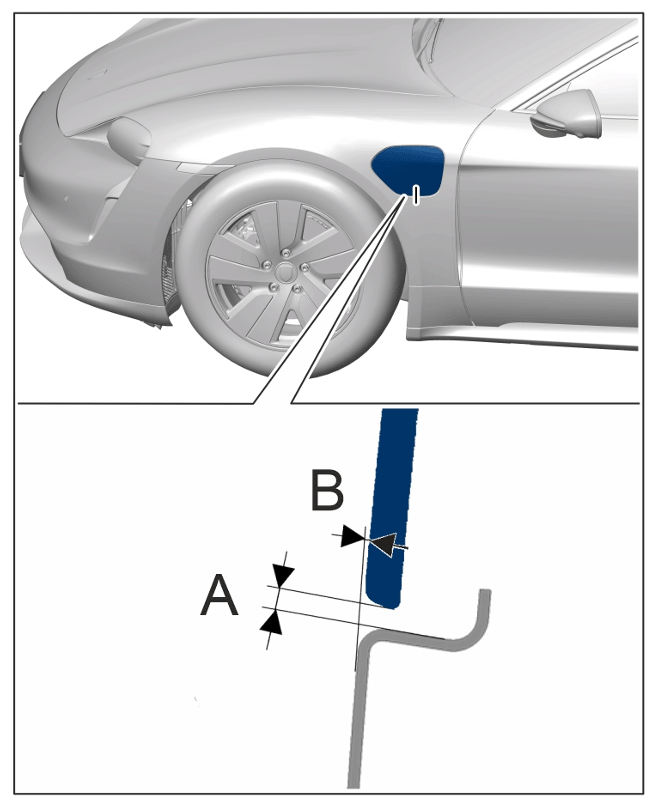

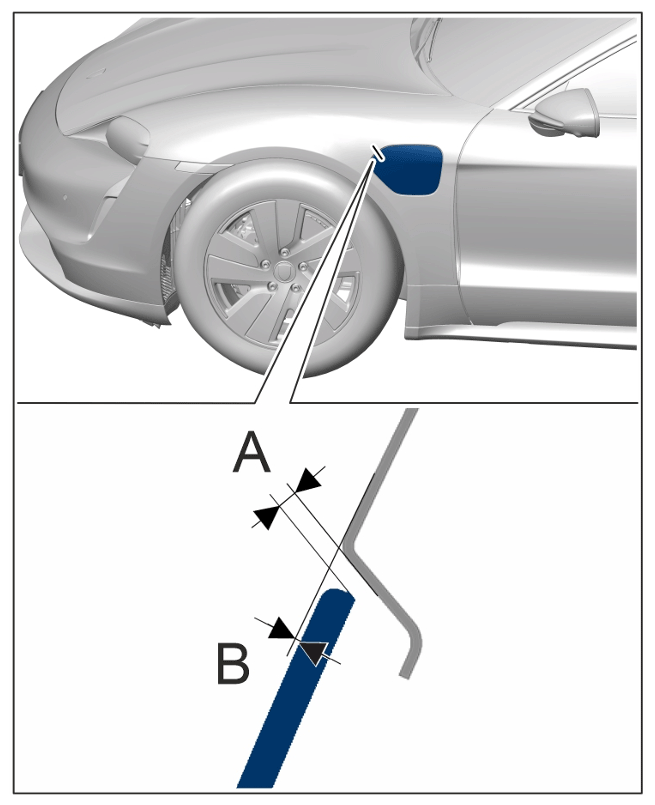

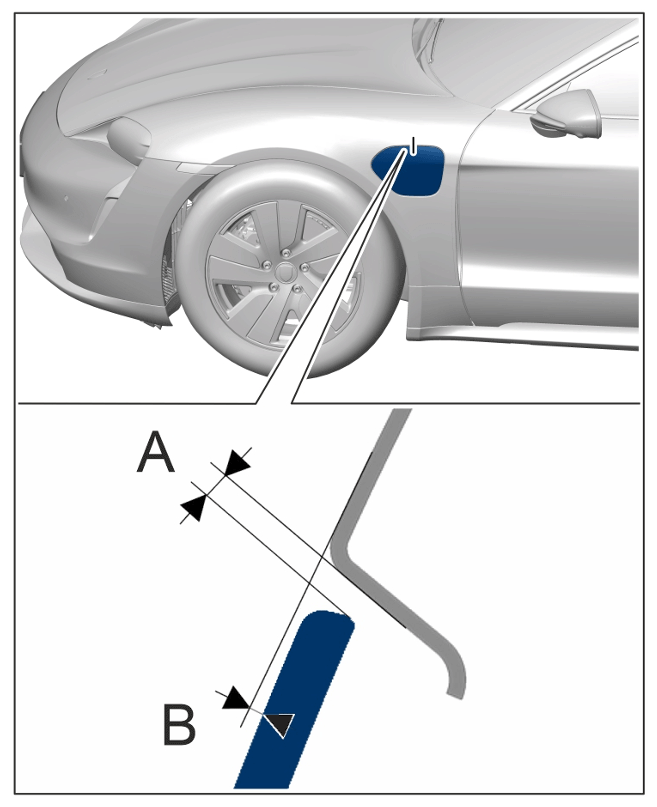

Wing to charge port door (S40)	Dimension A	Gap dimension	2.3 mm	+/- 0.3 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door
Wing to charge port door (S40)	Dimension B	Offset	0.5 mm	+/- 0.25 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door

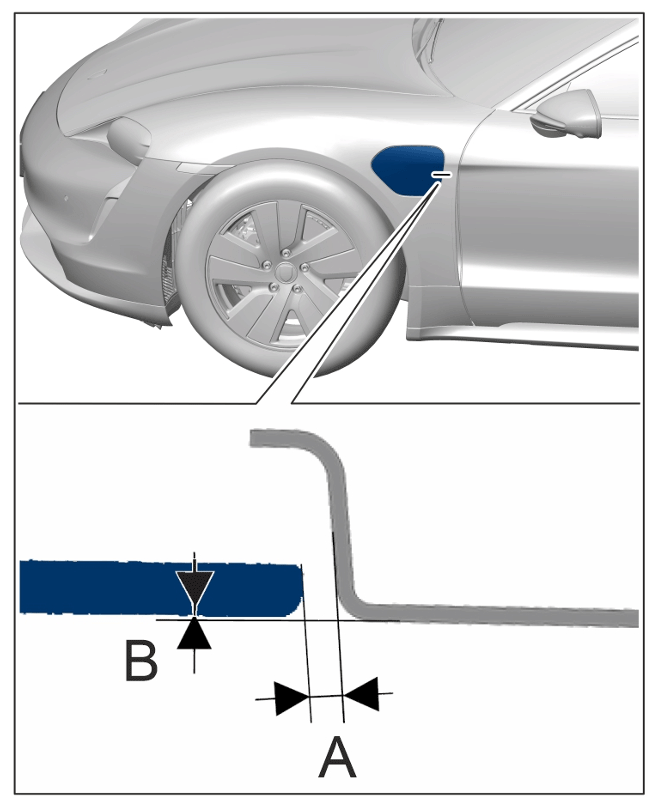

Wing to charge port door (S41)	Dimension A	Gap dimension	2.3 mm	+/- 0.3 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door
Wing to charge port door (S41)	Dimension B	Offset	0.4 mm	+/- 0.25 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door
Wing to charge port door (S42_0)	Dimension A	Gap dimension	2.3 mm	+/- 0.3 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door
Wing to charge port door (S42_0)	Dimension B	Offset	0.25 mm	+/- 0.25 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door
Wing to charge port door (S42_1)	Dimension A	Gap dimension	2.5 mm	+/- 0.3 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door
Wing to charge port door (S42_1)	Dimension B	Offset	0.25 mm	+/- 0.25 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door
Wing to charge port door (S43)	Dimension A	Gap dimension	2.5 mm	+/- 0.3 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door
Wing to charge port door (S43)	Dimension B	Offset	0.25 mm	+/- 0.25 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door
Wing to charge port door (S40)	Dimension A	Gap dimension	2 mm	+/- 0.3 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door
Wing to charge port door (S40)	Dimension B	Offset	0.5 mm	+/- 0.25 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door
Wing to charge port door (S41)	Dimension A	Gap dimension	2.3 mm	+/- 0.3 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door
Wing to charge port door (S41)	Dimension B	Offset	0.4 mm	+/- 0.25 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door
Wing to charge port door (S42_0)	Dimension A	Gap dimension	2.3 mm	+/- 0.3 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door
Wing to charge port door (S42_0)	Dimension B	Offset	0.25 mm	+/- 0.25 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door
Wing to charge port door (S42_1)	Dimension A	Gap dimension	2.2 mm	+/- 0.3 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door
Wing to charge port door (S42_1)	Dimension B	Offset	0.3 mm	+/- 0.25 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door
Wing to charge port door (S43)	Dimension A	Gap dimension	2.3 mm	+/- 0.3 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door
Wing to charge port door (S43)	Dimension B	Offset	0.25 mm	+/- 0.25 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to charge port door

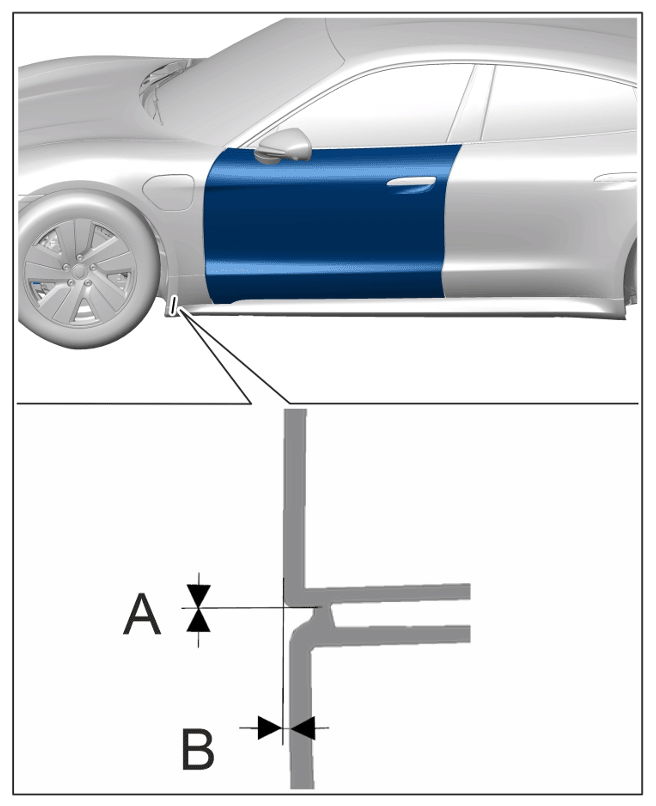

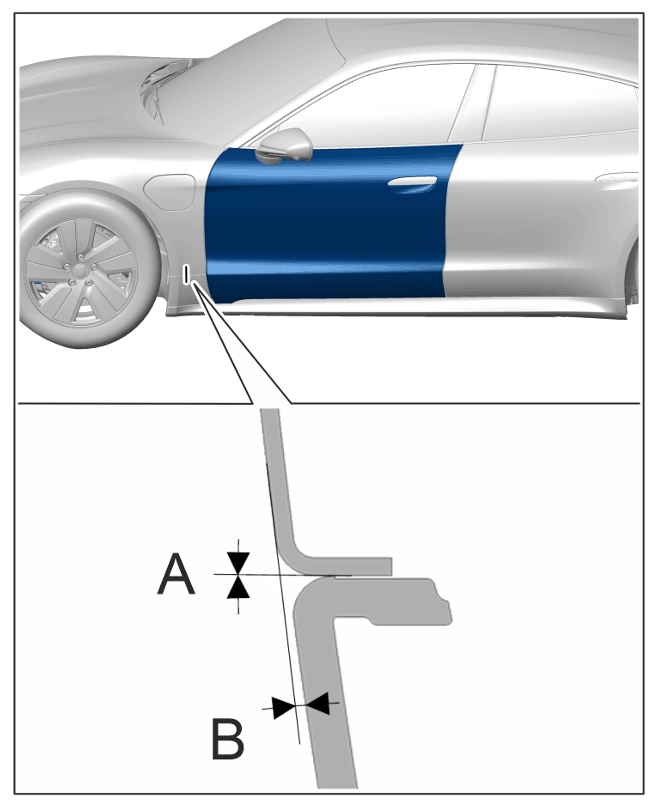

Door sill to cover on wing (S11_1)	Dimension A	Gap dimension	0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door sill to cover on wing
Door sill to cover on wing (S11_1)	Dimension B	Offset	- 0.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door sill to cover on wing

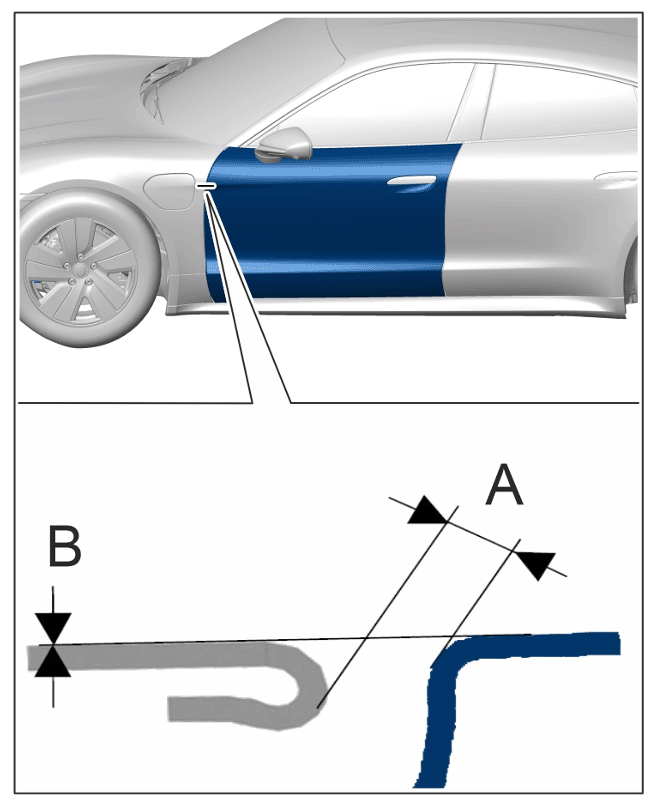

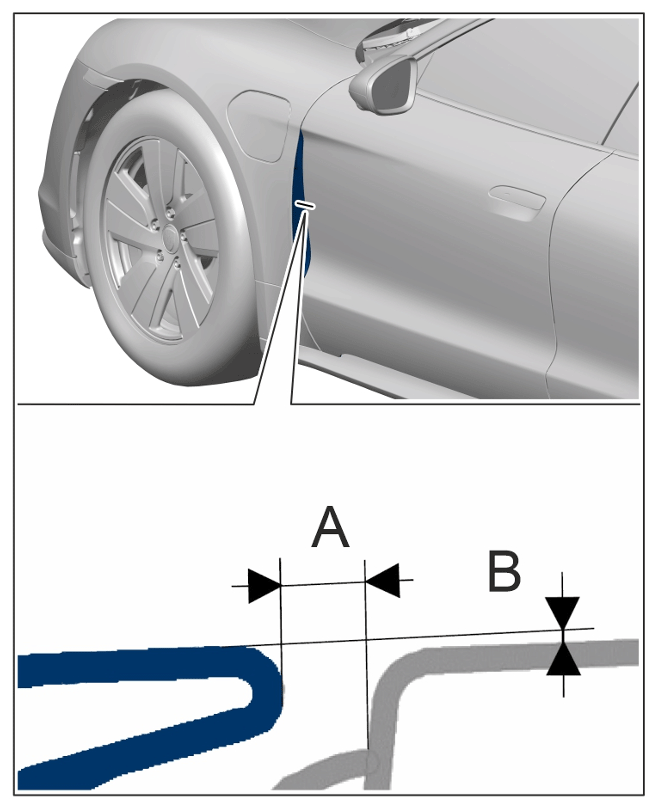

Front door to wing (S20_1)	Dimension A	Gap dimension	3.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to wing
Front door to wing (S20_1)	Dimension B	Offset	0 mm	- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to wing
Front door to wing (S20_2)	Dimension A	Gap dimension	4 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to wing
Front door to wing (S20_2)	Dimension B	Offset	0 mm	- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to wing

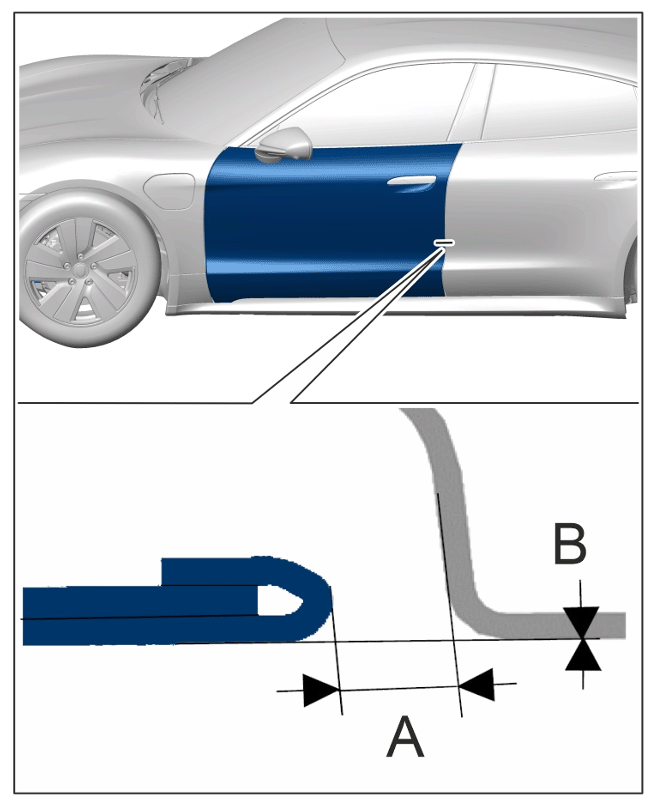

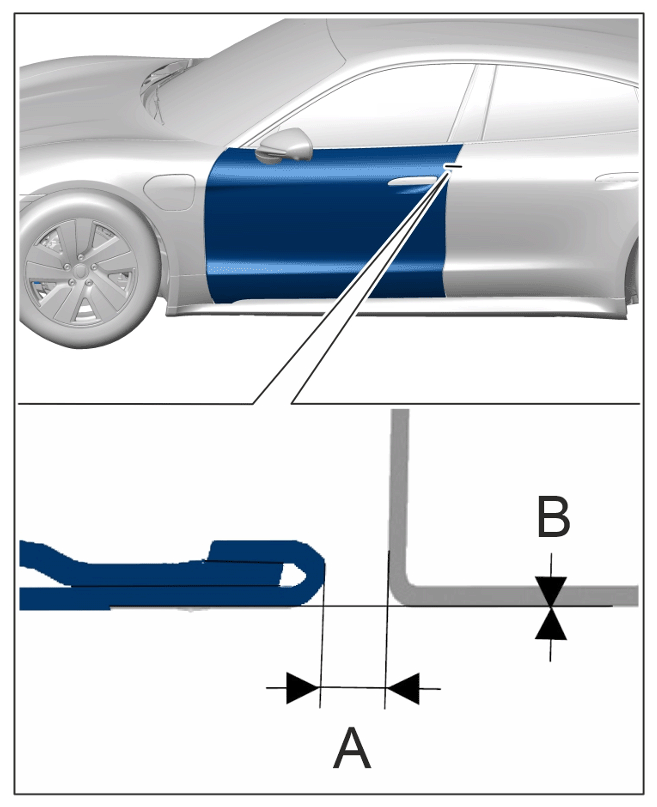

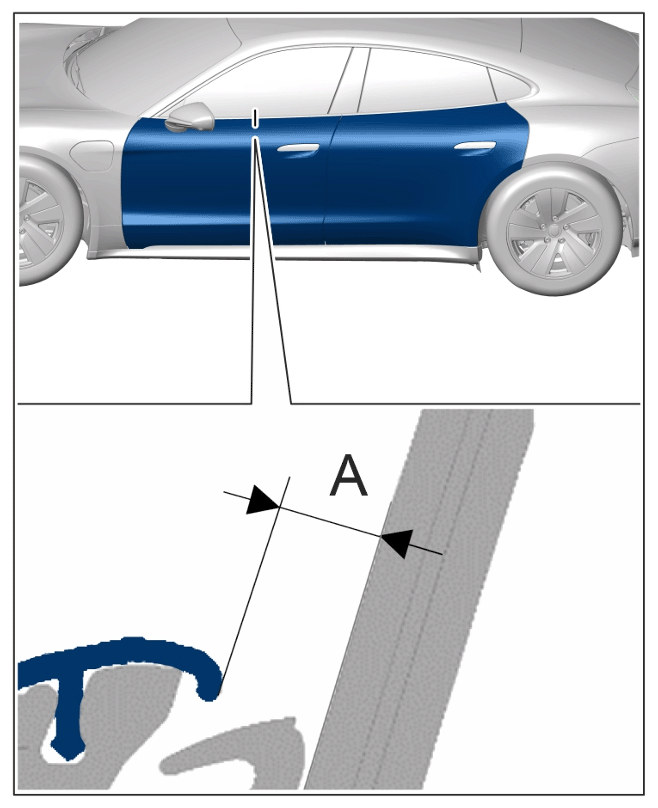

Front door to rear door (S22_0)	Dimension A	Gap dimension	4.2 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to wing
Front door to rear door (S22_0)	Dimension B	Offset	0 mm	0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to wing
Front door to rear door (S22_1)	Dimension A	Gap dimension	3.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to rear door
Front door to rear door (S22_1)	Dimension B	Offset	0 mm	0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to rear door
Wing to cover on wing (S29_2)	Dimension A	Gap dimension	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to cover on wing
Wing to cover on wing (S29_2)	Dimension B	Offset	0.5 mm	- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to cover on wing
Rear door to side panel (S25)	Dimension A	Gap dimension	3.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear door to side panel
Rear door to side panel (S25)	Dimension B	Offset	0 mm	0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear door to side panel

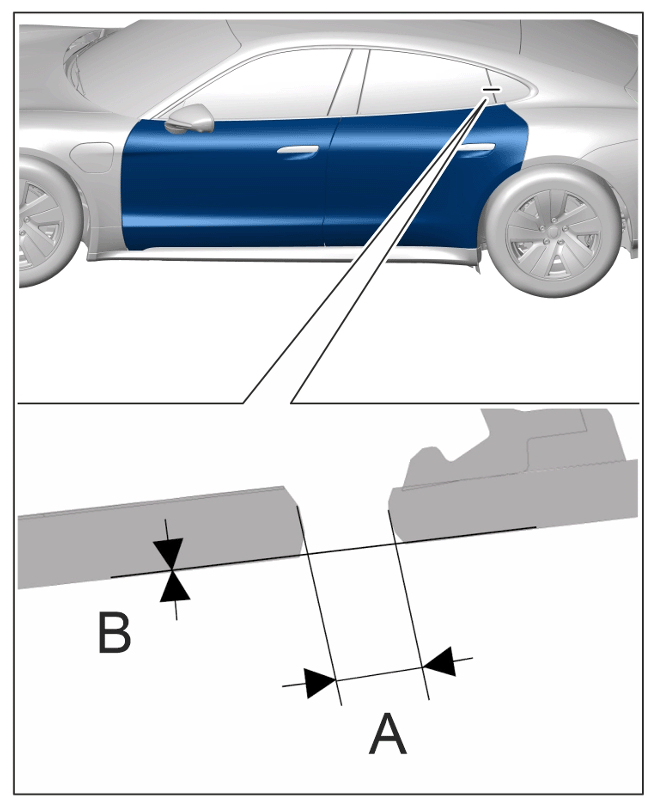

Side window to rear window (S26)	Dimension A	Gap dimension	7 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side window to rear window
Side window to rear window (S26)	Dimension B	Offset	0 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side window to rear window

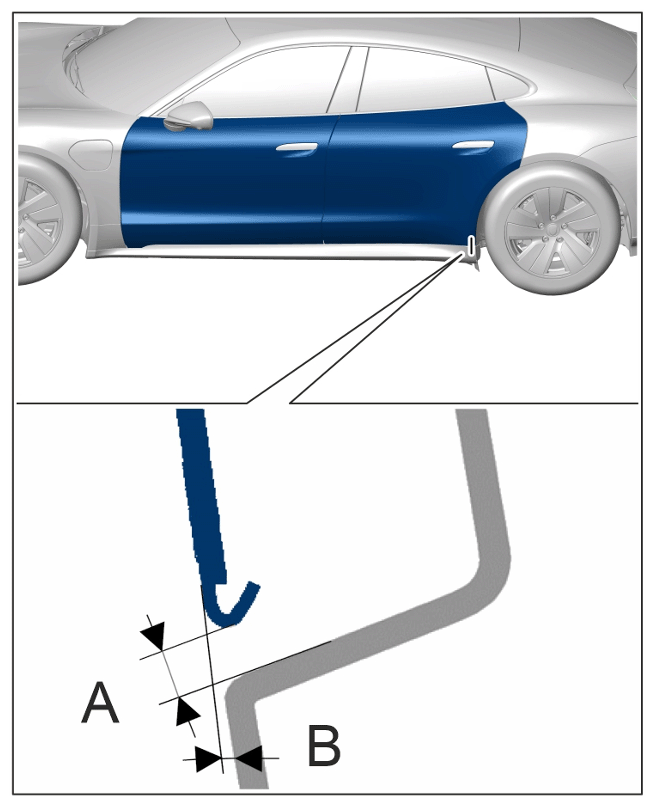

Rear door to door sill (S28)	Dimension A	Gap dimension	4.5 mm	+/- 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear door to door sill
Rear door to door sill (S28)	Dimension B	Offset	0.5 mm	+/- 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear door to door sill

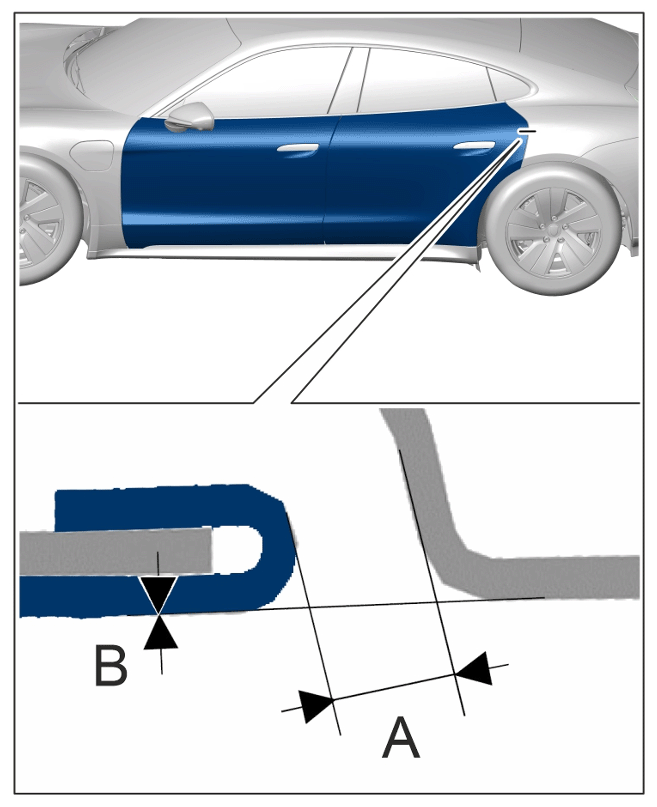

Front door to front door window (SK312)	Dimension A	Gap dimension	5 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to front door window

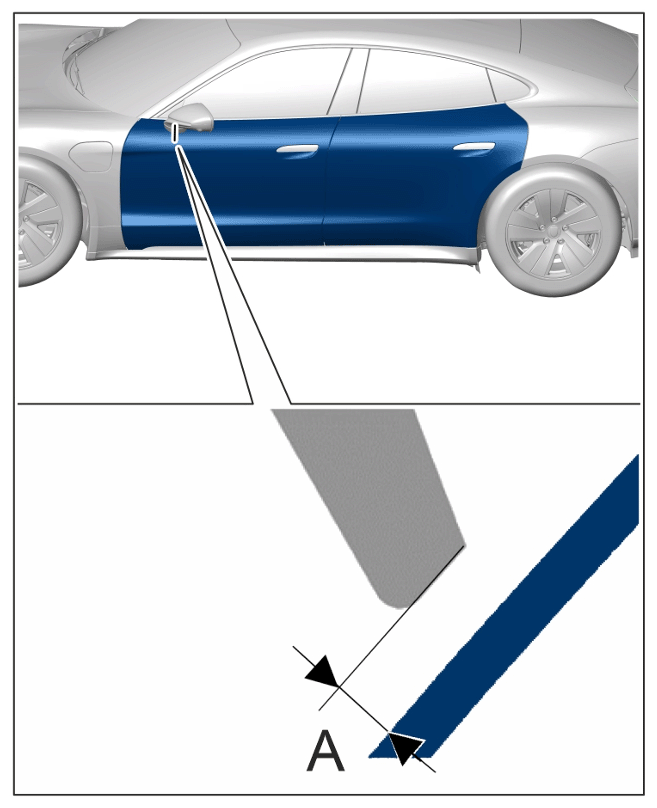

Mirror base to door (SP100)	Dimension A	Gap dimension	1.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mirror base to door

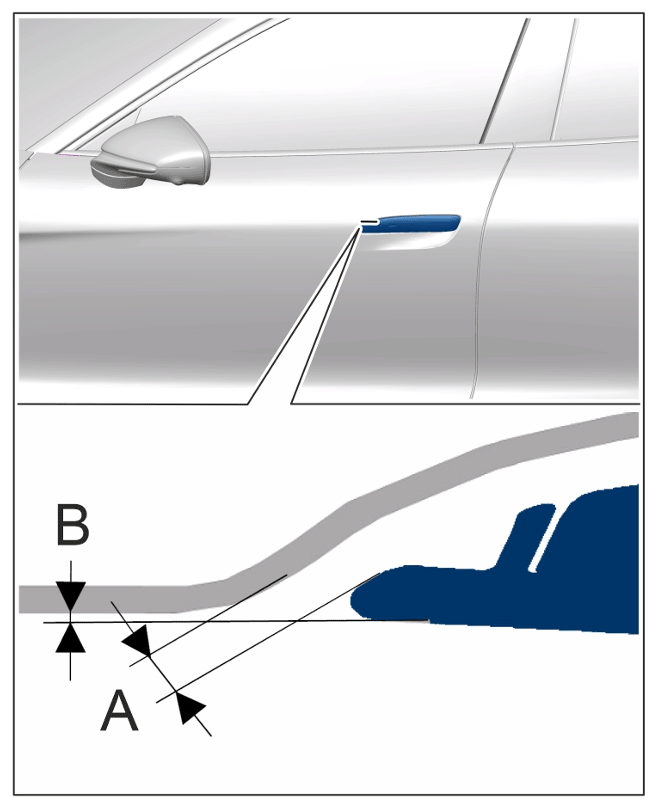

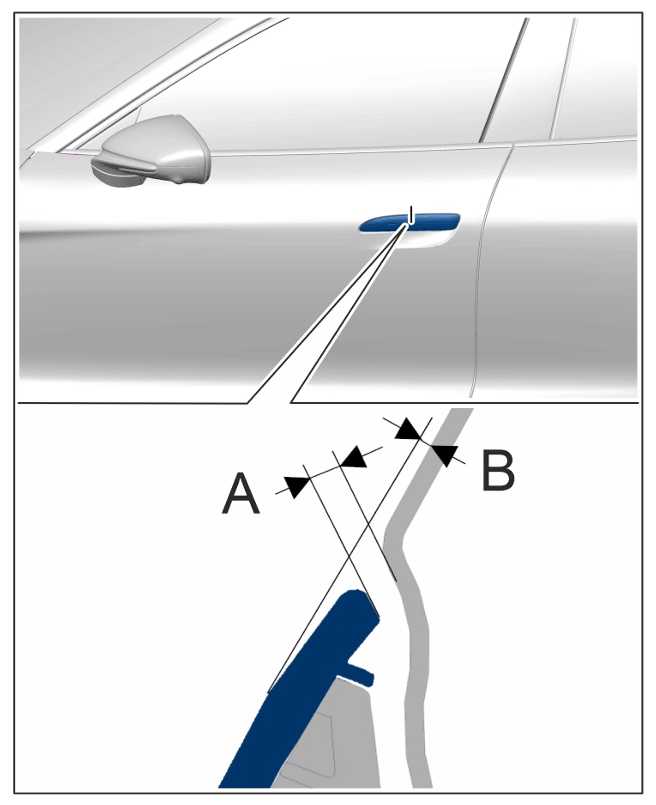

Front door to front door handle (SP310_1)	Dimension A	Gap dimension	1.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to front door handle
Front door to front door handle (SP310_1)	Dimension B	Offset	- 0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to front door handle
Front door to front door handle (SP310_2)	Dimension A	Gap dimension	1.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to front door handle
Front door to front door handle (SP310_2)	Dimension B	Offset	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to front door handle

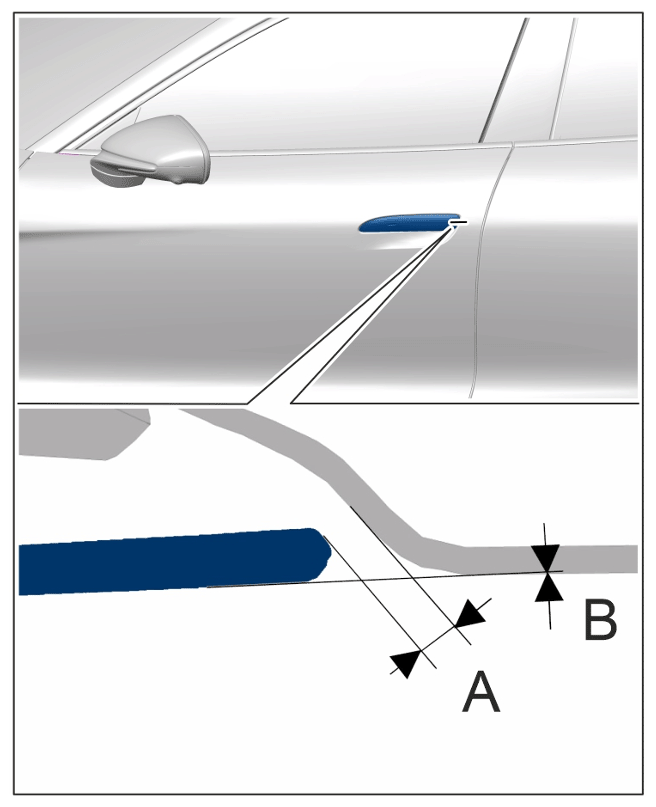

Front door to front door handle (SP311_1)	Dimension A	Gap dimension	1.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to front door handle
Front door to front door handle (SP311_1)	Dimension B	Offset	- 0.3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door to front door handle

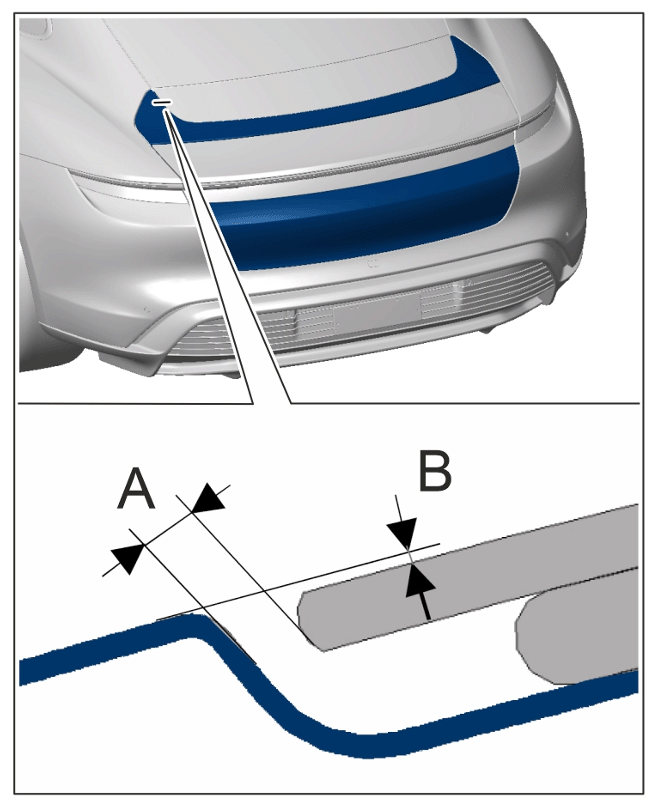

Tail/brake/direction indicator/reversing lights 1 (SBBR1) to Tail/brake/direction indicator/reversing lights 2 (SBBR2) (H13)	Dimension A	Gap dimension	4 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tail/brake/direction indicator/reversing lights 1 (SBBR1) to Tail/brake/direction indicator/reversing lights 2 (SBBR2)
Tail/brake/direction indicator/reversing lights 1 (SBBR1) to Tail/brake/direction indicator/reversing lights 2 (SBBR2) (H13)	Dimension B	Offset	1 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tail/brake/direction indicator/reversing lights 1 (SBBR1) to Tail/brake/direction indicator/reversing lights 2 (SBBR2)

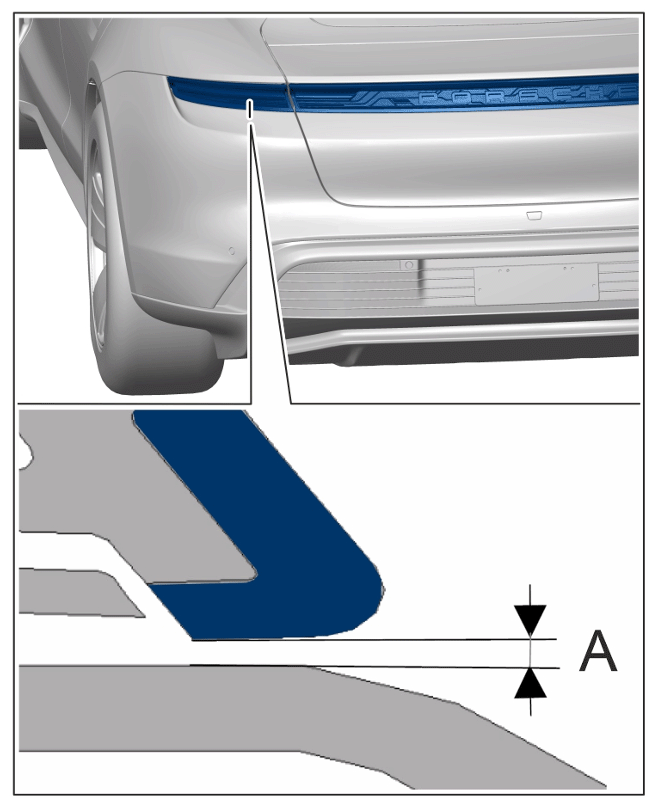

Tail/brake/direction indicator/reversing lights 1 (SBBR1) to rear apron (H14)	Dimension A	Gap dimension	0.8 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tail/brake/direction indicator/reversing lights 1 (SBBR1) to rear apron
Tail/brake/direction indicator/reversing lights 2 (SBBR2) to tailgate (H20)	Dimension A	Gap dimension	1 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tail/brake/direction indicator/reversing lights 2 (SBBR2) to tailgate
Tailgate to side panel (H42)	Dimension A	Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tailgate to side panel
Tailgate to side panel (H42)	Dimension B	Offset	0 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tailgate to side panel

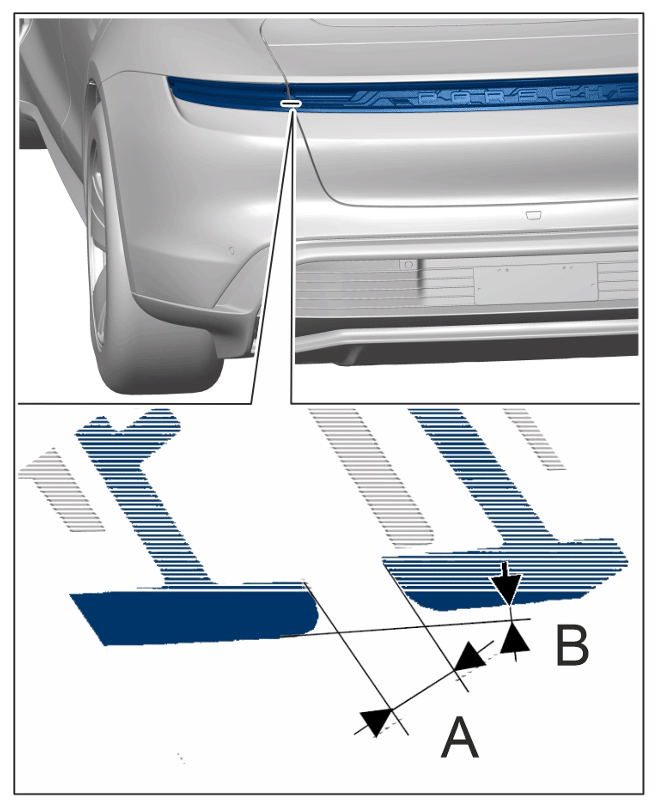

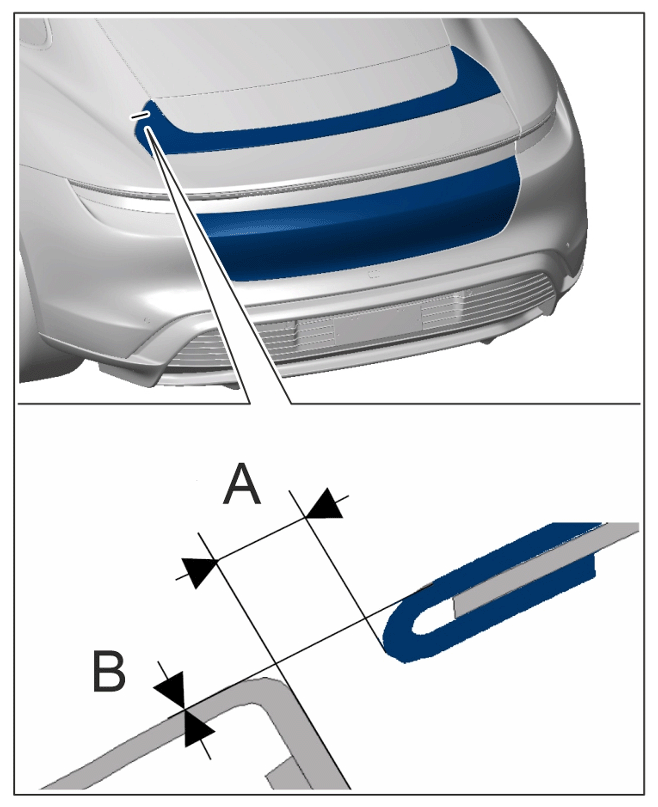

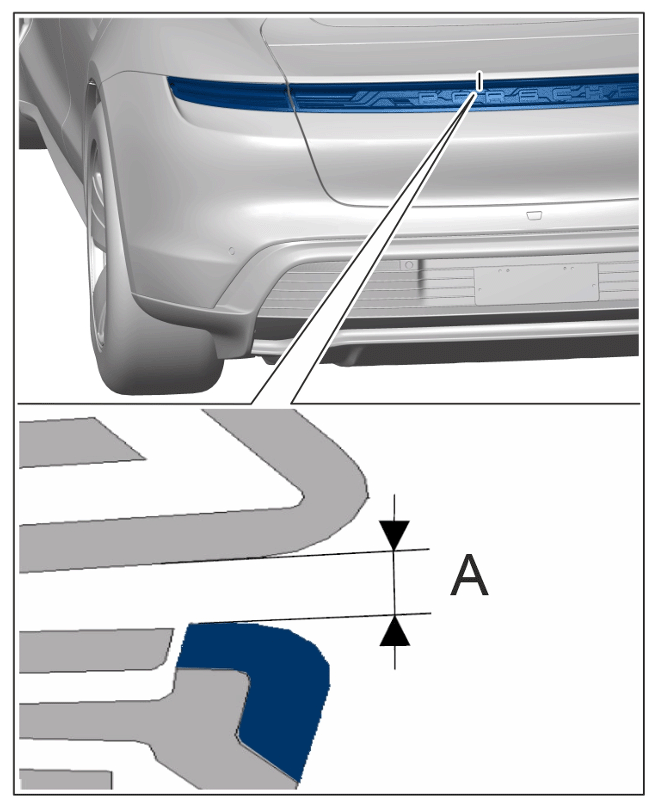

Tailgate to trim (H47_1)	Dimension A	Gap dimension	3 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tailgate to trim
Tailgate to trim (H47_1)	Dimension B	Offset	0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tailgate to trim
