Cavity Preservation
WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Apply standard cavity preservation as shown in the following illustrations.
- Also apply cavity preservation in the repair joint areas.
- Do not apply cavity preservation until you have completed the required painting and assembly work.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

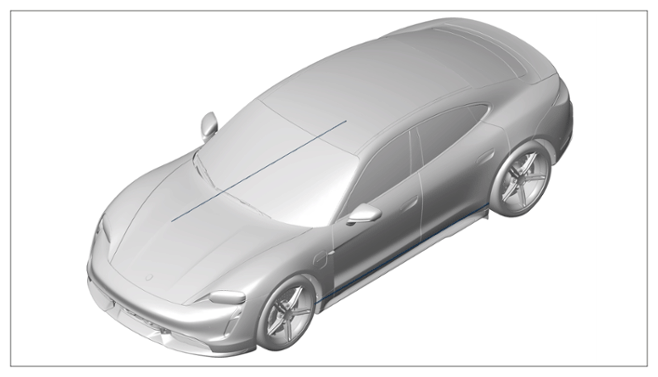

Installation position
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

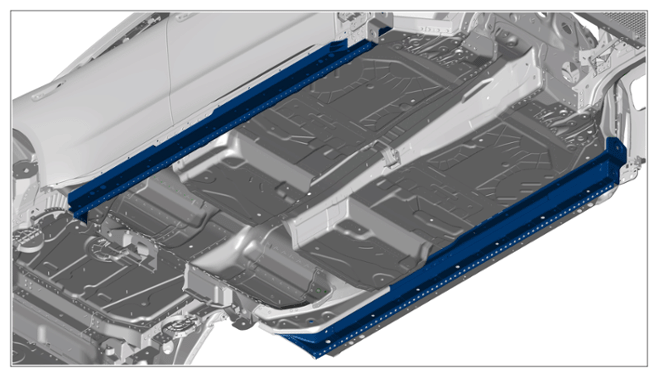

Inner door sill
