Removing Rear Wheel Housing Liner
WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

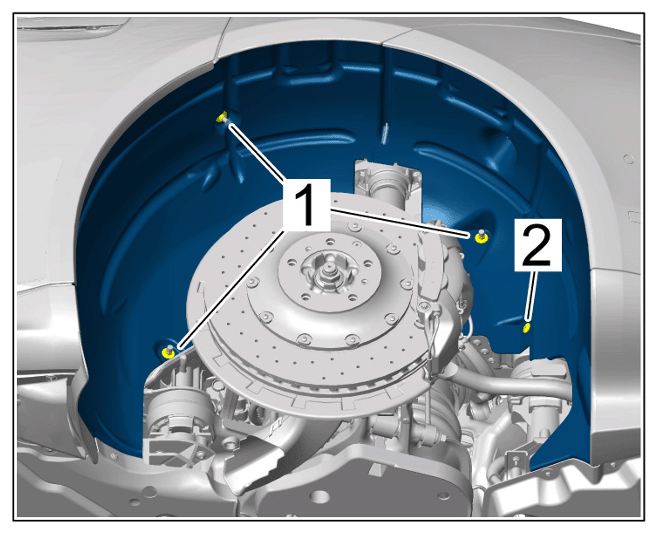

- Unscrew inner screw -2-
and unscrew inner nuts -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screws

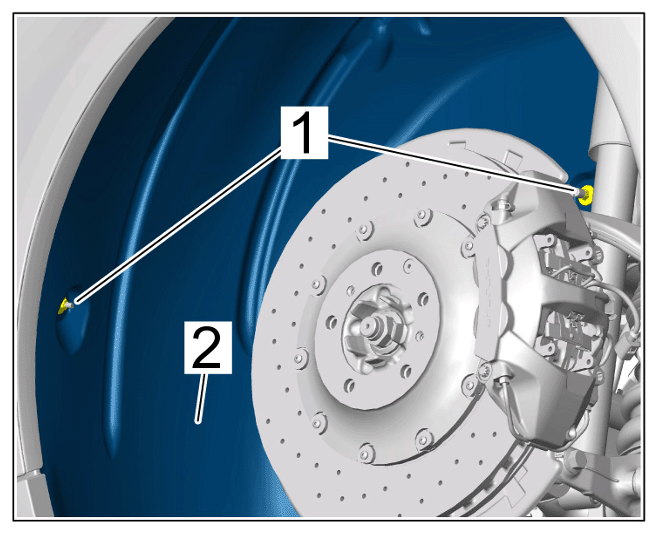

- Unscrew outer screws -1-
and unscrew outer nut -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screws

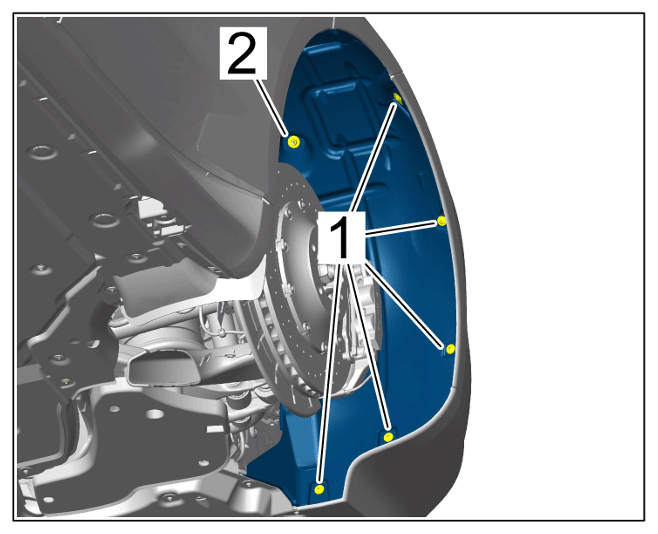

- Unscrew side nuts -1-
and remove rear wheel housing liner -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Nut
