Removing (Inner) Rear Wheel Housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

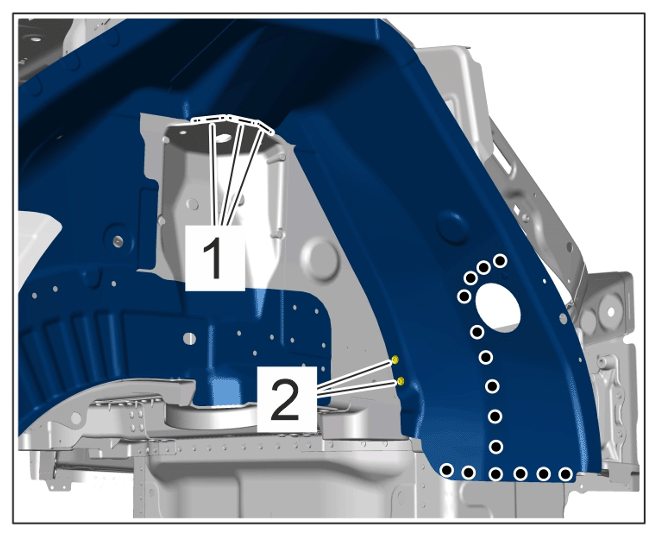

Joint connections

Information

Only drill hole through the top sheet-metal panel. Do not damage the sheet-metal panel underneath.

1. 1.1 Drill out spotwelds -A-  using > VAS 882 001 - spot-weld breaker.
2. 1.2 Loosen friction element welded joints -B-  .

   > 5X00IN29 REPLACING FRICTION ELEMENT WELDED JOINT

3. 1.3 Unscrew self-tapping screws.
4. 1.4 Grind down welded seams -1-  .

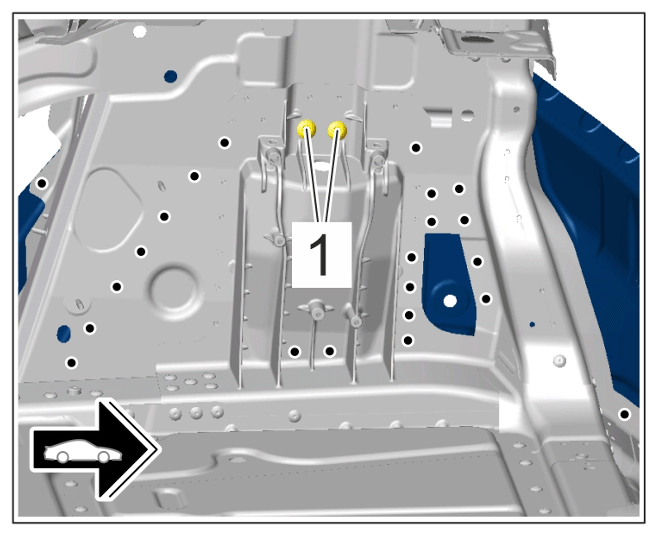

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Joint connections

1. 2.1 Drill out penetrated joints using > Diameter 4 mm  .

   > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

2. 2.2 Unscrew self-tapping screws -2-  .
3. 2.3 Grind down welded seams -1-  .

> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

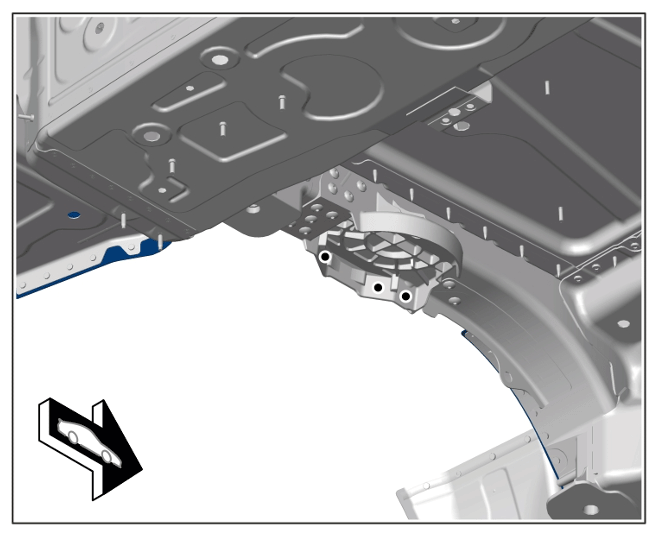

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Punch rivets

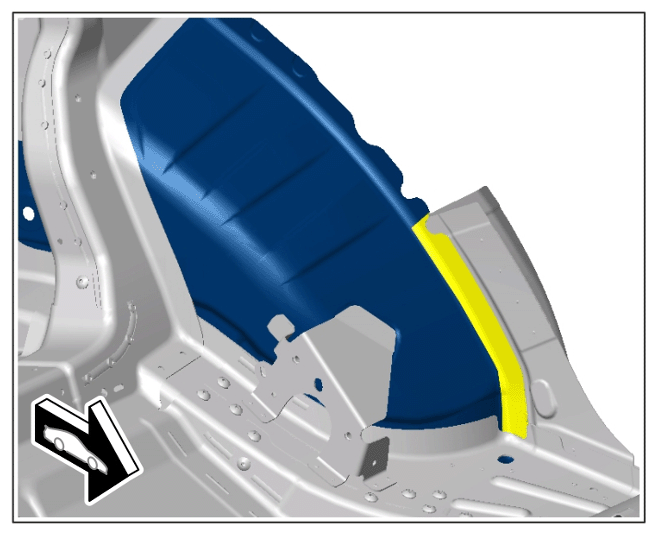

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Joint connections

1. 4.1 Remove punch rivets using > VAS 852 001 - dent removal unit  and > VAS 6790 - compact booster.

   > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

2. 4.2 Unscrew self-tapping screws -1-  .

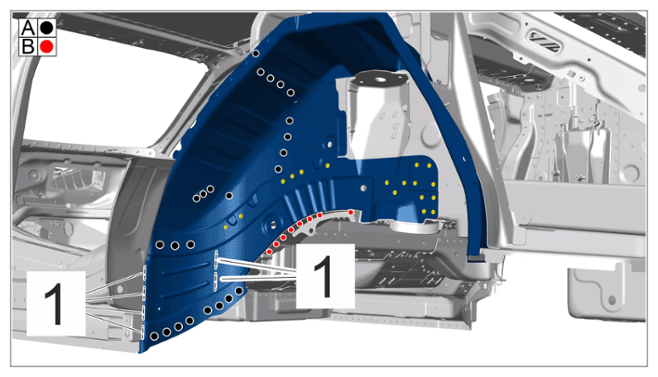

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spotweld

> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

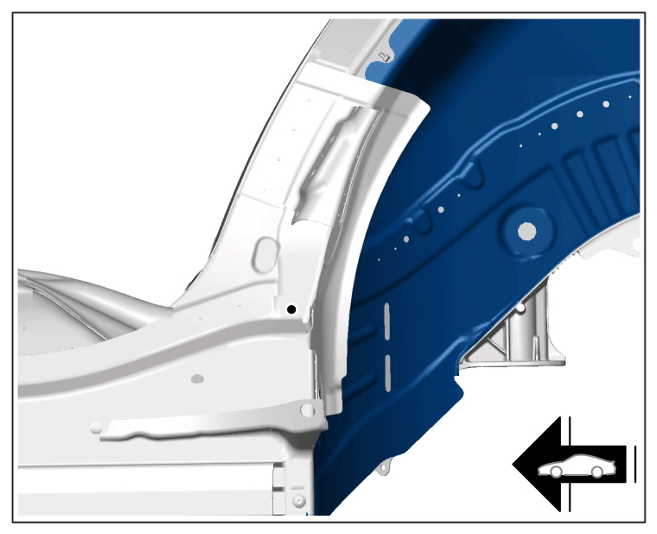

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

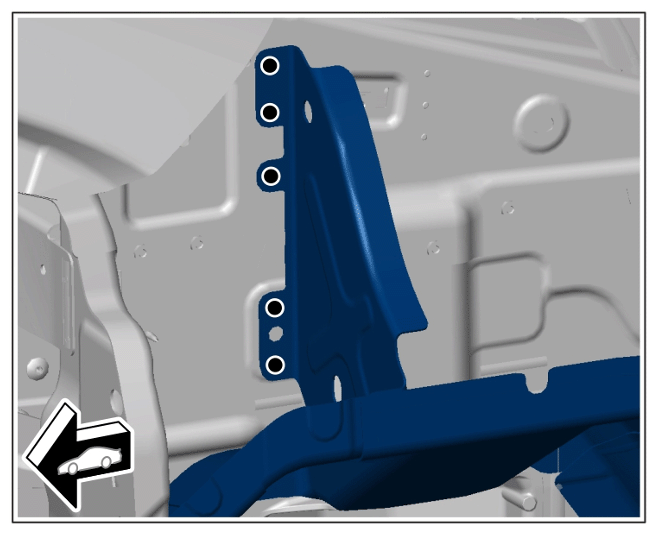

Punch rivets

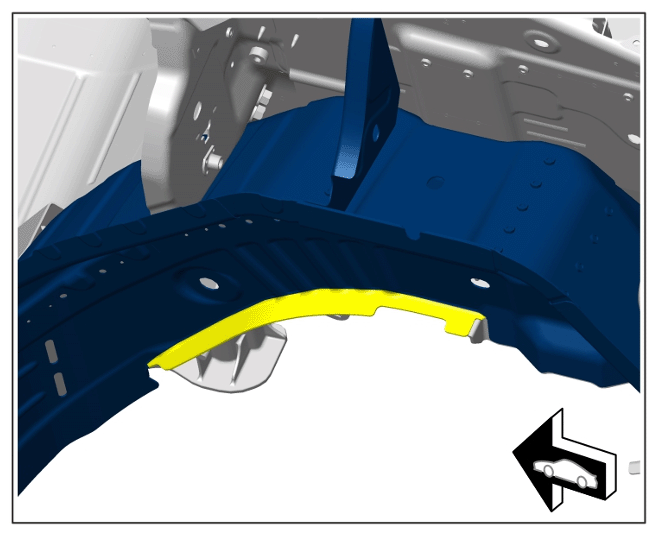

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

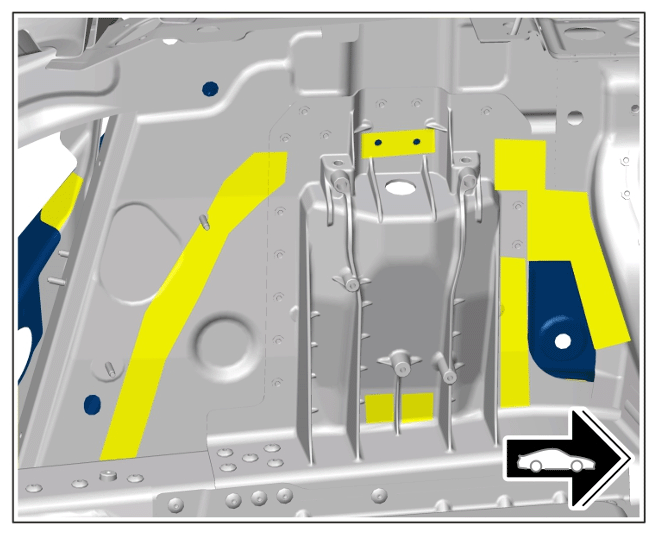

Bonding areas

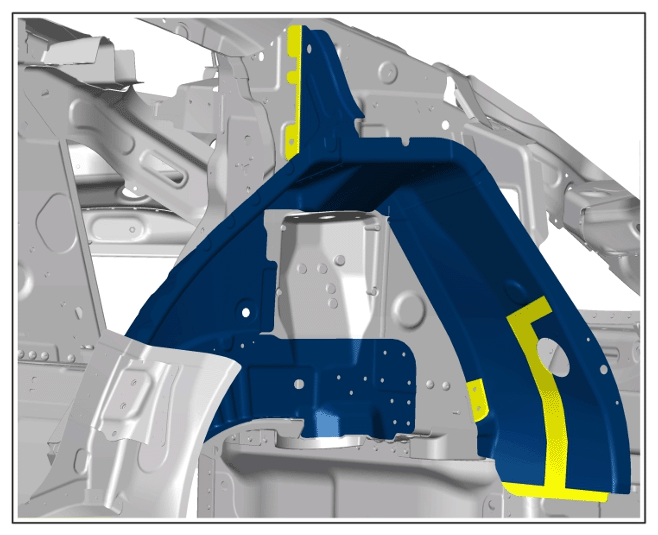

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

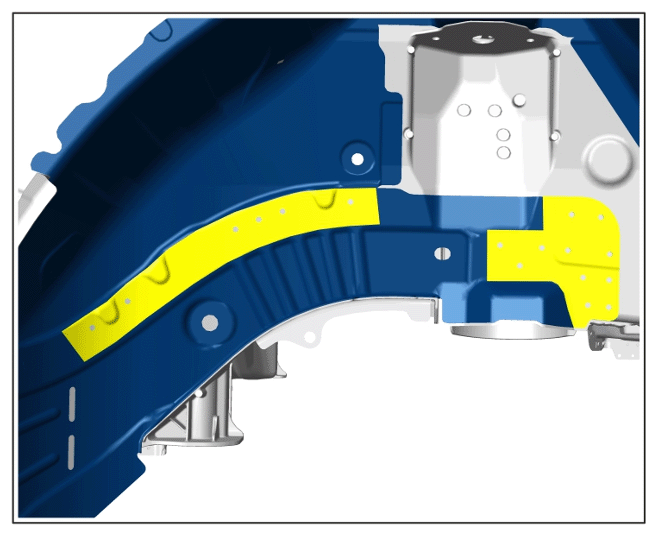

Bonding areas

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area
