Preparing (Inner) Rear Wheel Housing

1. Position (inner) rear wheel housing and secure it to body.
2. Prepare joints.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

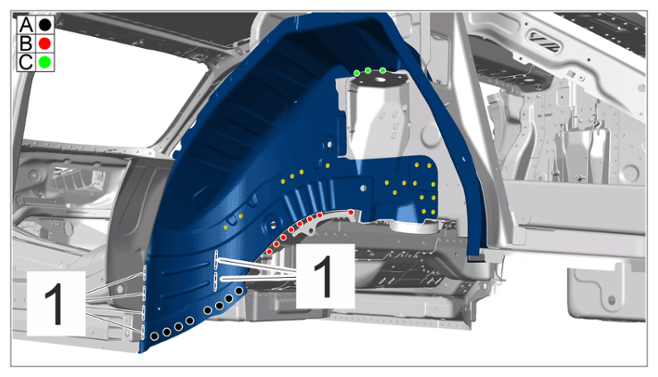

   Joints

   1. 2.1 Drill bore holes for blind rivets -B-  through both sheet metal plates using > diameter 6.6 mm  .
   2. 2.2 Drill holes for countersunk blind rivets -C-  through both sheet metal panels with > diameter 6.5 mm  .
   3. 2.3 Counterbore rivet holes -C-  with > VAS 6957 - 100°countersink.
3. Drill bore holes for blind rivets through both sheet metal plates using > diameter 6.6 mm  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

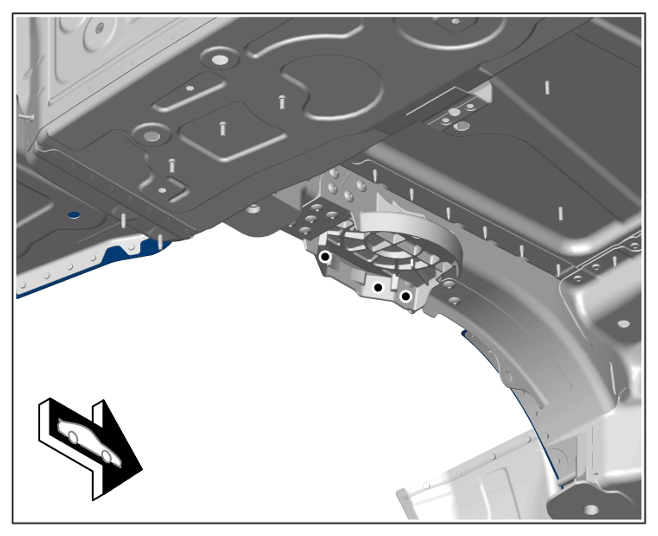

   Joints

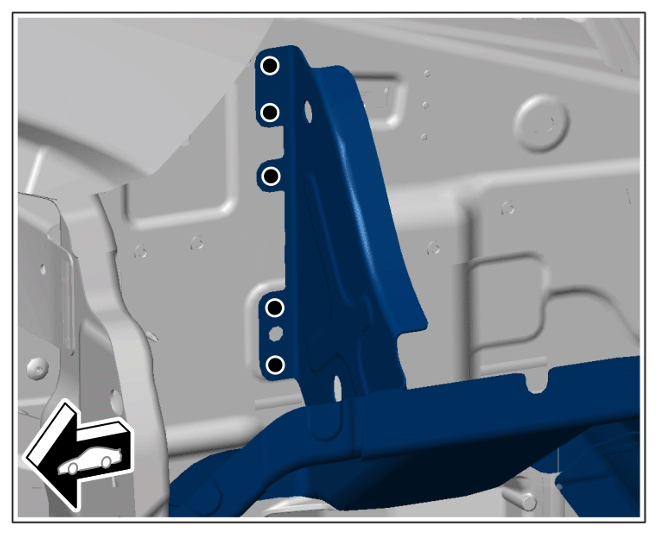

4. Drill bore holes for blind rivets through both sheet metal plates using > diameter 6.6 mm  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Joints

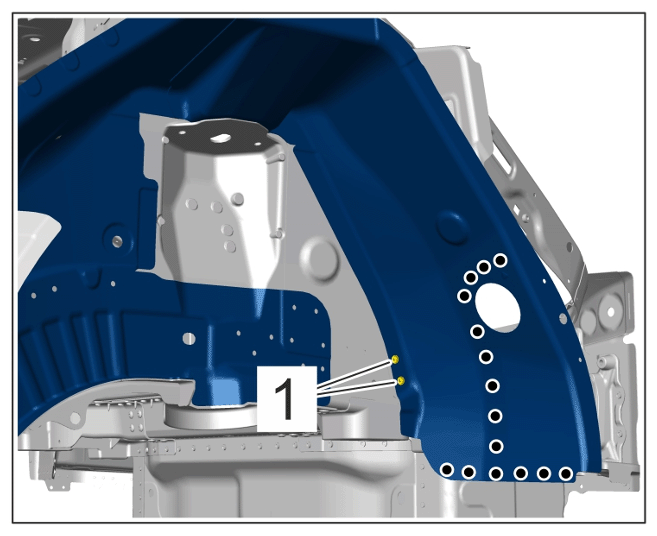

5. Drill bore holes for blind rivets through both sheet metal plates using > diameter 6.6 mm  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Joints

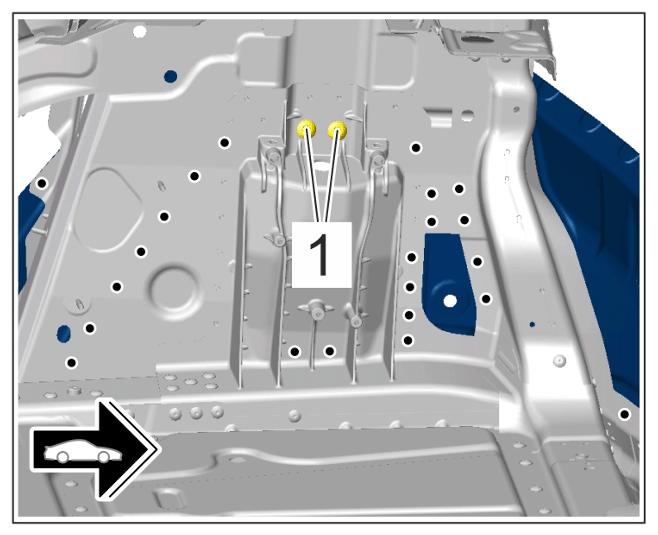

6. Drill bore holes for blind rivets through both sheet metal plates using > diameter 6.6 mm  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Joints

7. Remove (inner) rear wheel housing.
8. Prepare (inner) rear wheel housing for joining.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

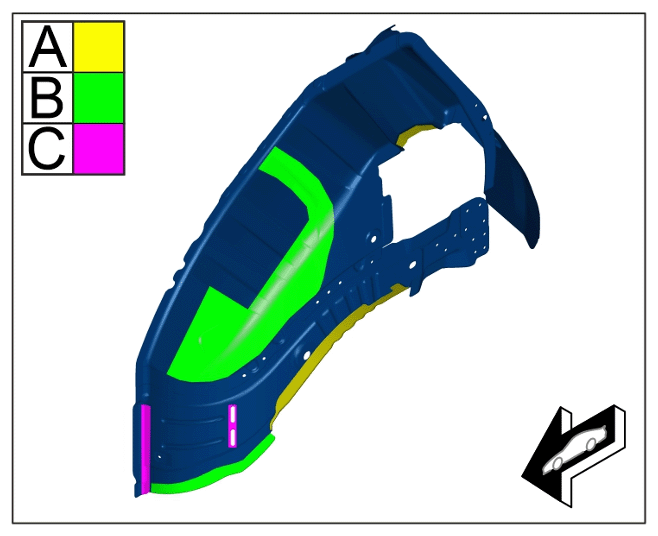

   Joint areas

   1. 8.1 Prepare marked areas -A-  for bonding and riveting.

      > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   2. 8.2 Prepare marked area -B-  for resistance spot-welding.
   3. 8.3 Prepare marked areas -C-  for full steel welding.

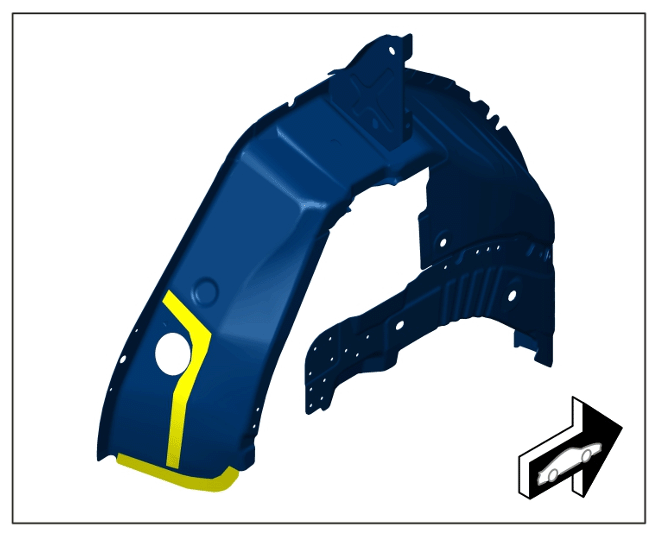

9. Prepare (inner) rear wheel housing for bonding and riveting.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

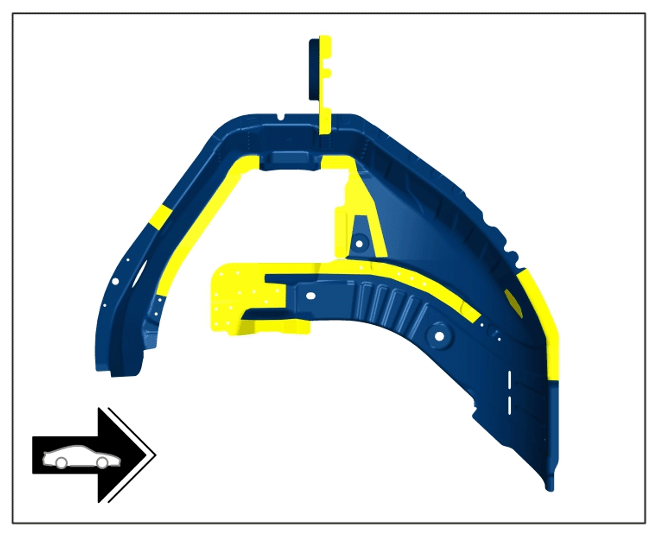

   Bonding areas

10. Prepare (inner) rear wheel housing for bonding and riveting.

    > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas
