Removing Rear Wheel Housing (Outer) (Front Section)

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

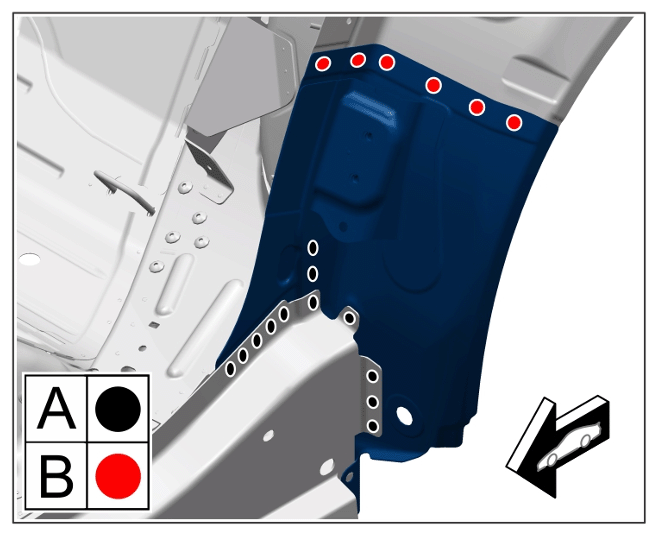

Loosen rear wheel housing (outer) (front section).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Joints
1. 1.1 Drill out spotwelds -A- .
2. 1.2 Drill out penetrated joints -B- .
  > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

  > diameter 4 mm

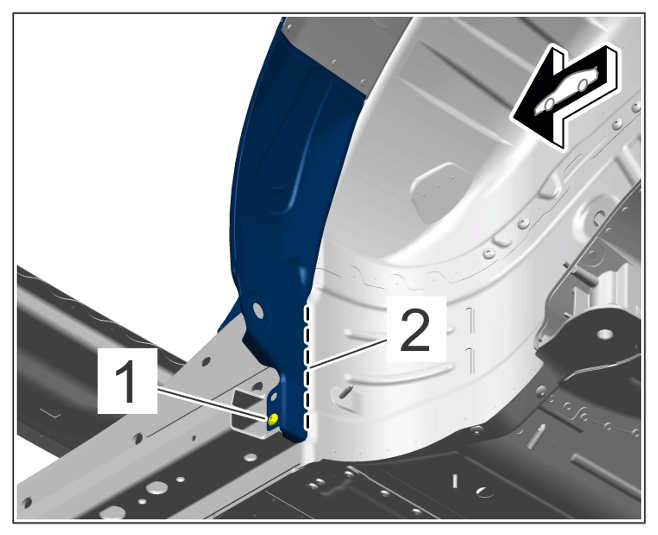

Loosen rear wheel housing (outer) (front section).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Joints
1. 2.1 Unscrew self-tapping screw -1- .
  > 5X00IN24 SETTING SELF-TAPPING SCREWS
2. 2.2 Separate welded seams -2- .

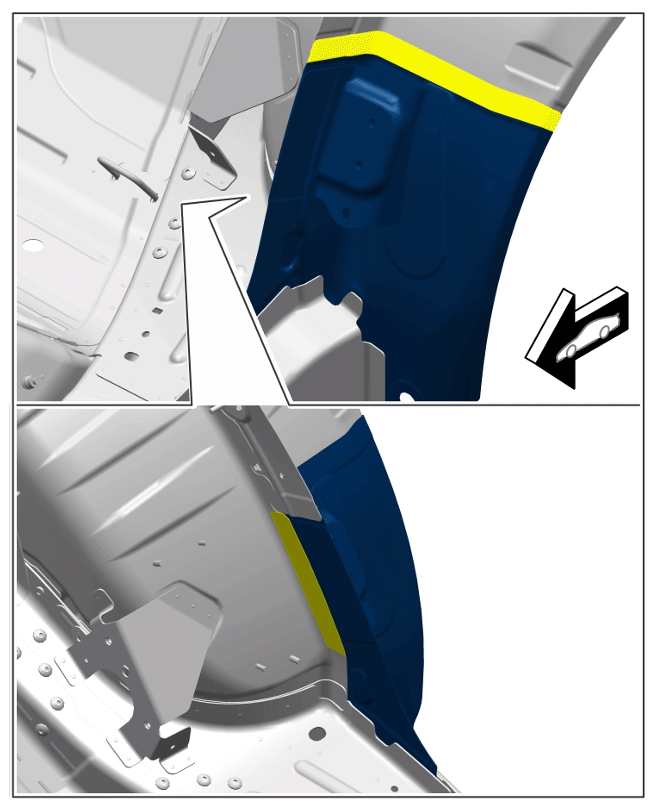

Heat the marked bonding areas using > V.A.G 1416 - hot-air blower.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area
Remove rear wheel housing (outer) (front section).
