Preparing Rear Wheel Housing (Outer) (Front Section) For Installation

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Fit in rear wheel housing (outer) (front section) and secure it to the body.
Prepare rear wheel housing (outer) (front section) for riveting.
> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Joints

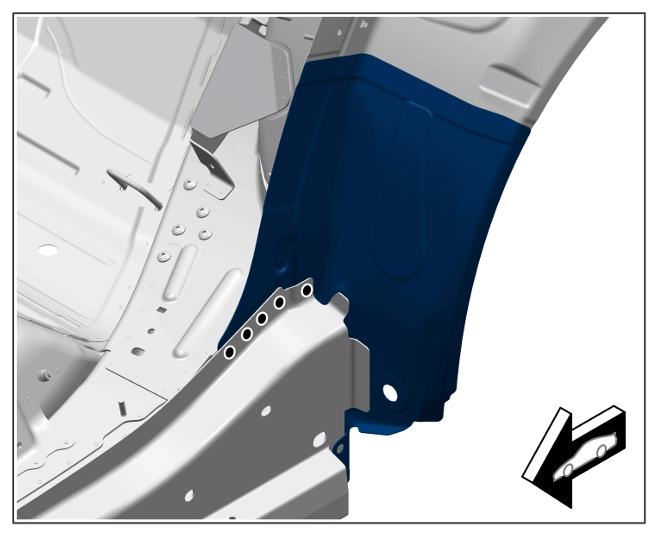

1. 2.1 Drill bore holes for blind rivets -A- through all sheetmetal panels. > diameter 6.6 mm

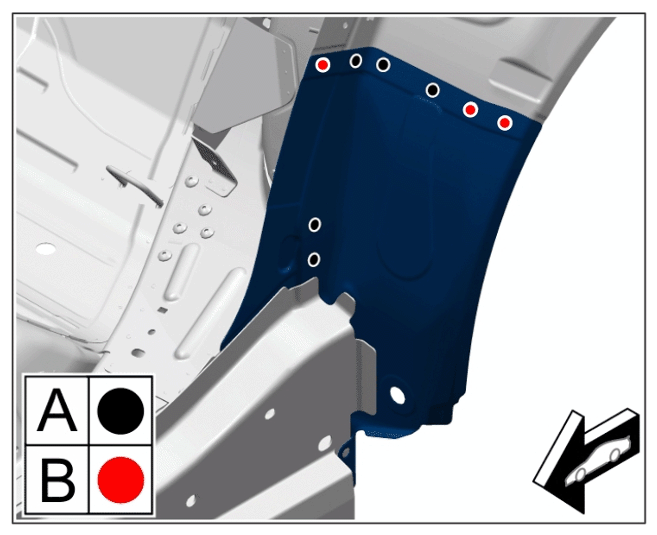

2. 2.2 Punch -B- holes for flow-form rivet at positions.
Drill holes for blind rivets offset from existing holes. > diameter 6.6 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holes
Remove rear wheel housing (outer) (front section).
Prepare rear wheel housing (outer) (front section) in the marked areas for joining.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparation

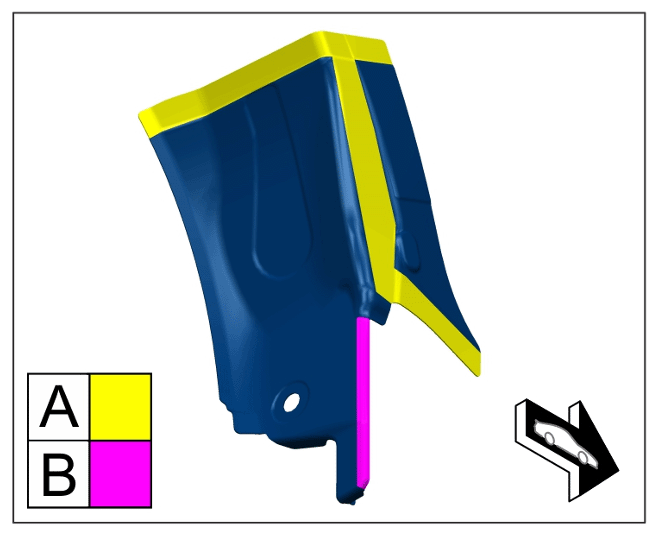

1. 5.1 Prepare areas -A- for bonding and riveting.
2. 5.2 Prepare areas -B- for bonding and resistance spot-welding.
Prepare rear wheel housing (outer) (front section) in the marked areas for joining.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparation

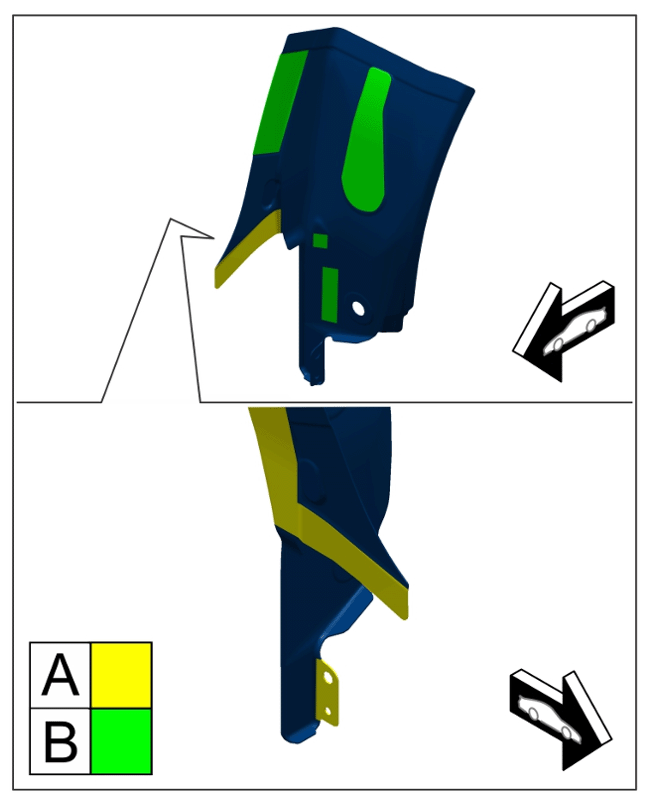

1. 6.1 Prepare areas -A- for bonding and riveting.
  > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
2. 6.2 Prepare area -B- for full steel welding.

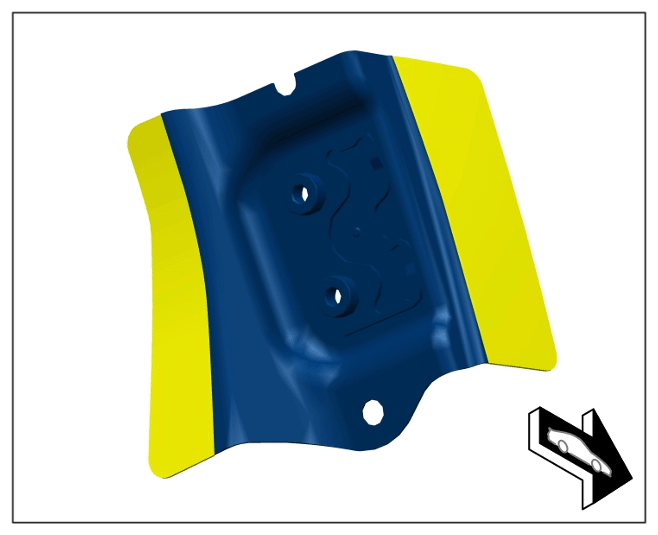

Prepare marked areas for bonding and steel resistance spot-welding.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparation
