Preparing Connection Areas Of The Body For Installation

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Prepare the marked areas for joining.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

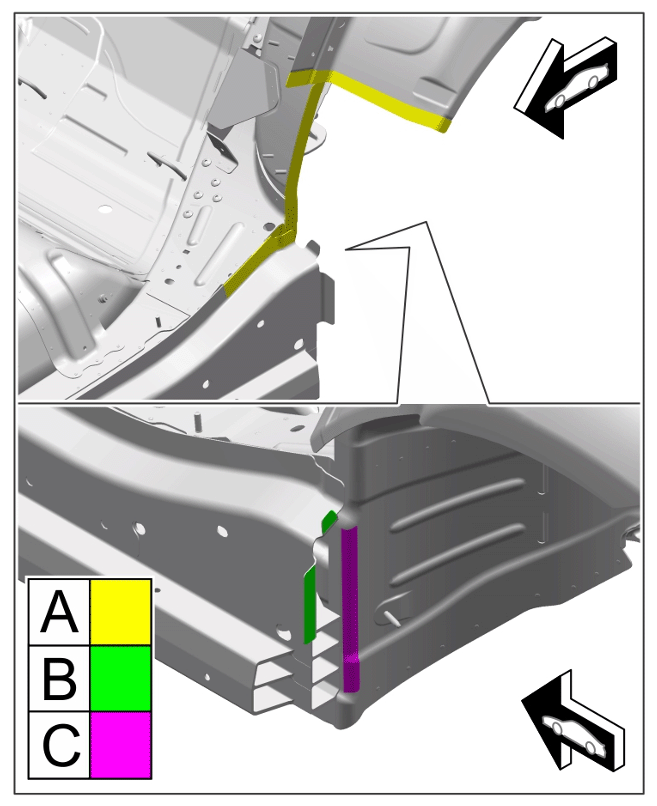

Joint area
1. 1.1 Prepare areas -A- for bonding and riveting.
2. 1.2 Prepare areas -B- for bonding and resistance spot-welding.
3. 1.3 Prepare area -C- for full steel welding.
