Installing (Outer) Rear Wheel Housing (Front Section)

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

Information

• Apply adhesive evenly over the entire bonding surface.

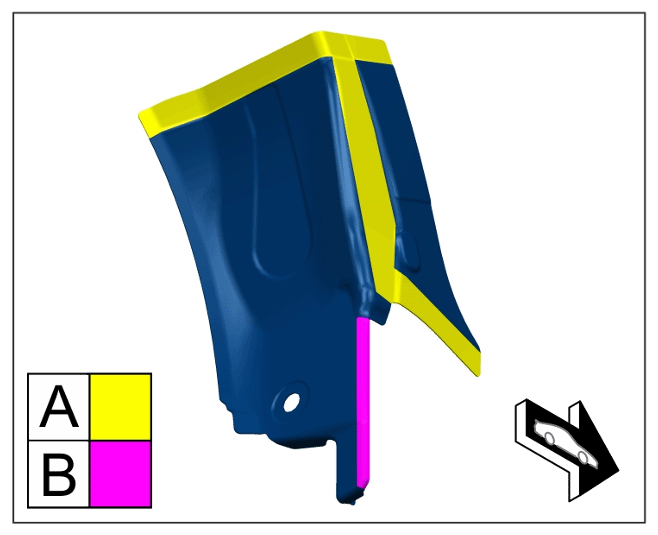

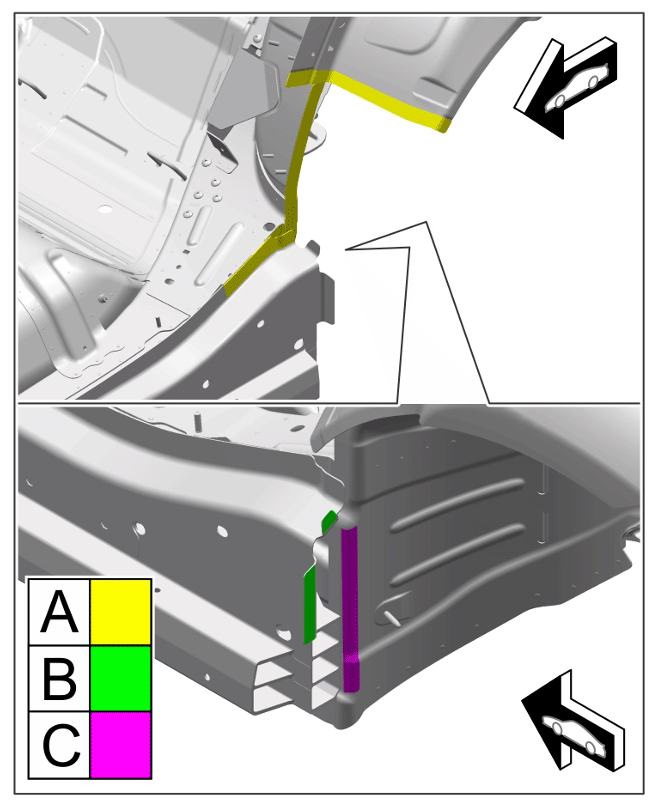

1. Apply adhesive on bonding areas -A-  and -B-  of the body.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Joint area

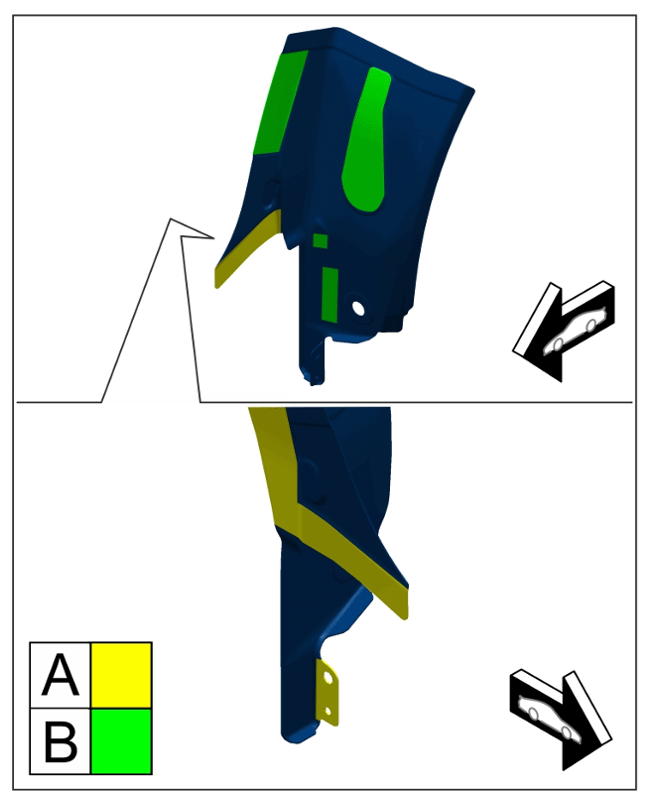

2. Apply adhesive to (outer) rear wheel housing (front section) in bonding areas.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding area

   1. 2.1 Apply adhesive to (outer) rear wheel housing (front section) in bonding areas -A-  .

      > Application depth 0.5 mm

   2. 2.2 Also apply a bead of adhesive all around the bonding surface.

      > Application depth 3 mm

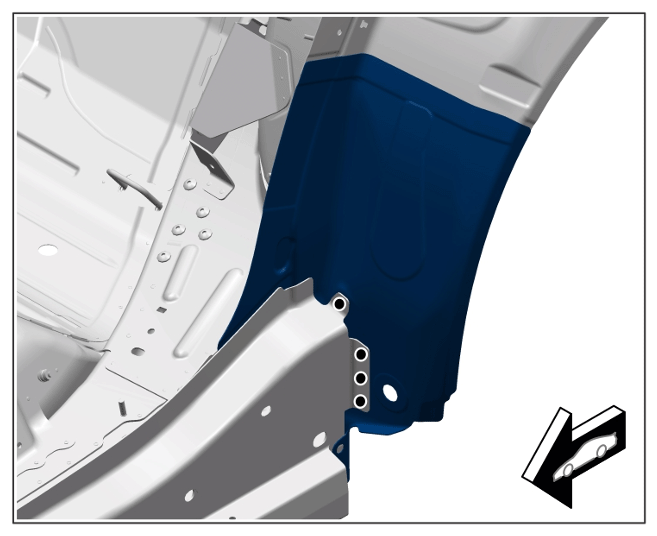

3. Fit in rear wheel housing (outer) (front section) and secure it.
4. Rivet in rear wheel housing (outer) (front section).

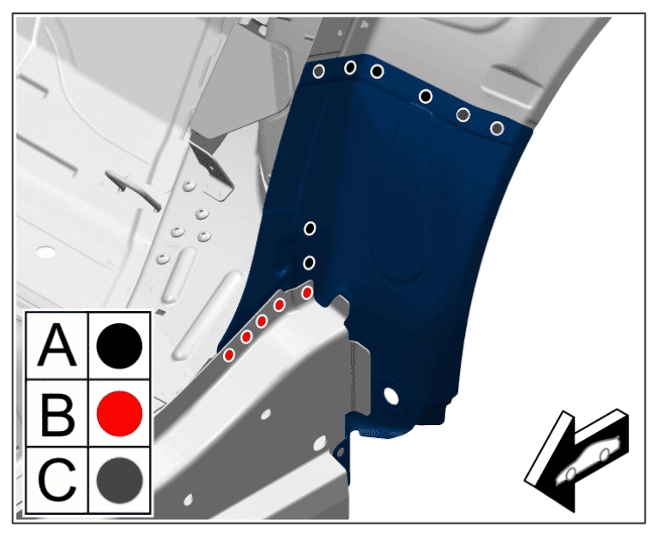

   > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Joints

   1. 4.1 Set rivets at the points -A-  . > BLIND RIVET 999.190.229.01
   2. 4.2 Set rivets at the points -B-  . > BLIND RIVET 999.190.227.01
   3. 4.3 Set rivets at the points -C-  . > RIVET 9A7.008.473.00
5. Resistance spot-weld rear wheel housing (outer) (front section).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Spotwelds

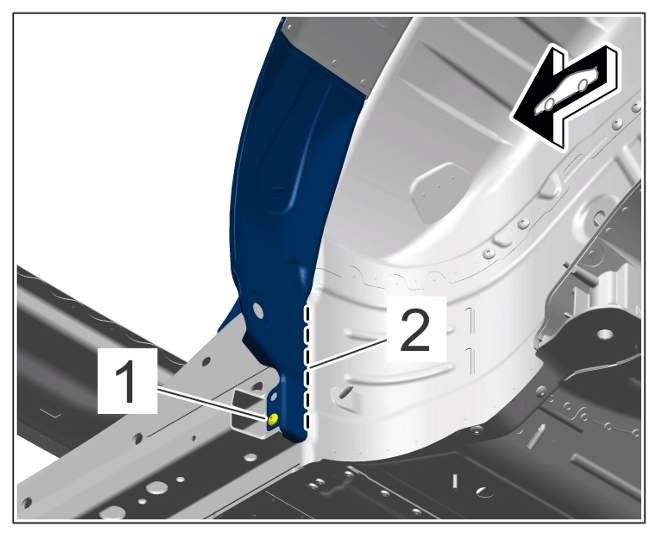

6. Secure rear wheel housing (outer) (front section).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Joints

   1. 6.1 Tighten self-tapping screw -1-  .

      > 5X00IN24 SETTING SELF-TAPPING SCREWS

   2. 6.2 Join -2-  by applying a full weld.

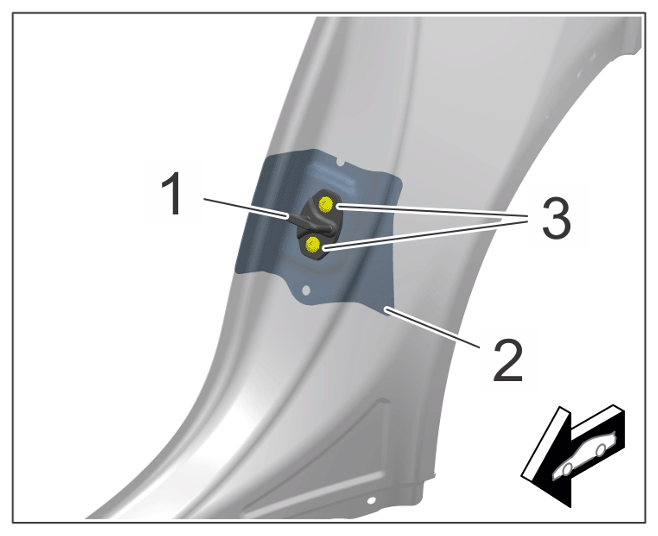

7. Centre catch bar -1-  through rear side panel with wheel housing reinforcement -2-  and tighten screws -3-  hand-tight.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Catch bar at wheel housing reinforcement

8. Fit in rear side panel and secure to the body.

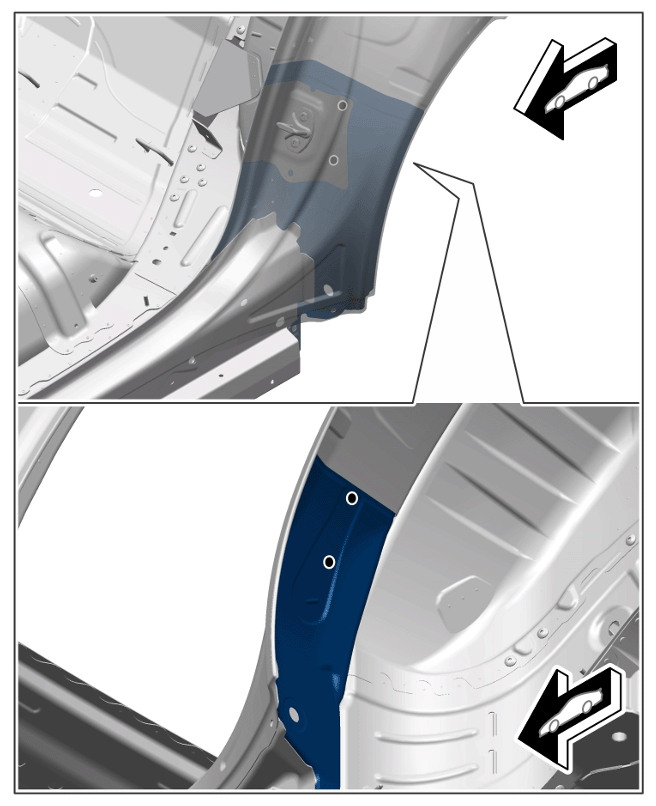

9. Drill holes for rivets as a positioning aid. > diameter 4.0 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Positioning holes

   1. 9.1 Countersink holes. > VAS 6957 - 100° countersink
10. Remove rear side section.
11. Unscrew screws -3-  and remove catch bar -1-  and wheel housing reinforcement -2-  from rear side panel.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Catch bar at wheel housing reinforcement

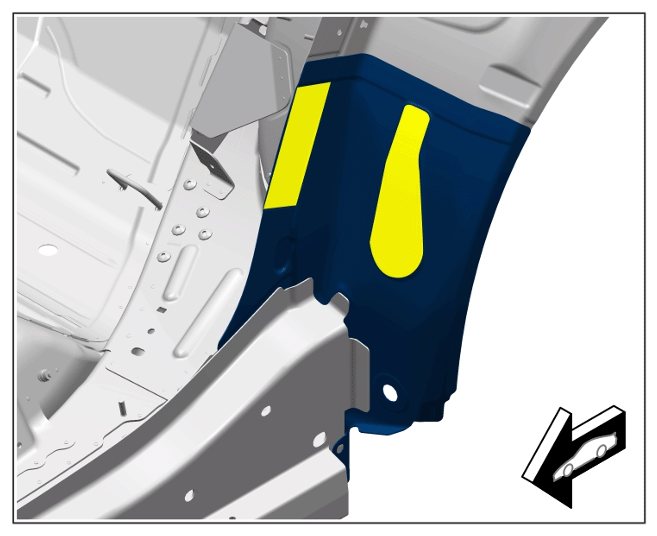

12. Apply adhesive to (outer) rear wheel housing (front section) in marked bonding areas.

    > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

    > Application depth 0.5 mm

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding area

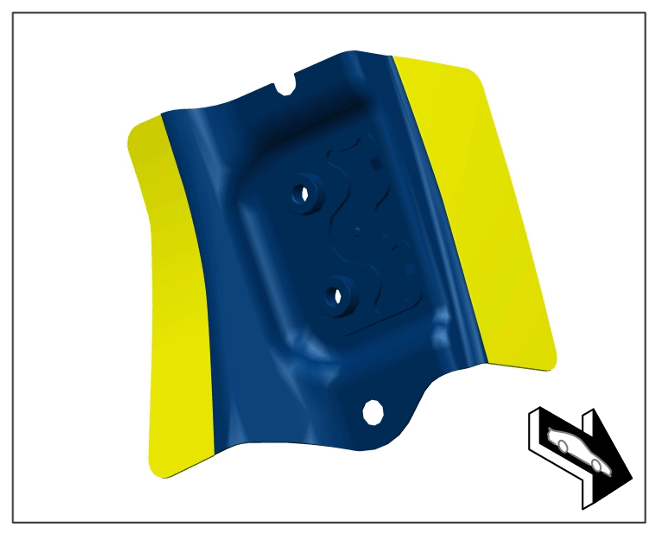

13. Apply adhesive to wheel housing reinforcement in marked areas.

    > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding area

    1. 13.1 Apply adhesive to marked areas. > Application depth 0.5 mm
    2. 13.2 Also apply a bead of adhesive all around the bonding surfaces.

       > Application depth 3 mm

14. Rivet in wheel housing reinforcement for positioning. > BLIND RIVET PAF.912.885

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Positioning holes

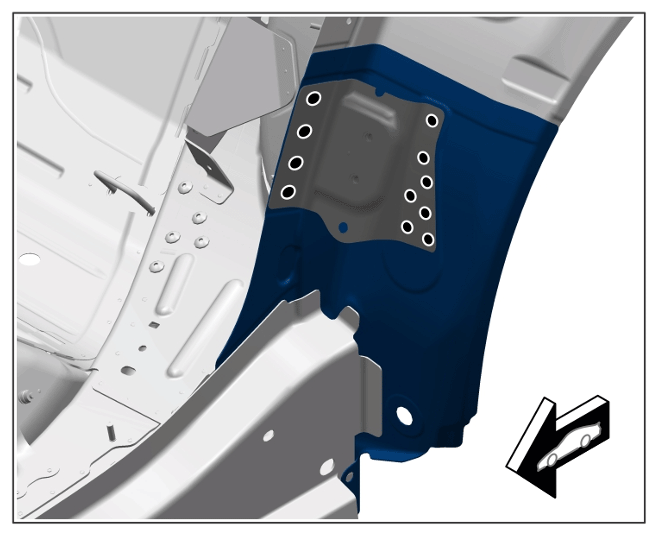

15. Resistance spot-weld wheel housing reinforcement.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spotwelds
