Removing (Outer) Rear Wheel Housing (Sub-Section)

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

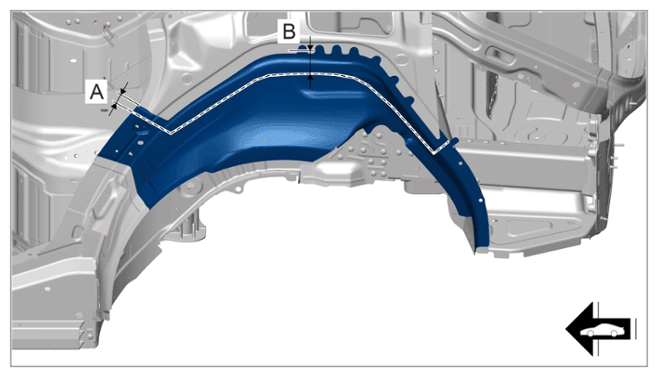

Mark and make cuts -A- and -B- .
> Distance 20 mm

> Distance 25 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Separation points

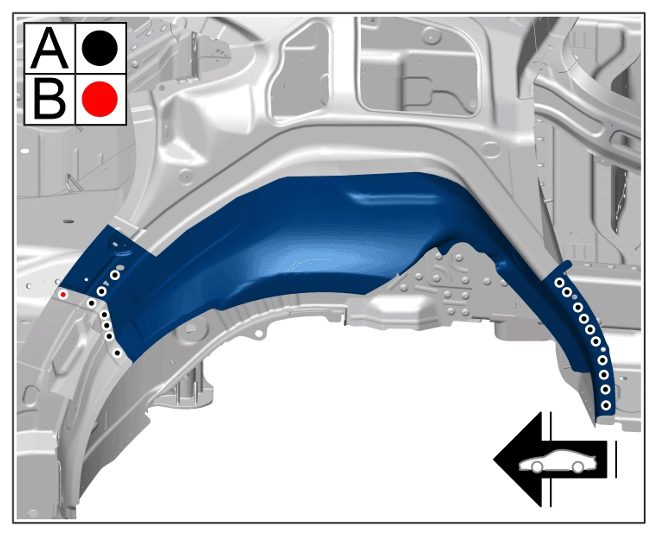

Drill out penetrated joints -A- and -B- using > Diameter 4 mm .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Penetrated joints
Remove (outer) rear wheel housing (sub-section).
