Preparing (Outer) Rear Wheel Housing (Section) For Installation

1. Cut spare part to size.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cut on spare part

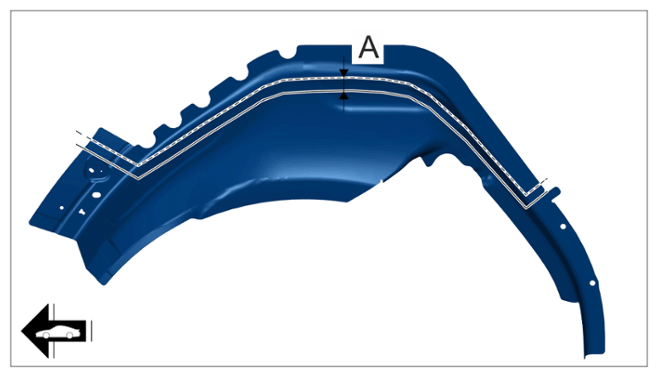

   1. 1.1 Mark spare part in accordance with the cut on the body with an overlap of -Dimension A-  > Distance 20 mm  .
   2. 1.2 Make cut on spare part.
2. Fit in (outer) rear wheel housing (section) and secure it to the body.

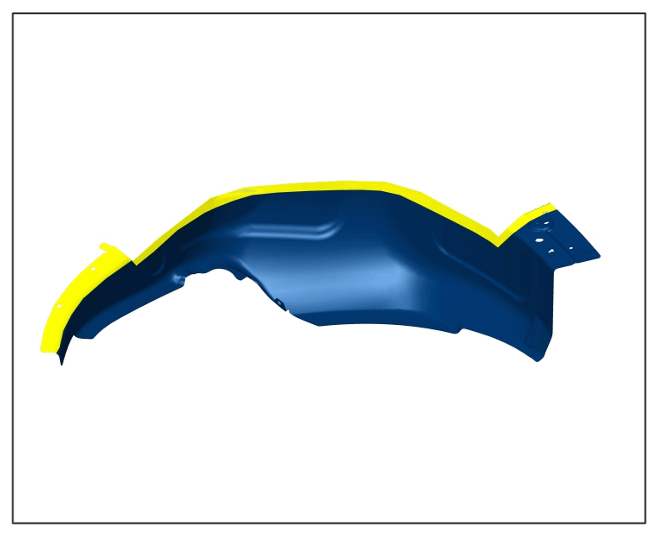

3. Prepare (outer) rear wheel housing (section).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Joints

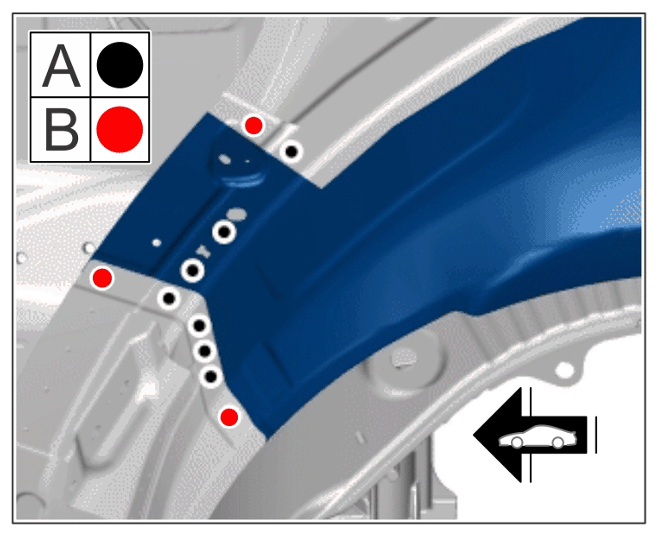

   1. 3.1 Drill bore holes for blind rivets -LHD vehicle -  through both sheetmetal plates using > Diameter 6.6 mm  .
   2. 3.2 Punch holes for flow-form rivets -RHD vehicle -  .

      > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

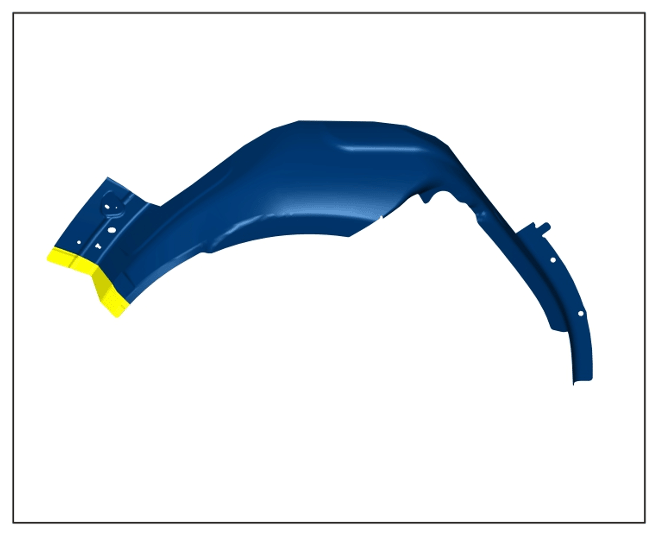

4. Prepare joints.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Joints

   1. 4.1 Drill bore holes for blind rivets -LHD vehicle -  using a drill bit with a diameter of > Diameter 6.6 mm  .
   2. 4.2 Drill bore holes -RHD vehicle -  for blind rivets through both sheet metal plates using > diameter 6.5 mm  .
      1. 4.2.1 Counterbore the rivet holes with > VAS 6957 - 100°countersink.

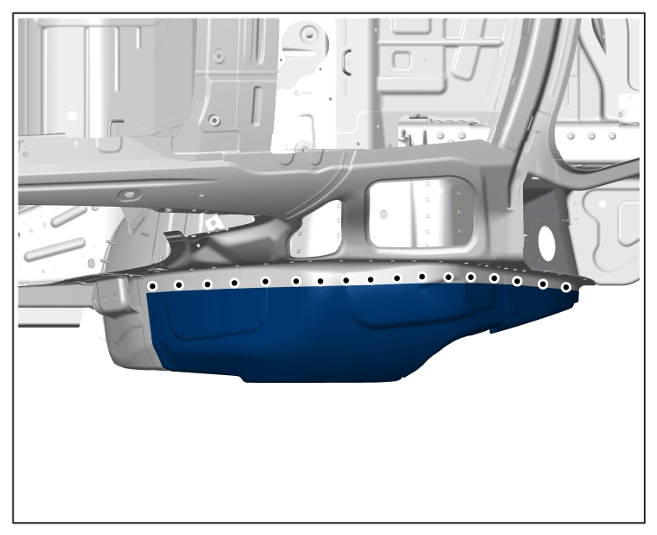

5. Drill bore holes for blind rivets through both sheetmetal plates using > Diameter 6.6 mm  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Joints

6. Remove (outer) rear wheel housing.
7. Prepare marked area for bonding and riveting.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding area

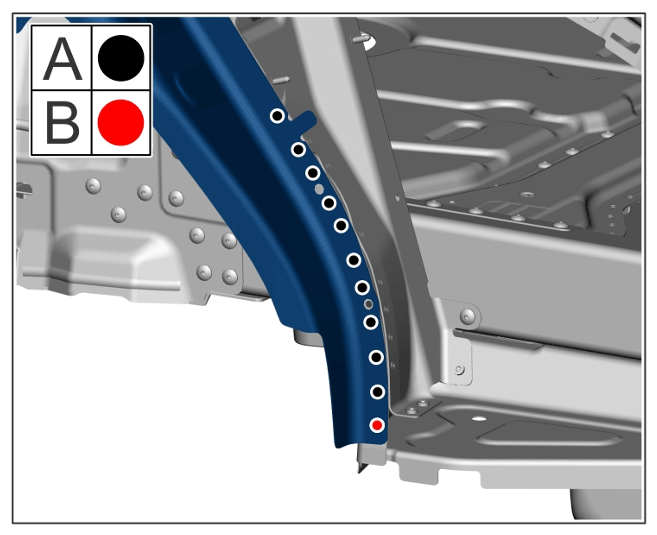

8. Prepare marked area for bonding and riveting.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area
