Installing (Outer) Rear Wheel Housing (Section)

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Install (outer) rear wheel housing (section) and check that it fits perfectly.
2. Apply adhesive evenly to the marked areas of the body. > Application depth 0.5 mm

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

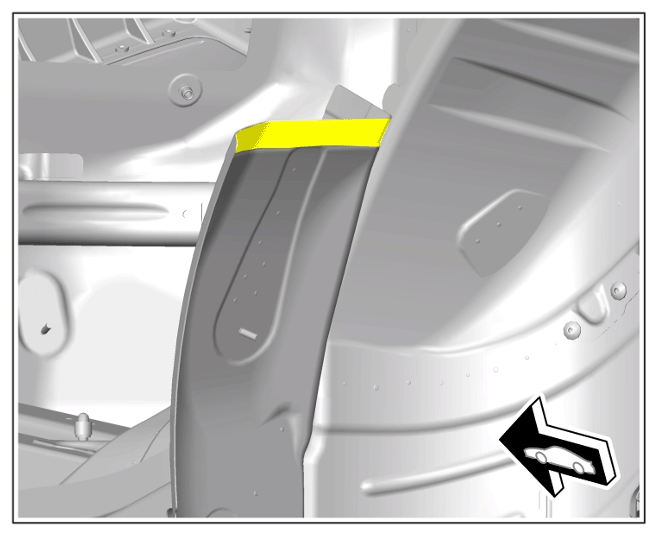

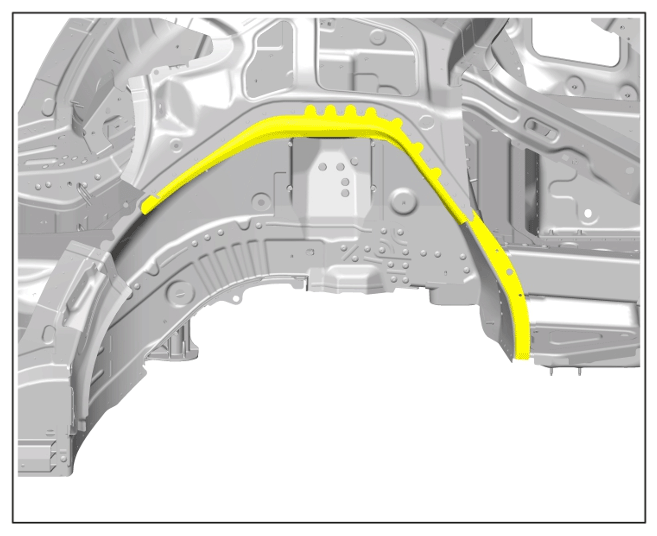

   Bonding areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding area

3. Apply adhesive evenly to the marked area of the rear wheel housing (outer) (sub-section).

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

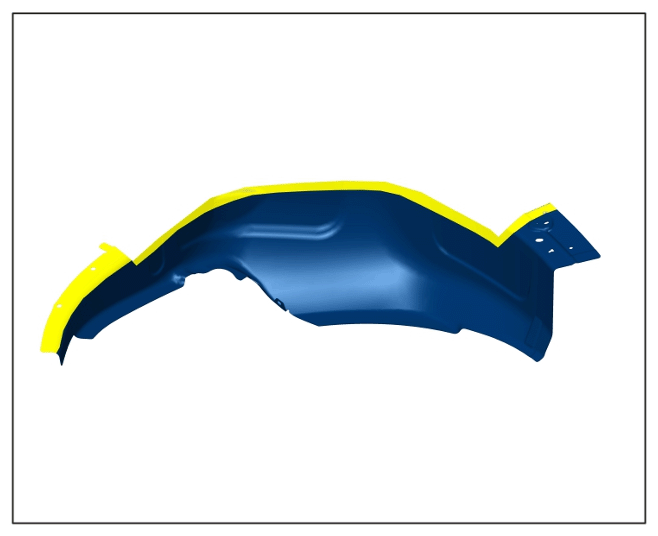

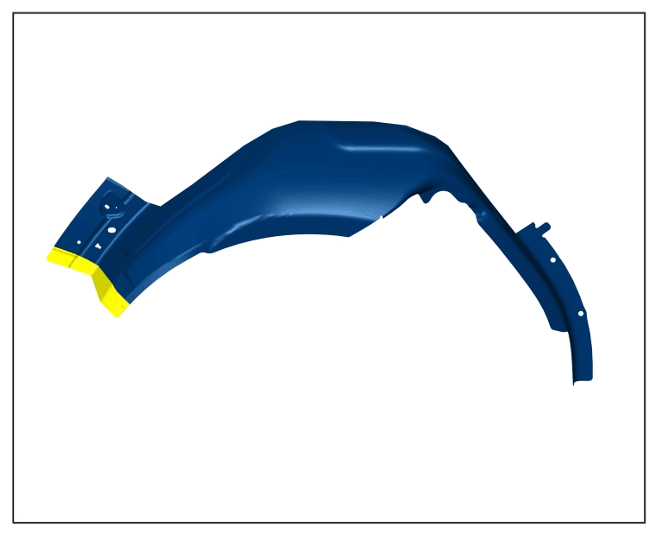

   Bonding area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding area

   1. 3.1 Apply adhesive to the marked areas.

      > Application depth 0.5 mm

   2. 3.2 Also apply a bead of adhesive all around the bonding surface.

      > Application depth 3 mm

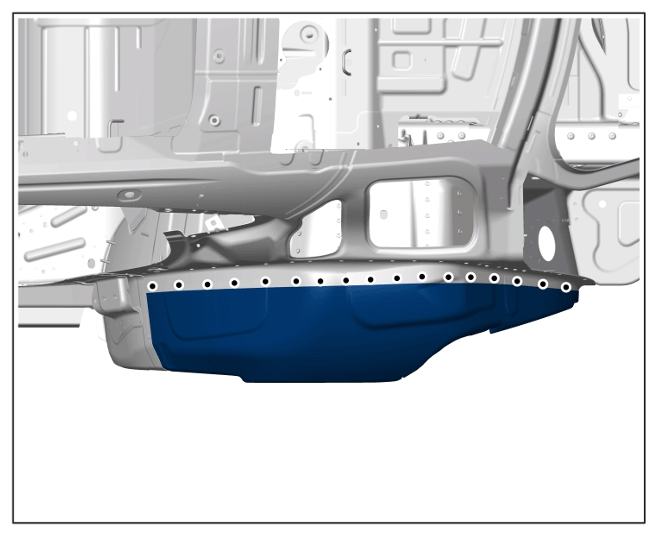

4. Rivet in (outer) rear wheel housing (section). > BLIND RIVET 999.190.229.01

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Joints

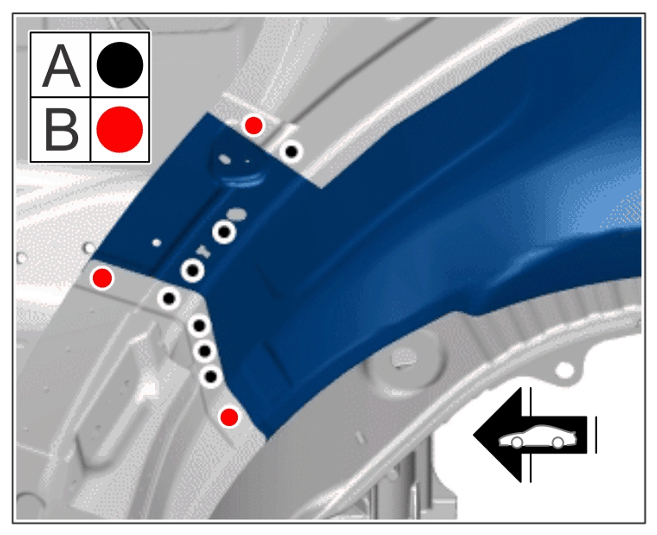

5. Rivet in (outer) rear wheel housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Joints

   1. 5.1 Rivet -A-  in (outer) rear wheel housing. > BLIND RIVET 999.190.229.01
   2. 5.2 On -B-  use > RIVET 9A7.008.473.00

      > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

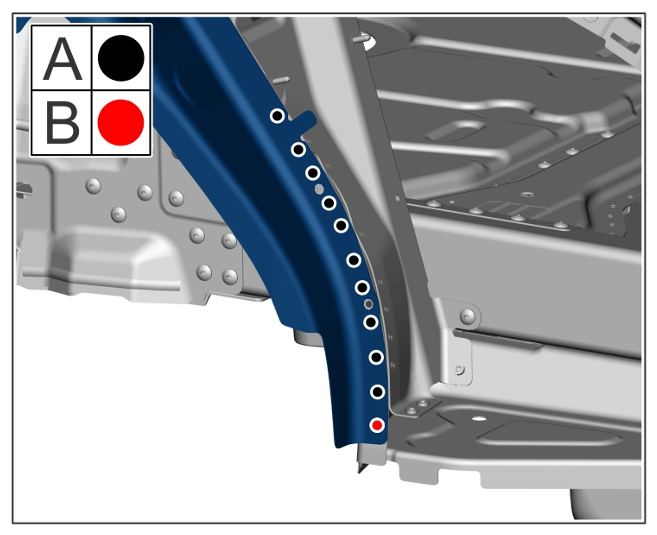

6. Rivet in (outer) rear wheel housing (section).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Joints

   1. 6.1 Rivet -A-  in (outer) rear wheel housing. > BLIND RIVET 999.190.229.01
   2. 6.2 On -B-  > RIVET 9A7.008.473.00

      > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS
