Remove (Outer) Rear Wheel Housing

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Drill through connection points -A- and -B- . > Diameter 4 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

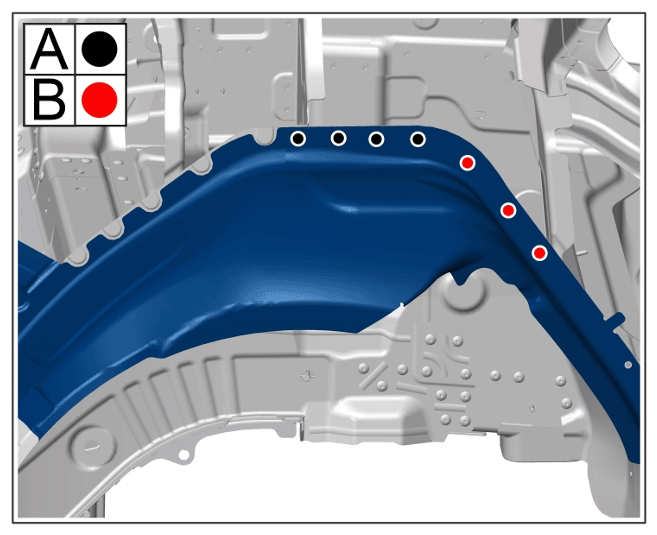

Front connection points
Loosen connection points -A- and -B-
> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

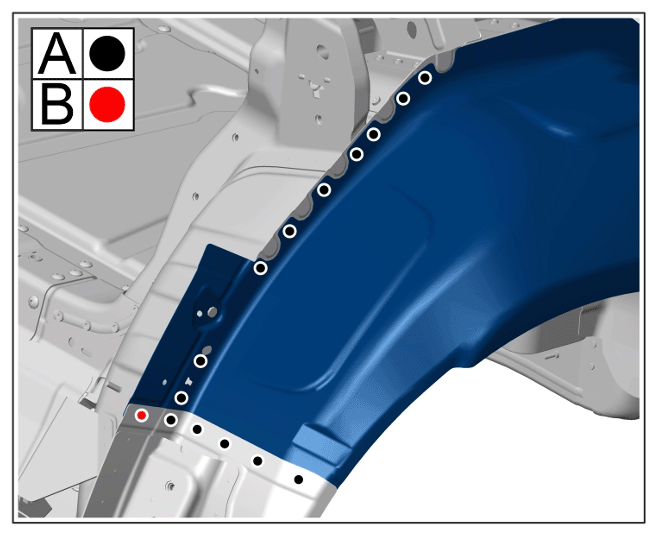

Rear connection points
1. 2.1 Remove punch rivets -A- using > VAS 6790 - compact booster.
2. 2.2 Drill out -B- penetrated joints. > Diameter 4 mm
Drill out penetrated joints. > Diameter 4 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

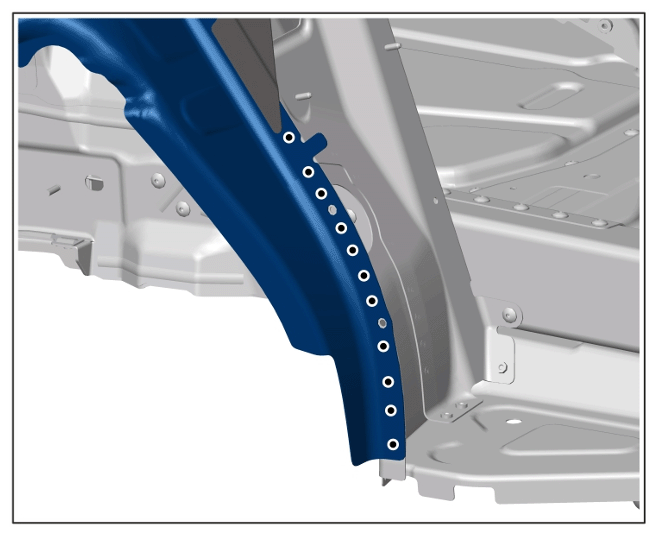

Penetrated joints
Remove outer rear wheel housing.
