Removing Holder

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

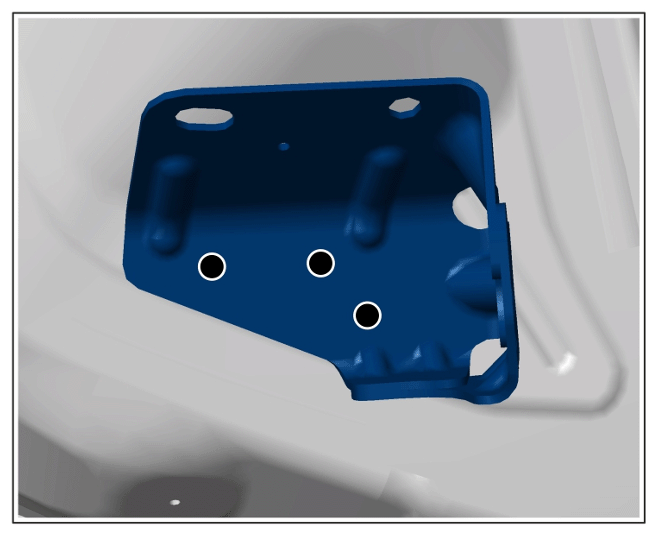

  1. Drill out penetrated joints using > Diameter 6.7 mm  .
    G15562984Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Penetrated joints

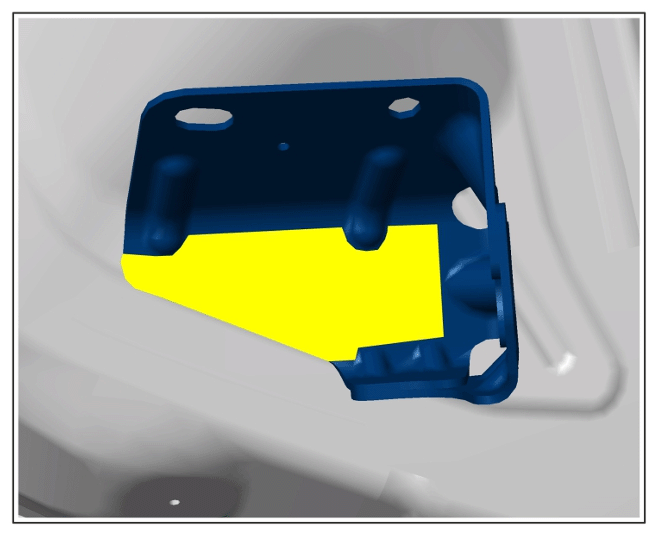

  2. Heat bonding areas using > V.A.G 1416 - Hot-Air Blower.
    G15562985Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding areas

  3. Remove holder.
