Removing Frame For Light
WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
- Loosen frame for light.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

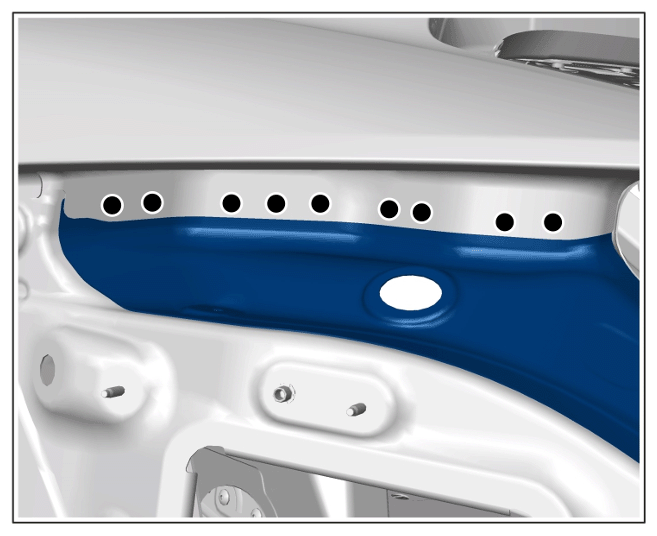

Penetrated joints
- 1.1 Drill out penetrated joints using > Diameter 6.7 mm
.
- 1.2 Grind down welded seam -1-
.
- Drill out penetrated joints using > Diameter 6.7 mm
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

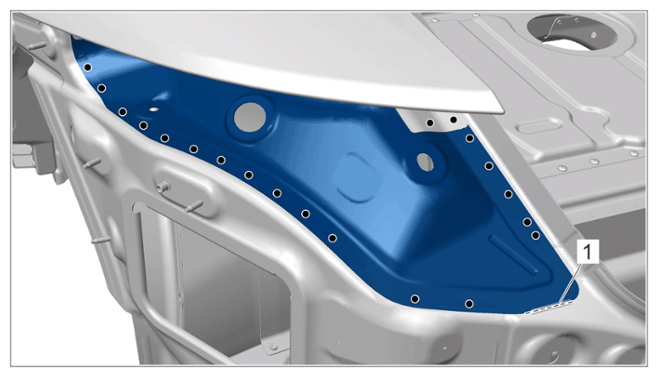

Penetrated joints
- Heat bonding areas using > V.A.G 1416 - Hot-Air Blower.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

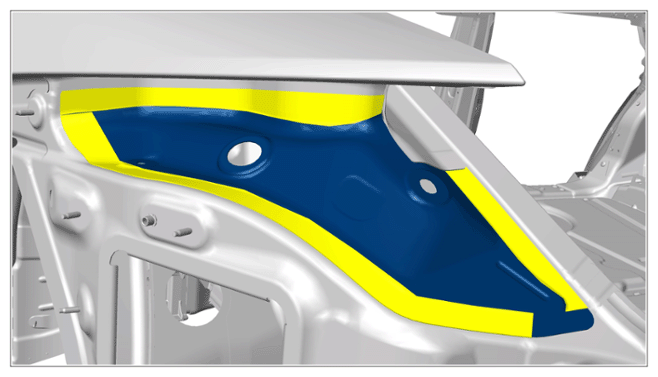

Bonding areas
- Remove frame for light.
