Removing Inner Side Section

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Loosen inner side section.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Self-tapping screws
1. 1.1 Remove punch rivets using > VAS 852 001 - body dent removal system, aluminium and > VAS 6790 - Compact Booster.
  > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

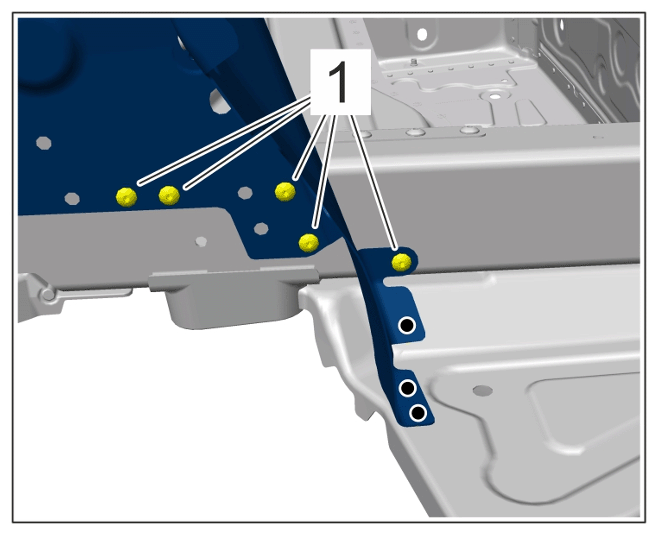

2. 1.2 Unscrew self-tapping screws -1- .
  > 5X00IN24 SETTING SELF-TAPPING SCREWS

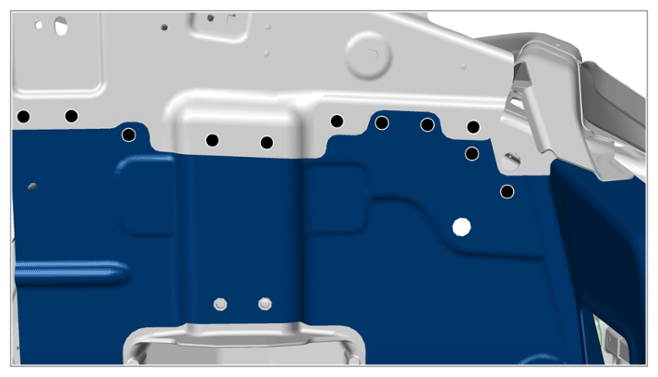

Remove punch rivets using > VAS 852 001 - body dent removal system, aluminium and > VAS 6790 - Compact Booster.
> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Punch rivets

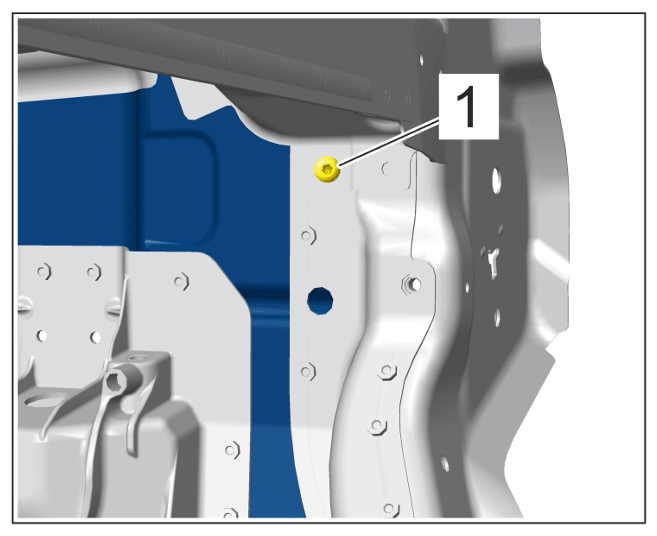

Unscrew self-tapping screw -1- .
> 5X00IN24 SETTING SELF-TAPPING SCREWS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Self-tapping screw

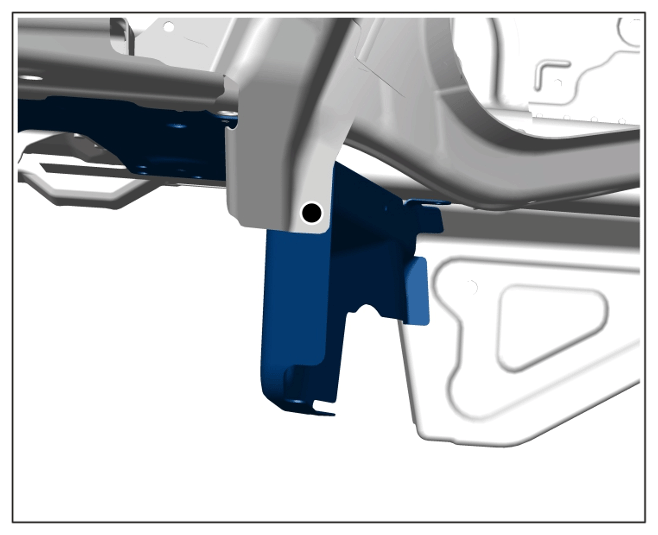

Remove punch rivet using > VAS 852 001 - dent removal unit, aluminium and > VAS 6790 - Compact Booster.
> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Punch rivet

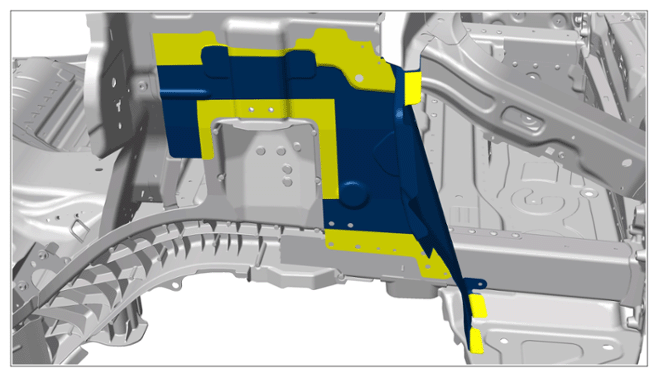

Heat bonding areas using > V.A.G 1416 - hot-air blower.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas
Remove inner side section.
