Preparing Inner Side Section For Installation

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

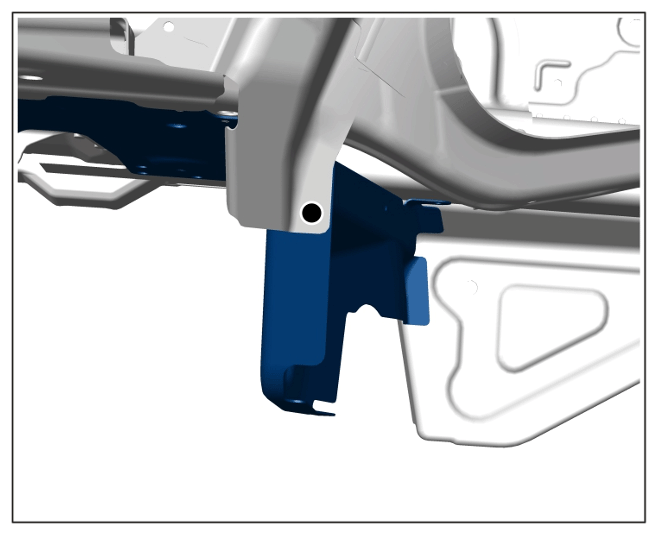

Drill bore for blind rivet through both sheet metal panels using > Diameter 6.6 mm .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Blind rivet

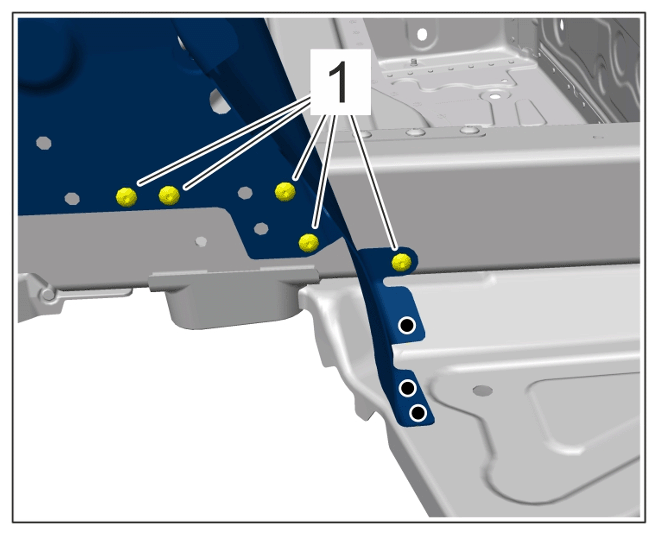

Drill bore holes for blind rivets through both sheet metal plates using > diameter 6.6 mm .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Blind rivets

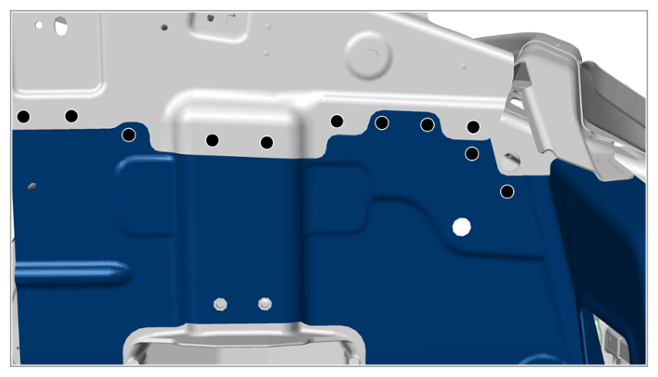

Drill bore holes for blind rivets through both sheet metal plates using > diameter 6.6 mm .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Blind rivets
Remove inner side panel.

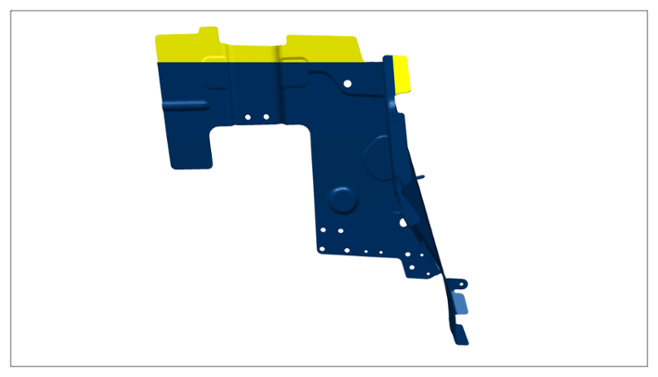

Prepare inner side panel for bonding and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas

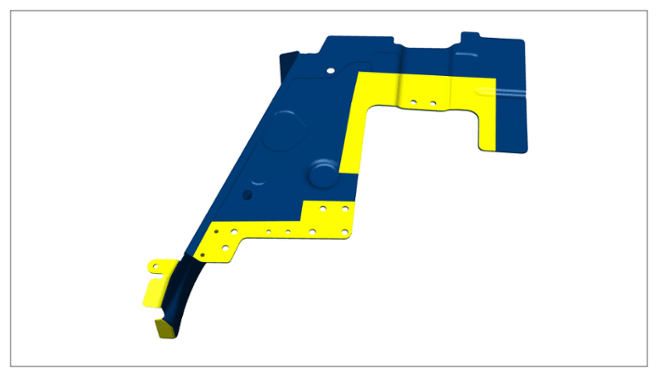

Prepare inner side panel for bonding and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area
