Installing Inner Side Section

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Fit inner side section and check that it fits perfectly.

   Information

   • Apply adhesive evenly over the entire bonding surface.
2. Apply adhesive on bonding areas of the body.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0, 5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

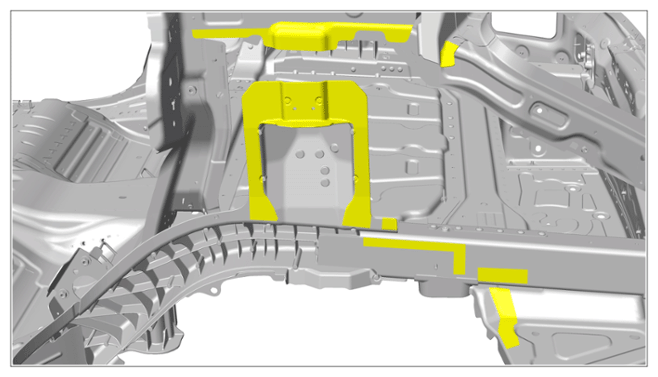

   Joint areas

   Information

   • Apply adhesive evenly over the entire bonding surface.
3. Apply adhesive on inner side section.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

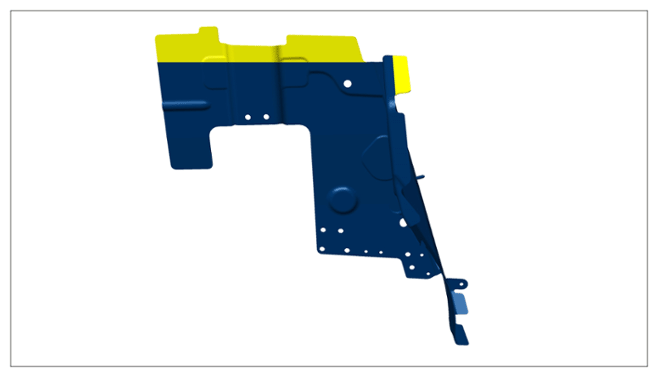

   Bonding areas

   1. 3.1 Also apply a bead of adhesive all around the bonding surface.

      > Application depth 3 mm

   Information

   • Apply adhesive evenly over the entire bonding surface.
4. Apply adhesive on inner side section.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

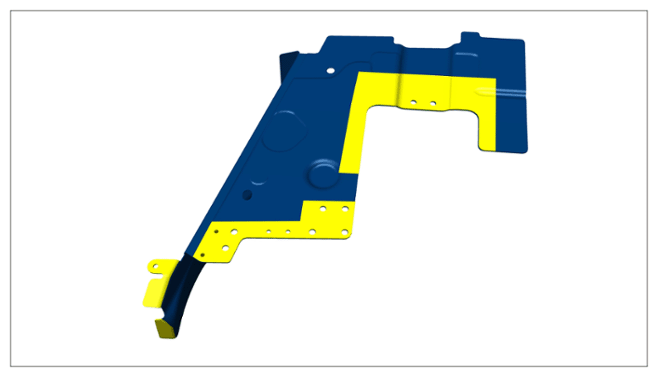

   Bonding area

   1. 4.1 Also apply a bead of adhesive all around the bonding surface.

      > Application depth 3 mm

5. Rivet in inner side section. > BLIND RIVET 999.190.229.01

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

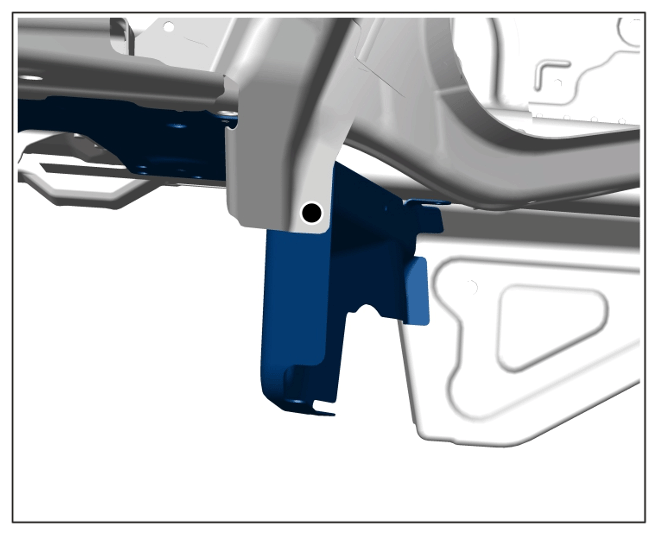

   Blind rivet

6. Secure inner side section.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

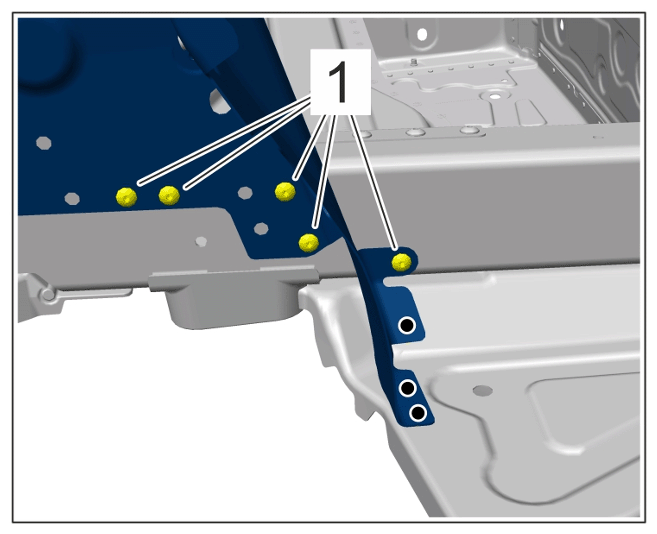

   Self-tapping screws

   1. 6.1 Rivet in inner side section. > BLIND RIVET 999.190.229.01
   2. 6.2 Screw in self-tapping screws -1-  .

      > 5X00IN24 SETTING SELF-TAPPING SCREWS

7. Rivet in inner side section. > BLIND RIVET 999.190.229.01

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

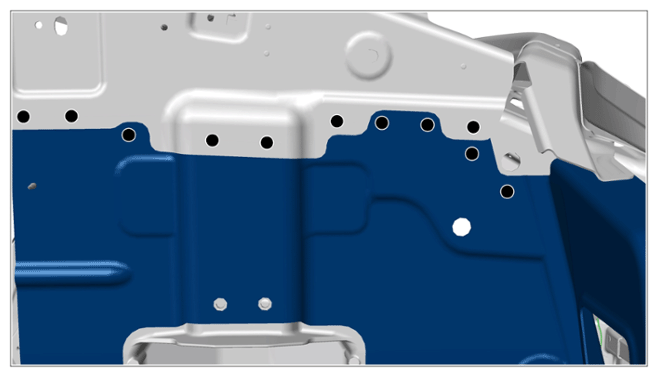

   Blind rivet

8. Screw in self-tapping screw -1-  .

   > 5X00IN24 SETTING SELF-TAPPING SCREWS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

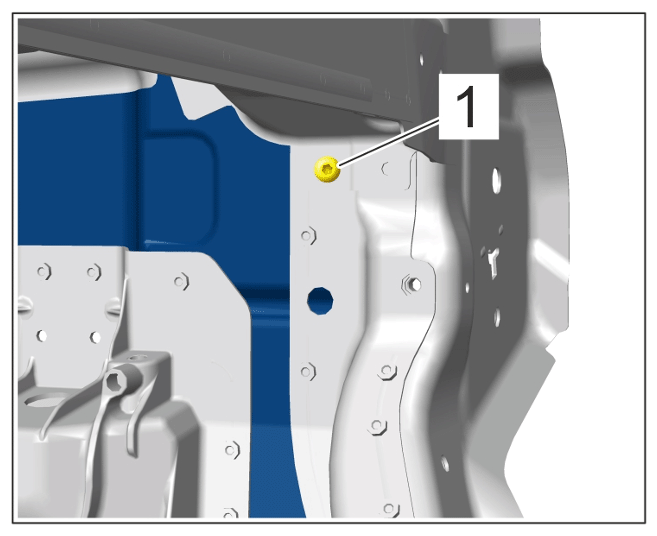

Self-tapping screw
