Removing Side Section-Lower Part

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drill out penetrated joints using > Diameter 4 mm  .

    > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

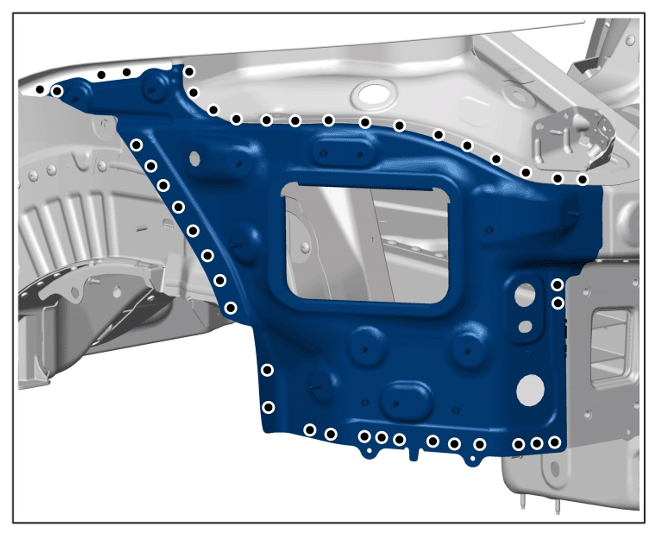

    G15562860Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Penetrated joints

  2. Grind down welded seams -1-  .

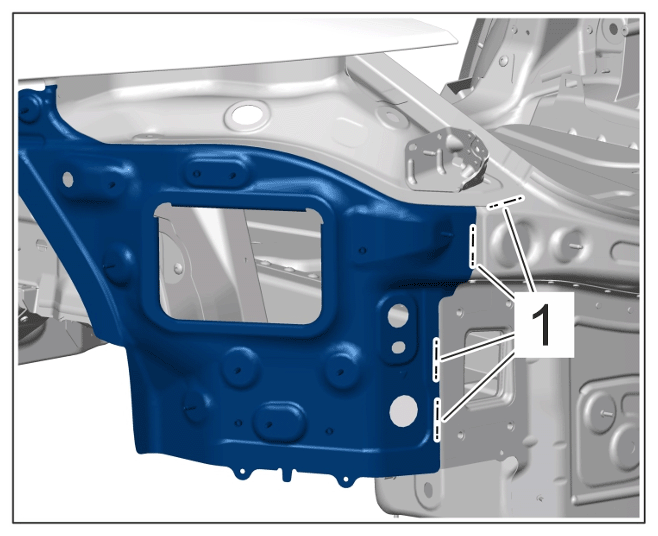

    G15562861Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Welded seams

  3. Heat bonding areas using > V.A.G 1416 - Hot-Air Blower.

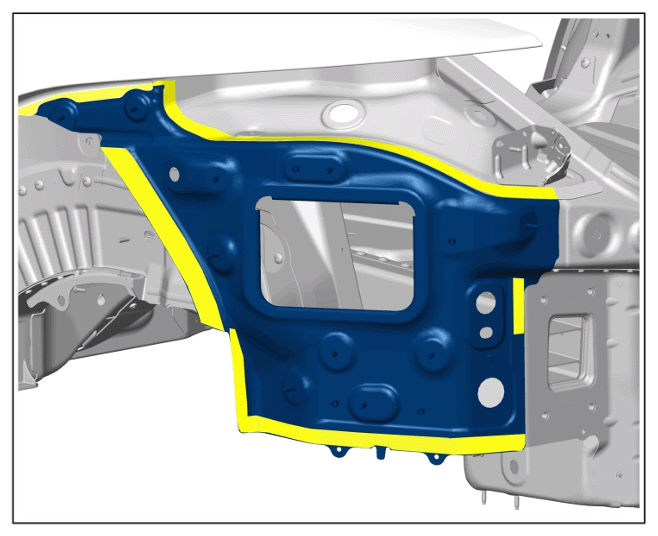

    G15562862Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding areas

  4. Remove side section lower part.
