Preparing Side Section Lower Part For Installation

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Fit side section-lower part and fix to the body.

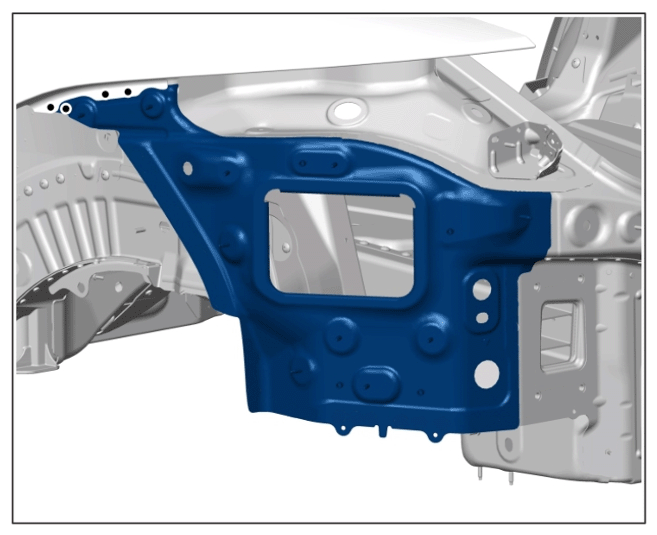

2. Drill bore holes for blind rivets through both sheetmetal panels using > Diameter 6.6 mm  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Blind rivets

3. Drill hole for countersunk blind rivet through both panels using > Diameter 6.5 mm  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Blind rivets

   1. 3.1 Make counterbore at the rivet hole using > VAS 6957 - 100° countersink.

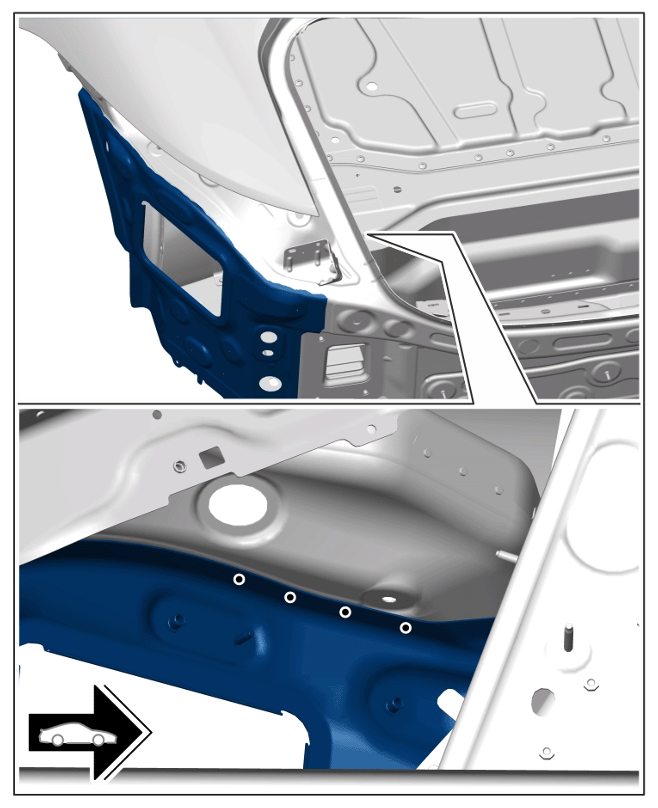

4. Drill bore holes for blind rivets through both sheetmetal panels using > Diameter 6.6 mm  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Blind rivets

5. Remove side section-lower part.
6. Prepare outer side section-lower part for bonding and riveting.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

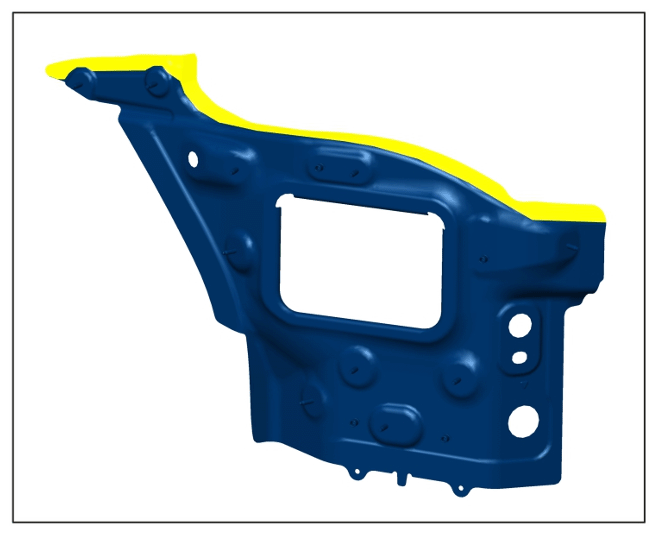

   Outer bonding areas

7. Prepare inner side section-lower part for installation.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Inner joint areas

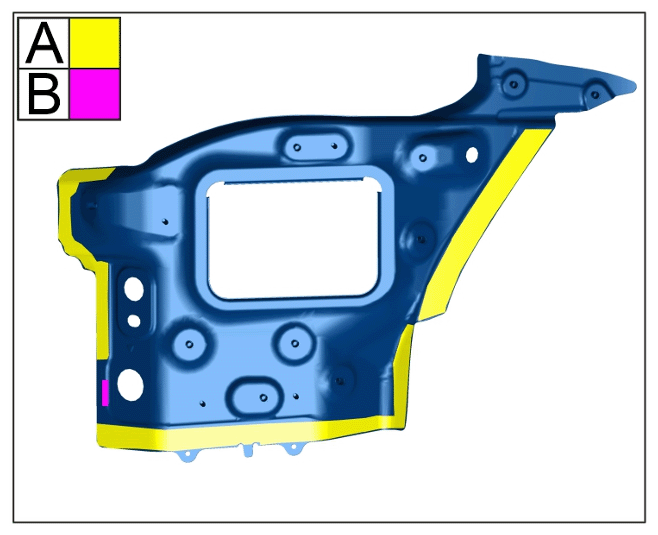

   1. 7.1 Prepare inner side section-lower part in areas -A-  for bonding and riveting.

      > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   2. 7.2 Prepare inner side section-lower part in area -B-  for applying a full aluminium weld.

      > 5X00IN10 WELDING ALUMINIUM
